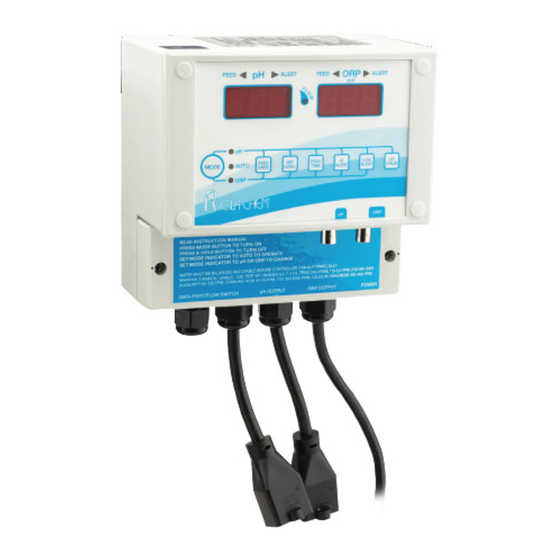

ROLA-CHEM Digital Controller
MODELS RC554XP AND 554000
ORP/pH Digital Controller
pH
FEED
pH
MODE
AUTO
ONCE
ORP
SAVE THESE INSTRUCTIONS
ORP
ALERT
FEED
ALERT
FEED
SET
FEED
HI
LOW
LEVEL
TIME
pH
PN 554135
5/04/2017
Operating Manual
pH
CALIB
ORP
Page: 1 of 20
Advertisement
Table of Contents
Related Manuals for ROLA-CHEM RC554XP
Summary of Contents for ROLA-CHEM RC554XP

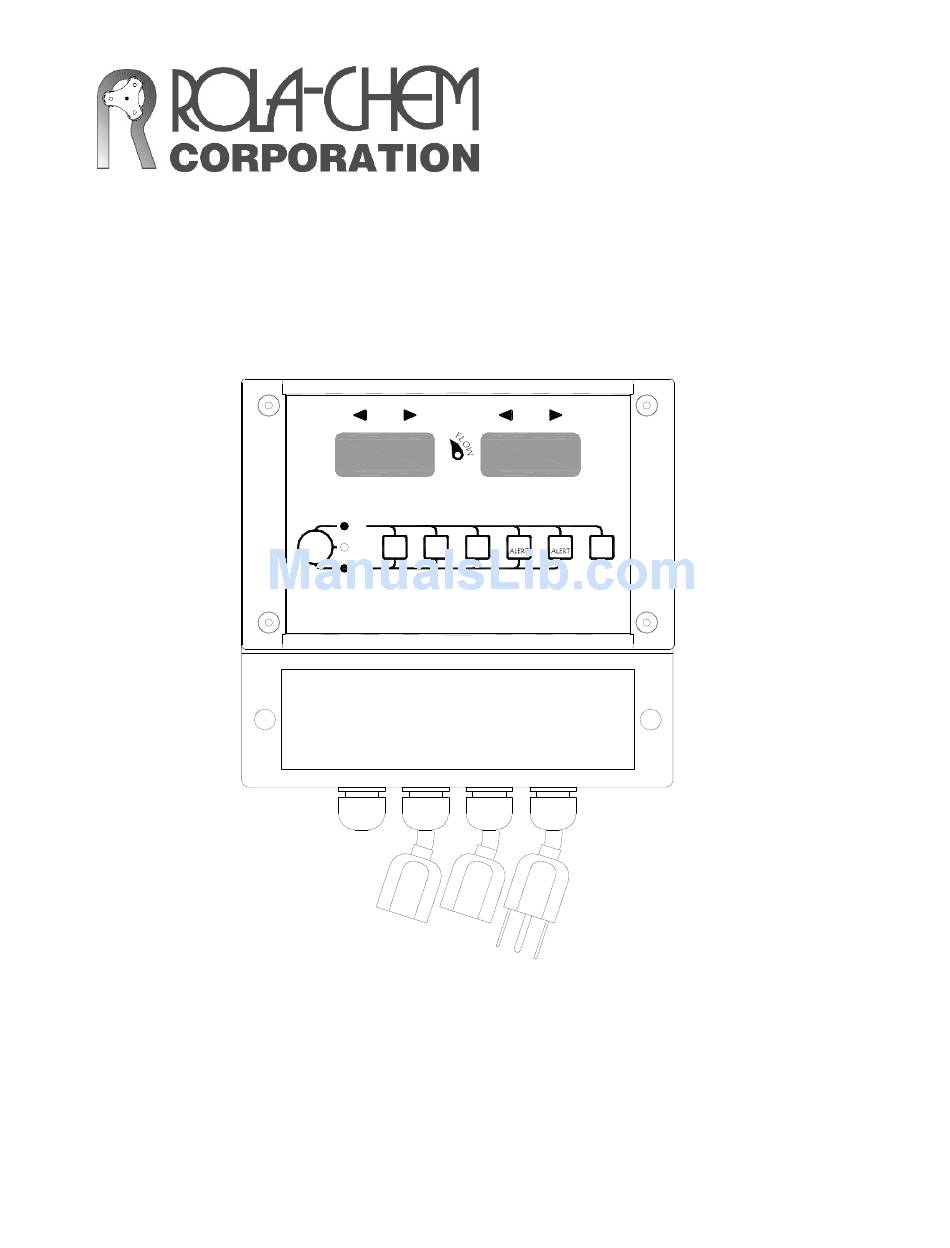

- Page 1 Operating Manual MODELS RC554XP AND 554000 ORP/pH Digital Controller FEED ALERT FEED ALERT FEED FEED MODE AUTO ONCE LEVEL TIME CALIB IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS ROLA-CHEM Digital Controller PN 554135 5/04/2017 Page: 1 of 20...
-
Page 2: Safety Instructions
NSPI recommended ranges or water chemistry must be manually corrected. 1.11 WARNING! Controller uses microprocessor. Wireless communication equipment or other electrical devices operated in close proximity may cause inadvertent actuation of chemical feed pumps. ROLA-CHEM Digital Controller PN 554135 5/04/2017 Page: 2 of 20... -
Page 3: Table Of Contents
5.3 pH Calibration 5.4 ORP settings 5.5 Operating mode 6. Troubleshooting 7. Warranty 8. Appendix 8.1 Dip switch settings 8.2 Factory default settings 8.3 Water chemistry ranges-NSPI 8.4 Typical system installations ROLA-CHEM Digital Controller PN 554135 5/04/2017 Page: 3 of 20... -
Page 4: Quick Start Reference
Other: See the appropriate manual sections for: - setting the Consecutive Feed Alert Limit feature - calibrating the pH sensor - changing dip switches (pH/ORP interlock, Consecutive Feed Alert Limit, acid/base and lockout). ROLA-CHEM Digital Controller PN 554135 5/04/2017 Page: 4 of 20... -
Page 5: Description And Specifications
An internal terminal strip is provided for field wiring of the controller. The internal step-down transformer has a class-two energy limiting rating to provide for electrical safety. ROLA-CHEM Digital Controller PN 554135 5/04/2017 Page: 5 of 20... -
Page 6: Specifications
+ Reset + ORP and pH Interlock + Acid/base feed + Adjustable Consecutive Feed Alert Limit Features and Options + Flow switch input + Individually fused outputs + 120 VAC transformer ROLA-CHEM Digital Controller PN 554135 5/04/2017 Page: 6 of 20... -
Page 7: Description Of Controls
When ORP standby lamp is illuminated the five SET buttons are enabled. 8- pH/ORP SENSOR CONNECTORS – BNC type FEED ALERT FEED ALERT FEED FEED AUTO MODE ONCE LEVEL TIME CALIB ROLA-CHEM Digital Controller PN 554135 5/04/2017 Page: 7 of 20... - Page 8 As the button is pressed the pH readout will scroll through the available HI alert pH levels (7.5 to 8.4 and off). Release the button when the desired level is reached. The Hi Alert cannot be turned off in the BASE feed selection. ROLA-CHEM Digital Controller PN 554135 5/04/2017...
- Page 9 Note: If the ORP reading is out of the pre-set alert range for more than ten (10) minutes the ORP red alert lamp will illuminate and the ORP feeder will be disabled. The system will automatically reset when the alert condition has been cleared by itself or by an operator. ROLA-CHEM Digital Controller PN 554135 5/04/2017...
-
Page 10: Installation
Wall Installed screw Key hole Do not remove front panel Two screws mounted via the Power panel access Controller with power panel access cover removed ROLA-CHEM Digital Controller PN 554135 5/04/2017 Page: 10 of 20... -
Page 11: Power Panel Access
The controller has a flow switch terminal located inside the lower panel on the left side. It is shipped with a jumper in place. The terminal must either have the jumper or a flow switch installed. ROLA-CHEM Digital Controller PN 554135 5/04/2017... -
Page 12: Operation
The pH sensor can drift slightly over time and calibration will offset this drift. Always calibrate using water from the sample port of the flow cell and use an independent pH test method to determine pH value of sample, unless using preset buffer solution. Press and release the ROLA-CHEM Digital Controller PN 554135 5/04/2017... -
Page 13: Orp Settings
The controller must be in this mode for the feeders to maintain the desired parameters. Note: When using the RC554XP or 554000 controller with ROLA-CHEM pumps, the pump switch should be in the CONTINUOUS position (not Timed or Off). -
Page 14: Troubleshooting
* Pump/feeders must be large enough to reach desired set-points in a relatively short time. Automation using controllers may require larger feeder or more concentrated chemicals than system that uses continuous time controlled feeding (i.e. feeders only). ROLA-CHEM Digital Controller PN 554135 5/04/2017... - Page 15 If these two steps are not performed the controller will remain in test mode and it will not operate properly. If an error code continues to appear contact ROLA-CHEM service personnel. 6.5 Digital Display numbers flashing * Consecutive Feed Alert Limit has been reached. See appendix for Consecutive Feed Alert Limit details.
-
Page 16: Warranty
(1) year. If this unit fails within the one (1) year period, it will be repaired or replaced (ROLA-CHEM’s option) at no charge when returned to ROLA-CHEM with proof of purchase receipt. This... -
Page 17: Appendix
The Consecutive Feed Alert Limit period can be set from 20 to 180 minutes on model RC554XP (default is 20) and can be independently set for both pH and ORP. The range on 554000 is 10 to 99 (default is 10). -
Page 18: Factory Default Settings
Free Chlorine: 1.0-3.0 ppm (> 700 mV ORP) *20-30 ppm of cyanuric acid provides approx. 95% of the shielding effect for chlorine. **When using tri-chlor, recommended alkalinity is 95-125 ppm. ROLA-CHEM Digital Controller PN 554135 5/04/2017 Page: 18 of 20... -
Page 19: Typical System Installations
AND VALVE TO HELP KEEP PROTECTION OF HEATER AND CIRCULATION TO CONTROL PROBES MANIFOLD AND PROBES AND INDICATOR THAT POOL TO ENSURE DILUTION OF CLEAR OF DEBRIS. CIRCULATION IS OCCURRING. CHEMICAL INTO POOL. ROLA-CHEM Digital Controller PN 554135 5/04/2017 Page: 19 of 20... - Page 20 **OPTIONAL SAFETY FLOWSWITCH TO AND VALVE TO HELP KEEP ENSURE CIRCULATION TO CONTROL PROTECTION OF EQUIPMENT. MANIFOLD AND PROBES PROBES AND INDICATOR THAT POOL CLEAR OF DEBRIS. CIRCULATION IS OCCURRING. ROLA-CHEM Digital Controller PN 554135 5/04/2017 Page: 20 of 20...
