Model 113B22

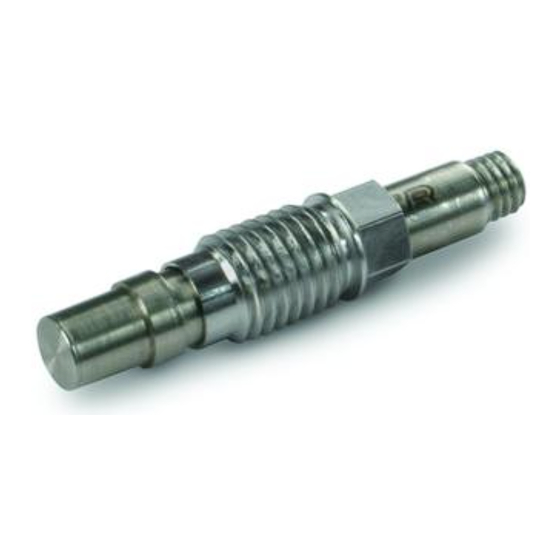

Platinum Stock Products; High frequency ICP® pressure sensor, 5000 psi, 1 mV/psi, 0.218" dia.
diaphragm, accel. comp.
Installation and Operating Manual
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 716-684-0001
24-hour SensorLine: 716-684-0001
Fax: 716-684-0987
E-mail: info@pcb.com
Web: www.pcb.com
Advertisement
Related Manuals for PCB Piezotronics ICP 102 Series
Summary of Contents for PCB Piezotronics ICP 102 Series
- Page 1 Platinum Stock Products; High frequency ICP® pressure sensor, 5000 psi, 1 mV/psi, 0.218" dia. diaphragm, accel. comp. Installation and Operating Manual For assistance with the operation of this product, contact the PCB Piezotronics, Inc. Toll-free: 716-684-0001 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com...
- Page 2 Assistance is needed to safely operate equipment PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T.
- Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
- Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
- Page 5 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
- Page 6 OPERATION MANUAL FOR QUARTZ PRESSURE SENSORS SERIES 102 SERIES 113 INTRODUCTION The figure above shows the components of the basic ® probe, i.e. the piezoelectric element and the This series of miniature dynamic pressure sensors is ® source follower amplifier. These components specifically designed for shock tube and blast wave are joined together as an inseparable sealed assembly measurements and for other applications requiring...
-
Page 7: Installation
OPERATION MANUAL FOR QUARTZ PRESSURE SENSORS SERIES 102 SERIES 113 threaded adaptor with floating clamp nut to allow Common black vinyl electrical tape has been found to adjustment of diaphragm mounting depth where it is be an effective insulating material in many cases. necessary to adapt to various wall thicknesses. - Page 8 Generally, static ICP is a registered trademark of PCB Piezotronics methods are not employed below several hundred seconds time constant. To employ static means, direct couple the sensor to...
- Page 9 All specifications are at room temperature unless otherwise specified. 3425 Walden Avenue, Depew, NY 14043 In the interest of constant product improvement, we reserve the right to change specifications without notice. ® is a registered trademark of PCB Piezotronics, Inc.
- Page 10 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. UPDATED OVERALL LENGTH 53183 ELECTRICAL CONNECTOR 10-32 UNF - 2A...
- Page 11 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. -SEE SHEET 1- ELECTRICAL CONNECTOR 10-32 UNF - 2A MOUNTING HOLE PREPARATION...
