7.0
CAUTIONS
1.
Do not apply voltage to the electrical terminals
without current-limiting protection.
2.
Do not apply more than 30 VDC to the sensor.
3.
Do not put more than 20 mA current into the
input terminals.
4.
Do not overtorque sensors when installing.
5.
Do not apply too much heat to the solder pin
of style 1.
8.0
TERMINAL LEAD AND GROUND
To eliminate any possibility of overheating the solder
terminal and destroying the microamplifier in the
sensor, a 2.0 inch long insulated wire has been
provided on the solder terminal for soldering a
connector lead from the power unit.
return is provided by a metal ribbon (.003 x .020)
welded to the Model 060A04 clamp nut.
ICP is a registered trademark of PCB Piezotronics
Drawing Number: 21106
Revision: NR

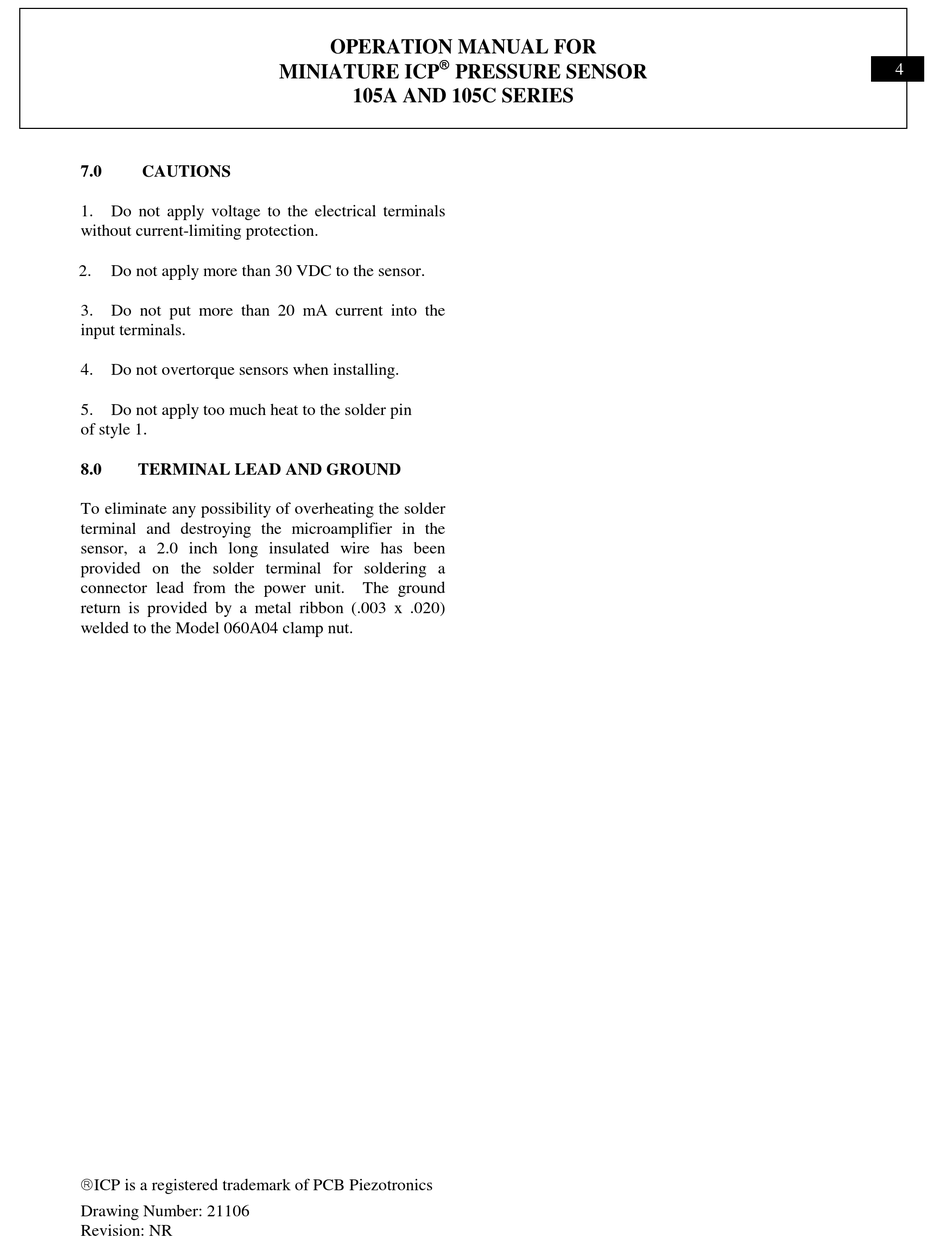

OPERATION MANUAL FOR
MINIATURE ICP
PRESSURE SENSOR
105A AND 105C SERIES
The ground
4
