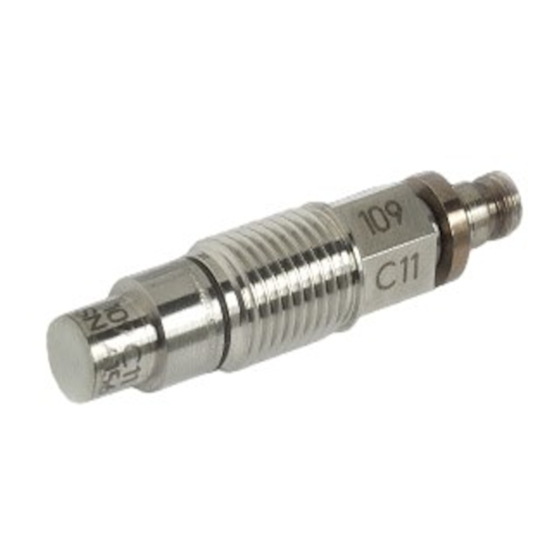

- Page 1 Model 109C11 ICP® Pressure Sensor Installation and Operating Manual For assistance with the operation of this product, contact PCB Piezotronics, Inc. Toll-free: 800-828-8840 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com Web: www.pcb.com...
- Page 2 Returning Equipment – Following the equipment to PCB Piezotronics for these procedures will insure that your repair. User servicing or repair is not returned materials are handled in the recommended and, if attempted, may most expedient manner.
- Page 3 PCB Piezotronics, Inc. Warranty – All equipment and repair 3425 Walden Ave. services provided by PCB Piezotronics, Depew, NY 14043 USA Inc. are covered by a limited warranty Toll-free: (800) 828-8840 against defective...
-
Page 4: Installation
OPERATION MANUAL FOR HIGH PRESSURE SENSORS Models 109A, A02, A11, A12 Models 109B11, B12 This amplifier (actually an impedance converter with INTRODUCTION unity gain) converts the high-impedance level voltage from the quartz package into a low-impedance (100 The Model 109A is an acceleration-compensated high ohms), high-level (6 V-109A, 7 V -109A02) output pressure sensor designed to measure very fast signal. -
Page 5: Recessed Mount
OPERATION MANUAL FOR HIGH PRESSURE SENSORS Models 109A, A02, A11, A12 Models 109B11, B12 This type of mounting protects the sensor diaphragm Model 040A Reamer from the effects of high-flash temperatures and particle impingement due to blast effects, thereby prolonging sensor life. -
Page 6: Installing Cables
OPERATION MANUAL FOR HIGH PRESSURE SENSORS Models 109A, A02, A11, A12 Models 109B11, B12 FLASH TEMPERATURE For air at room temperature, (EQ. 1) becomes: EFFECTS 3000 The ceramic coating on the diaphragm of these (EQ. 2) sensors should render the flash thermal effect insignificant in most cases, especially when recessed mounted. -
Page 7: Circuit Connections
OPERATION MANUAL FOR HIGH PRESSURE SENSORS Models 109A, A02, A11, A12 Models 109B11, B12 CIRCUIT CONNECTIONS Model 484B DC DVM The two following figures show two typical circuit connections normally used with the 109A series to connect to the power units. The first figure is the most often used connection scheme for most applications. -
Page 8: Operation
HIGH PRESSURE SENSORS Models 109A, A02, A11, A12 Models 109B11, B12 ICP is a registered trademark of PCB Piezotronics OPERATION Select desired mode of circuit connection and turn power unit on. Observe fault monitor meter at the front panel of the power unit.
