RadioPRO RP5-GM32 Manual

Introduction & Features

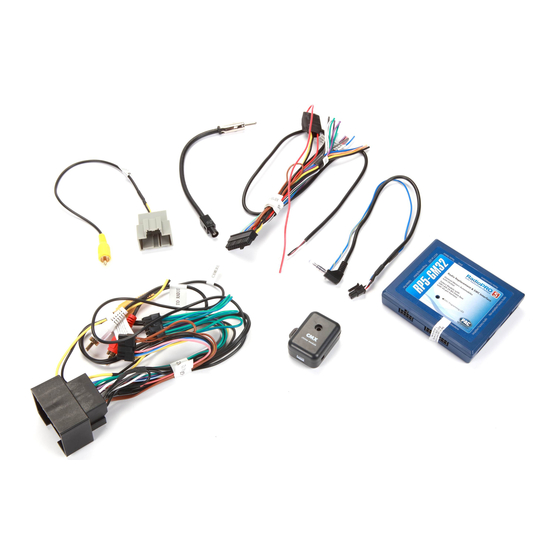

The RP5-GM32 interface allows the replacement of a factory radio in select General Motors vehicles with 29-bit LAN
radios. Using this interface will retain factory features such as OnStar, steering wheel controls (SWC), warning chimes,
Rear Seat Controls (RSC) and the BOSE amplifier when the original radio is removed. Use of this interface also allows
you to program two radio functions to each SWC button by using short press long press dual command functionality.
The RP5-GM32 also provides data bus driven outputs such as retained accessory power (RAP), vehicle speed sensor
(VSS), illumination, reverse trigger and parking brake.
Important Notes
1. The radio select rotary switch on the side of the interface must be adjusted to the proper radio setting before plugging the
interface into the vehicle (see next page for setting chart).
2. The interface comes pre-programmed for all of the vehicles factory SWC functions and does not require programming unless
you wish to re-assign the SWC functions or utilize short press long press dual command functionality. The SWC can always be
restored to default settings by following the procedure outlined on page 3.
3. RSC buttons that are identical to the SWC will mimic the SWC one for one.
4. The LED will flash whenever a SWC button is pressed.
Wiring Connection Chart
Aftermarket Radio Connections
Yellow Battery +12v
Black Ground
Red Accessory Output
White Front L + input
White / Black Front L - input
Grey Front R + input
Grey / Black Front R - input
Green Rear L + input
Green / Black Rear L - input
Purple Rear R + input
Purple / Black Rear R - input
Illustration / Schematic
Vehicle
Connections
Pacific Accessory Corporation
Light Green
Pink
Blue / White
Blue
Orange / White
Purple/White
Brown Loop
Wiring
Pacific Accessory Corporation
Pacific Accessory Corporation
©2016 Pacific Accessory Corporation
Radio Replacement & Steering Wheel Control Interface
with OnStar Retention for General Motors Vehicles
Parking Brake
Output (-)
Vehicle Speed
Output
Not Used
Not Used
Illumination Output
(+)
Reverse Output (+)
Mute Loop - See
installation note 7
Aftermarket
Radio
Connections
| Ph. 866-931-8021 | support@pac-audio.com
®
www.pac-audio.com
RP5-GM32
SWC Connector
Kenwood, Newer
Blue/Yellow
Alpine, JVC,
Clarion, Pioneer,
Sony, Fusion, Boyo,
3.5mm Jack
Dual, Lightning
Audio, Visteon or
x3
SWC Connection
SWC Connection
See above chart for
different radio type
connections
JVC
Advent
Rev. 022516
Page 1
