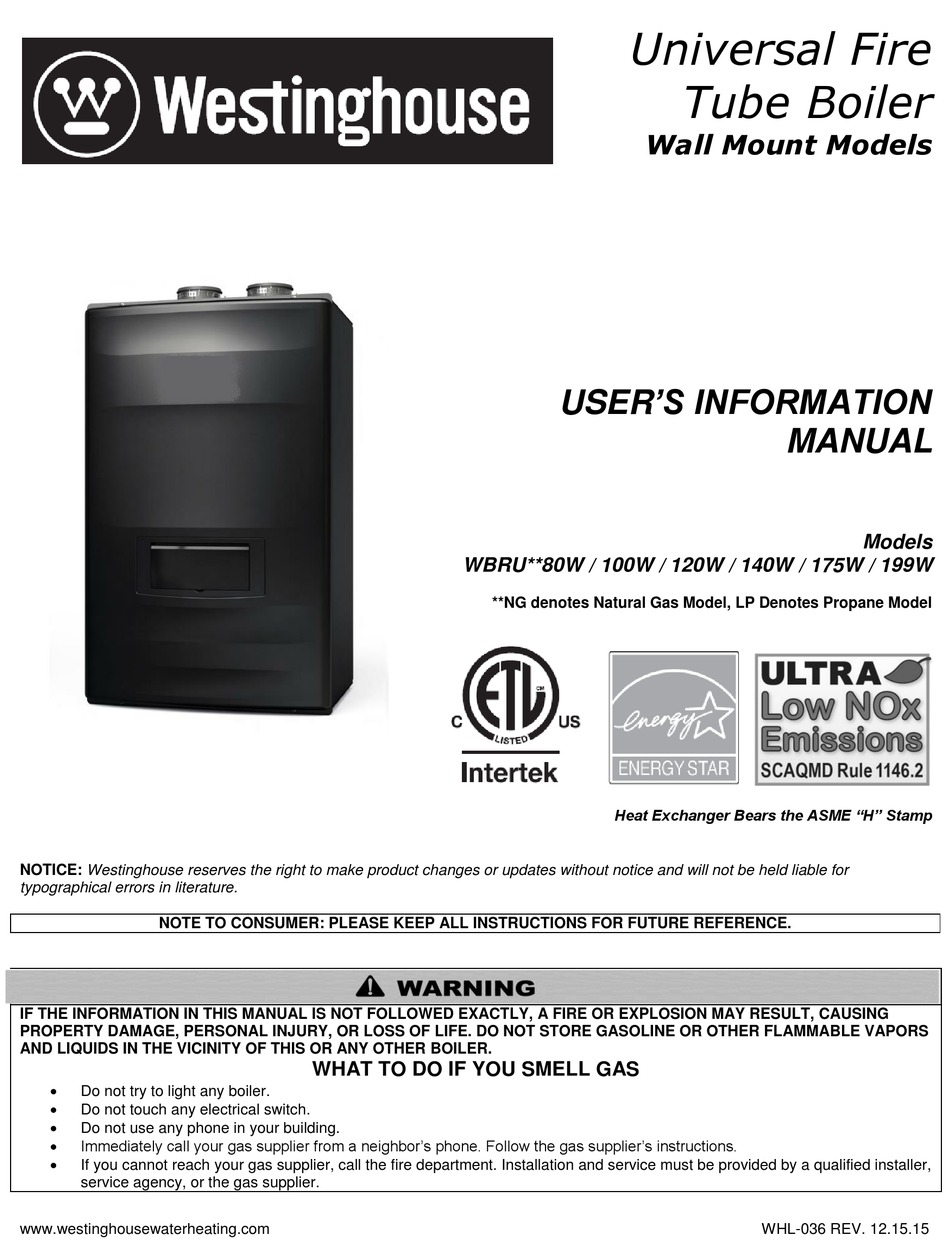

Westinghouse WBRU 100W Series User's Information Manual

Universal fire tube boiler
Hide thumbs Also See for WBRU 100W Series:
Table of Contents

Advertisement

Quick Links

NOTICE: Westinghouse reserves the right to make product changes or updates without notice and will not be held liable for
typographical errors in literature.
NOTE TO CONSUMER: PLEASE KEEP ALL INSTRUCTIONS FOR FUTURE REFERENCE.
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT, CAUSING
PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE. DO NOT STORE GASOLINE OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER BOILER.
Do not try to light any boiler.
Do not touch any electrical switch.
Do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire department. Installation and service must be provided by a qualified installer,
service agency, or the gas supplier.
www.westinghousewaterheating.com
WBRU**80W / 100W / 120W / 140W / 175W / 199W
WHAT TO DO IF YOU SMELL GAS
Universal Fire
Wall Mount Models
USER'S INFORMATION
**NG denotes Natural Gas Model, LP Denotes Propane Model
Heat Exchanger Bears the ASME "H" Stamp
Tube Boiler
MANUAL
WHL-036 REV. 12.15.15
Models

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBRU 100W Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Westinghouse WBRU 100W Series

Summary of Contents for Westinghouse WBRU 100W Series

  • Page 1 **NG denotes Natural Gas Model, LP Denotes Propane Model Heat Exchanger Bears the ASME “H” Stamp NOTICE: Westinghouse reserves the right to make product changes or updates without notice and will not be held liable for typographical errors in literature.
  • Page 2 The following defined terms are used throughout this manual to bring attention to the presence of hazards of various risk levels, or to important product information. DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PART 1 – PRODUCT AND SAFETY INFORMATION ..........................4 A. BEFORE OPERATION ..................................4 B. DURING OPERATION ..................................5 C. TROUBLESHOOTING AND GENERAL CAUTIONARY STATEMENTS ................... 5 PART 2 – MAINTENANCE ..................................6 A. SERVICE TECHNICIAN ..................................6 B.

  • Page 4: Part 1 - Product And Safety Information

    PART 1 – PRODUCT AND SAFETY INFORMATION USER – Have this boiler serviced/inspected by a qualified service technician annually. TO TURN OFF GAS TO THE BOILER Set the thermostat to the lowest setting. Turn off all electrical power to the boiler. Turn manual gas shutoff valve to “OFF”.

  • Page 5: During Operation

    C. TROUBLESHOOTING AND GENERAL CAUTIONARY STATEMENTS DO NOT use this boiler for any purposes other than those specifically described by Westinghouse (to provide central heating and domestic hot water). Using this boiler for unapproved purposes WILL VOID the warranty, and could result in property damage, serious personal injury, or death.

  • Page 6: Part 2 - Maintenance

    Ensure each zone valve connected to the boiler is open while the boiler is operating. Doing so ensures proper heating system operation. DO NOT wipe the boiler or control panel with a wet cloth. Doing so may result in an electric shock, substantial property damage, premature boiler failure, severe personal injury, or death.

  • Page 7: Owner Maintenance

     Check burner flame pattern (stable and uniform). Additional Items if Combustion or Performance is Poor  Clean heat exchanger and flue ways.  Remove burner assembly and clean burner head using compressed air only. Once the maintenance items are completed, the service technician should review service with the owner. B.

  • Page 8: Monthly Maintenance - To Be Performed By Owner

    Check the Status of the Control Panel Observe the Control Panel to ensure the boiler is powered on, and to check for any error codes. Clear any debris from the panel. Check Exhaust Vent and Intake Pipe Terminations Verify that the boiler exhaust vent and intake pipe terminations are clean and free of obstructions. Remove any debris from the exhaust vent or intake pipe openings.

  • Page 9: Annual Maintenance - Only To Be Performed By A Qualified Service Technician

     Read the pressure gauges to ensure the system is pressurized. Check the CH loop pressure gauge. Normal CH pressure will range from 15 – 30 psi. Boiler will not operate if pressure is lower than 15 psi.  Lift the relief valve top lever slightly, allowing water to relieve through the valve and discharge piping. ...

  • Page 10: Maintenance Notes

    MAINTENANCE NOTES WHL-036 REV. 12.15.15...
  • Page 11 WHL-036 REV. 12.15.15...
