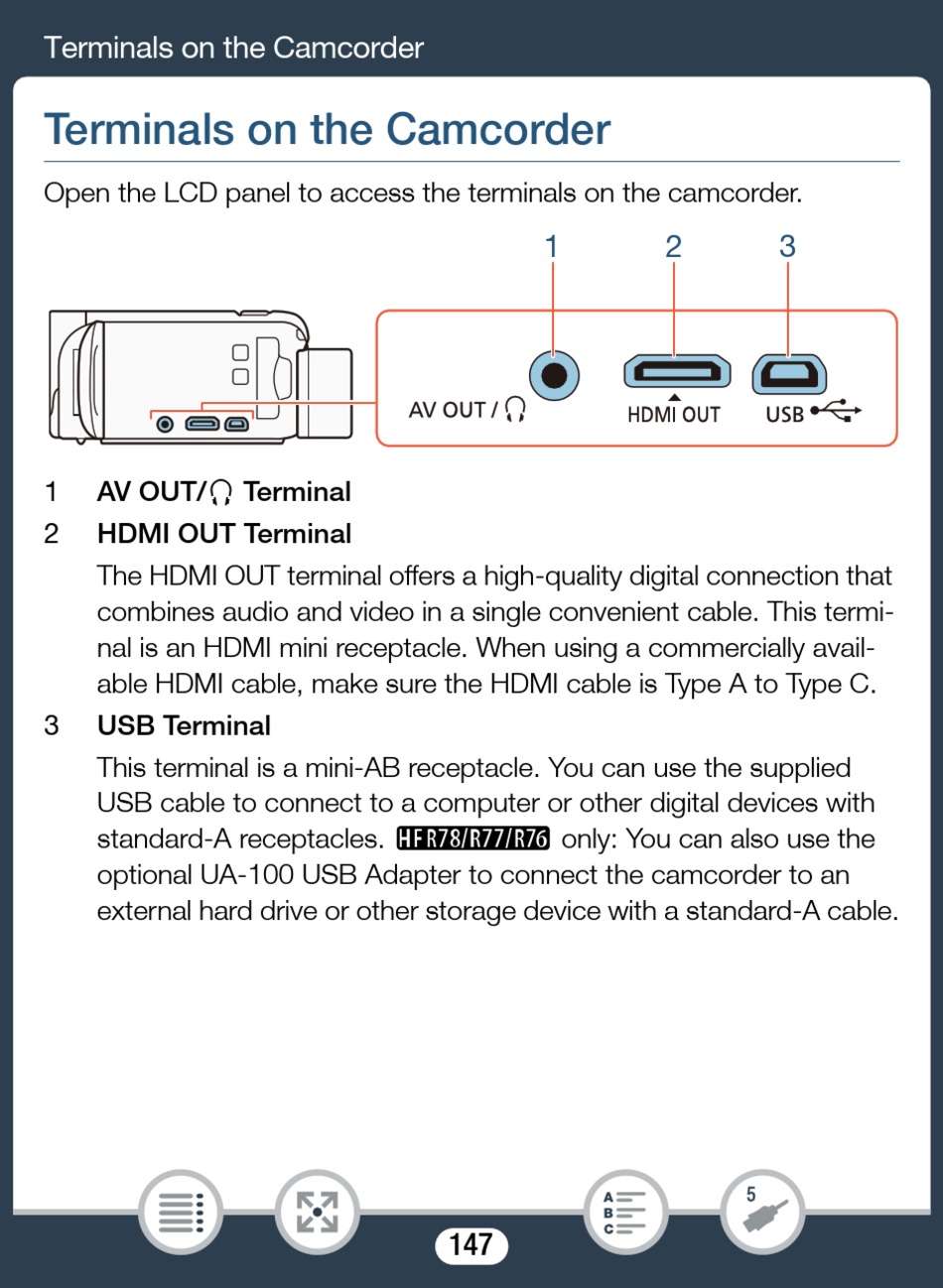

Terminals on the Camcorder

Terminals on the Camcorder
Open the LCD panel to access the terminals on the camcorder.
1 AV OUT/× Terminal
2 HDMI OUT Terminal
The HDMI OUT terminal offers a high-quality digital connection that
combines audio and video in a single convenient cable. This termi-
nal is an HDMI mini receptacle. When using a commercially avail-
able HDMI cable, make sure the HDMI cable is Type A to Type C.
3 USB Terminal
This terminal is a mini-AB receptacle. You can use the supplied
USB cable to connect to a computer or other digital devices with
standard-A receptacles. R only: You can also use the
optional UA-100 USB Adapter to connect the camcorder to an
external hard drive or other storage device with a standard-A cable.
1
147
2 3
