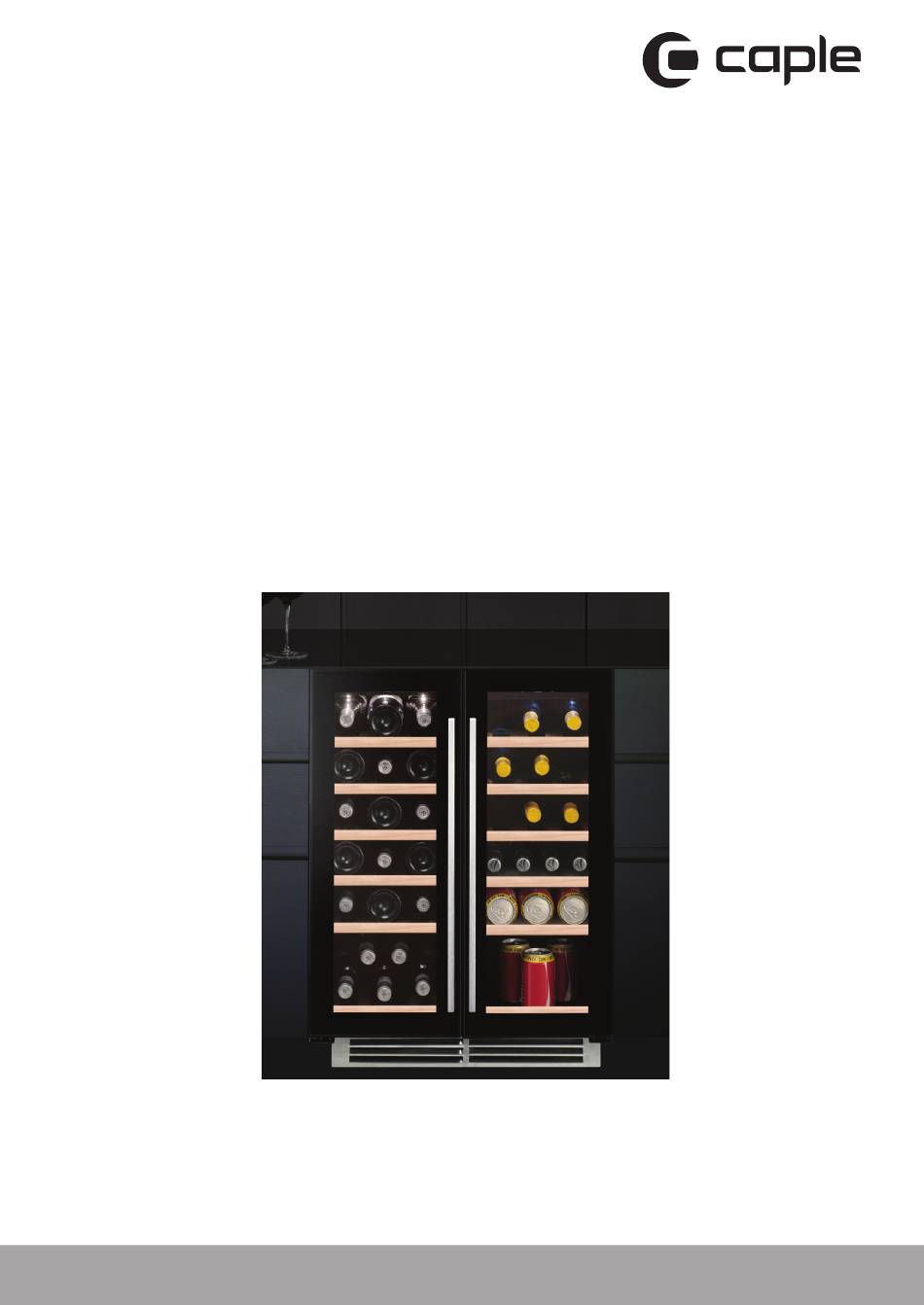

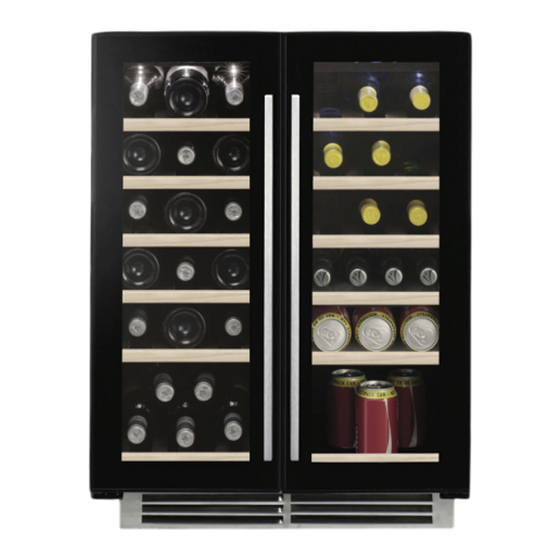

- Page 1 WI6233 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
CONTENTS Important safety instructions Installation instructions Before using your wine cabinet Operating and setting the temperature Control Panel Using the shelves Installing the bar handle Fitting a kitchen plinth Wine bottle stacking Installation dimensions Fixing the top fixing bracket Using the foot sliders Care and maintenance Troubleshooting guide Defrosting/condensation... - Page 3 This manual contains installation advice, usage instructions and other important facts about your Caple Wine Cabinet. If treated with care your Caple Wine Cabinet will give you many years of trouble free use.
- Page 4 - If the supply cord is damaged, it must be replaced by a Caple service agent or a similarly qualified person in order to avoid a hazard. - This product is not designed for commercial use, it is a household appliance only.
- Page 5 - This appliance is intended to be used exclusively for the storage of wine. IMPORTANT Caple cannot be held liable for any non compliance with these instructions. ELECTRICAL SHOCK HAZARD To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions: - Read all instructions before using the wine cabinet.
- Page 6 - The refrigerant of this appliance is R600a, flammable and explosive articles should not be put in or near the cabinet, to avoid the risk of fire or explosion. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or...
- Page 7 ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
-
Page 8: Installation Instructions
INSTALLATION Before using your wine cabinet - Remove the exterior and interior packing. - IMPORTANT: Before connecting the wine cabinet to the power source, let it stand upright for at least 12 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. - Page 9 Do not under any circumstances cut or remove the third (ground) pin from the plug. Any questions concerning power and/or grounding should be directed toward a certified electrician or Caple service. WARNING: INCORRECT EARTHING CAN RESULT IN THE RISK OF ELECTRIC SHOCK...
-
Page 10: Operating And Setting The Temperature
OPERATING YOUR WINE CABINET Please use the cabinet within ambient temperatures between 16-32ºC, if the ambient temperature is higher or lower than this, it will cause the temperature to fluctuate in the cabinet, possibly preventing it from reaching 5-18ºC SETTING THE TEMPERATURE Set the desired cooling temperature by pressing the keys. -
Page 11: Control Panel
Control panel CONTROL PANEL Indicator light illuminates to signify the cooling mode is currently in operation “ ” • Indicator light illuminates to signify the cooling mode is currently in operation. TOUCH CONTROL KEYS “ ”Button • Used to switch the internal light on/off. Used to switch the internal light on/off “... -
Page 12: Using The Shelves
If inner temperature is lower than 0°C, “LO” is sho alarm sounds and the malfunction indicator lights a mperature Alarm Visit our Caple website to view a ‘How to video’ on this. www.caple.co.uk er temperature is higher than 23°C, “HI” is shown in the... -
Page 13: Installing The Bar Handle
Remove the door gasket on the drilled holes side by pulling from the top corner. (see below drawing). Fix the handle to the screws and push the gasket back into place. Visit our caple website to view a ‘How to video’ at www.caple.co.uk Please keep this instruction manual for future reference Instruction manual Wi6233... -
Page 14: Fitting A Kitchen Plinth
FITTING A KITCHEN PLINTH This model is also supplied with a slot on plinth grille if the previous method/grille is not preferred. A H75mm vent slot is required in the plinth to ensure air is able to ventilate correctly. See diagram below Please keep this instruction manual for future reference Instruction manual Wi6233... -
Page 15: Wine Bottle Stacking
WINE BOTTLE STACKING Stores max. 38 Bordeaux style bottles 750ml. Please note, if you wish to store other style bottles i.e champagne, the removal of Please keep this instruction manual for future reference Instruction manual Wi6233... -
Page 16: Installation Dimensions
Installation dimensions INSTALLATION DIMENSIONS INSTALLATION DIMENSIONS min 825mm min 825mm 820-885mm 716mm Fixing the top fixing bracket After installing open the door, and fix this in p using a screwd Fixing the top fixing bracket FIXING THE TOP FIXING BRACKET surface/kitchen a) Top fix b) Kitchen... -
Page 17: Using The Foot Sliders
USING THE FOOT SLIDERS If you want to adjust the height over 820mm, please install the product using the foot sliders provided. These are provided to help prevent the feet catching on the floor when sliding the appliance into the aperture. Place the back foot in the location marked ‘Back’... -
Page 18: Care And Maintenance
CARE AND MAINTENANCE Cleaning your wine cabinet - Turn off the power, unplug the appliance, and remove all items including shelves and rack. - Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to 2 pints of water. - Wash the shelves with a mild detergent solution. - Page 19 Moving your wine cabinet - Remove all items. - Securely tape down all loose items (shelves) inside your appliance. - Wind the adjustable legs up to the base to avoid damage. - Tape the door shut. - Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.
-
Page 20: Troubleshooting Guide
The gasket is dirty. The shelves are out of position. If the above table has not solved the problem please contact Caple Service by phone on 0119 938 7420 or by email service@caple.co.uk Please keep this instruction manual for future reference... -
Page 21: Defrosting/Condensation
DEFROSTING/CONDENSATION Your wine cabinet is designed with an “Auto-cycle” defrost system. When the RUN cycle is OFF, the refrigerated surface of the wine cabinet (interior rear wall) defrosts automatically. The defrosted water is channelled into a drain pan which is located at the back of the cabinet next to the compressor from where it evaporates. - Page 22 TECHNICAL DATA Model Brand: CAPLE Reference: Wi6233 Category of household refrigerating appliance :2 Supply 220-240V~ 50Hz Dimension (WxDxH cm) 59.5 x 57.7 x 82 cm Weight (kg) 50kg Energy efficiency class Annual Energy 195 kWh of energy per annum calculated on the basis of the Consumption (AEC) result obtained for 24h in standard test consumption.
- Page 23 Please keep this instruction manual for future reference Instruction manual Wi6233...
- Page 24 Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk Please keep this instruction manual for future reference Instruction manual Wi6233...
