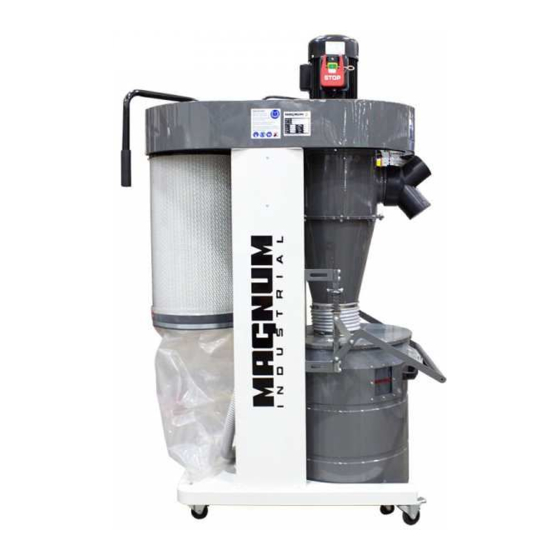

- Page 1 MODEL NO.: MI-12250、MI-12350 MI-12450、MI-12550 MI-12553 MI-12350 MI-12250 2HP / 220V / 1Ph 1.5HP / 115V / 1Ph MI-12550 5HP / 220V / 1Ph MI-12450 MI-12553 3HP / 220V / 1Ph 5HP / 220V / 3Ph OPERATING MANUAL...
-
Page 2: Important Safety Rules
IMPORTANT SAFETY RULES Wood working can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there are certain hazards involved with the operation of the product. Using the machine with respect and caution will considerably lessen the possibility of personal injury. -
Page 3: Important Safety Rules For Dust Collectors
IMPORTANT SAFETY RULES FOR DUST COLLECTORS WARNING: Basic precautions should be followed when using your dust collector. To reduce the risk of injury, electrical shock or fire, comply with the safety rules listed below: 1. READ and understand the instruction manual before operating the dust collector. 2. -
Page 4: Grounding Instructions
GROUNDING INSTRUCTIONS The appliance must be grounded, if it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric current to reduce the risk of electric shock. This appliance is equipped with a cord having equipment-ground conductor and grounding plug. - Page 5 1. Attach (4) 2 1 ⁄ 2" locking swivel casters to bottom of base, and secure each caster with (4) 5 ⁄ 16" x 1 ⁄ 2" flange bolts. MI-12550 MI-12250 / MI-12350 / MI-12450 2. Attach each support leg to base,and finger-tighten with 5 ⁄ 16” x 3 ⁄ 4” button head socket screw and 5 ⁄...
- Page 6 MI-12450 MI-12550...
- Page 7 4. With help of two assistants, lift impeller housing onto support legs, Secure impeller housing to sup- port legs with(8) 5⁄ 16” x 1⁄ 2” button head screws and(8) 5 ⁄ 16” fender washers, fully tighten all fas- teners installed in Steps 2–4. MI-12250 / MI-12350 / MI-12450 MI-12550 5.
- Page 8 6. Attach intake barrel to impeller housing with (8) 5 ⁄ 16” x 3/4” flange bolts. (MI-12250 / MI-12350 / MI-12450) MI-12250 / MI-12350 / MI-12450 MI-12550 7. Attach cyclone funnel to intake barrel, using 5 ⁄ 16” x 3/4” flange bolts and 5 ⁄ 16” flange nuts...
- Page 9 8. Secure lock handle guides to support legs. 9. Using fasteners attached to spring bracket,place upper end of drum lock handle over outer stud on spring bracket, then attach lock handle link to lower hole on lock handle. With collection drum lid mounting brackets facing up, orient lid so dust port, flexible hose,and spring brackets align.
- Page 10 10. Attach flexible hose 8” to cyclone funnel and cyclone funnel then secure with hose clamp. 11. Attach intake barrel cover to each support leg with (8)1 ⁄ 4” x 1 ⁄ 2” button head socket screw. MI-12350 / MI-12450 MI-12550...
- Page 11 12. Attach 2” swivel casters to collection drum,using (1) 5 ⁄ 16” hex nut on each. Adjust pre-installed flange nut and hex nut until drum rolls evenly without rocking or wobbling, then tighten both nuts to secure caster in place. 13.
- Page 12 15. While assistant holds canister filter under impeller housing, reach into impeller housing and attach canister filter to impeller housing with 5 ⁄ 16” x 3/4” flange bolts. 16. Insert filter handle spindle so one of two M6 x 16 cap screw tips aligns with flat on side of filter paddle spindle, then tighten both cap screws to secure spindle.
- Page 13 18. Install filter cleaning handle on spindle so that M6 x 16 hex bolt tip aligns with spindle flat,then tighten hex bolt. 19. Attach plastic filter bag to canister filter and secure with bag clamp. 20. Install inlet adapter on dust port and secure with 3 ⁄ 16” x 3 ⁄ 8” flange screw. 21.
- Page 14 PARTS LIST FOR MI-12250...
- Page 15 PARTS LIST FOR MI-12250...
- Page 16 PARTS LIST FOR MI-12250 MI-12250-01 MI-12250-38 BASE CAP SCREW M6-1 X 30 LH MI-12250-02 MI-12250-39 IMPELLER HOUSING COLLECTION DRUM GASKET MI-12250-03 MI-12250-40 COLLECTION DRUM HOSE CLAMP 1-3/4" MI-12250-04 MI-12250-41 INTAKE BARREL VACUUM HOSE 1-1/2" X 67" MI-12250-05 MI-12250-42 CYCLONE FUNNEL HOSE CLAMP 7-1/2"...
- Page 17 PARTS LIST FOR MI-12250 MI-12250-56 PARTS LIST FOR MI-12250-56 Description MI-12250-56-01 SLIDING BRACKET MI-12250-56-02 COMPRESSION SPRING 3 X 33 X 70 MI-12250-56-03 COPPER PLATE MI-12250-56-04 SPRING RETAINER MI-12250-56-05 LOCK HANDLE LINK MI-12250-56-06 FLAT WASHER 3/8 PLASTIC MI-12250-56-07 LOCK NUT 5/16-18 MI-12250-56-08 WASHER 5／16'' MI-12250-56-09...
- Page 18 PARTS LIST FOR MI-12250 MI-12250-53 PARTS LIST FOR MI-12250-53 i r c i t p MI-12250-53-01 CANISTER FILTER MI-12250-53-02 BEARING RETAINER, LOWER MI-12250-53-03 SLEEVE BEARING 12 X 14 X 6MM MI-12250-53-04 FILTER PADDLE SPINDLE MI-12250-53-05 PADDLE SPINDLE BRACKET MI-12250-53-06 WASHER 1/4 MI-12250-53-07 PHLP HD SCR M6-1 X 10 MI-12250-53-08...
- Page 19 PARTS LIST FOR MI-12350...
- Page 20 PARTS LIST FOR MI-12350...
- Page 21 PARTS LIST FOR MI-12350 Description Description MI-12350-01 MI-12350-38 BASE CAP SCREW M6-1 X 30LH MI-12350-02 MI-12350-39 IMPELLER HOUSING COLLECTION DRUM GASKET MI-12350-03 MI-12350-40 COLLECTION DRUM HOSE CLAMP 1-3/4" MI-12350-04 MI-12350-41 INTAKE BARREL VACUUM HOSE 1-1/2" X 67" MI-12350-05 MI-12350-42 CYCLONE FUNNEL HOSE CLAMP 8-1/2"...
- Page 22 PARTS LIST FOR MI-12350 MI-12350-55 PARTS LIST FOR MI-12350-55 MI-12350-55-01 MI-12350-55-02 COMPRESSION SPRING 3 X 33 X 70 MI-12350-55-03 MI-12350-55-04 MI-12350-55-05 LOCK HANDLE LINK MI-12350-55-06 FLAT WASHER 3/8 PLASTIC MI-12350-55-07 MI-12350-55-08 WASHER 5／ ' ' 6 MI-12350-55-09 HEX BOLT 5/16-18 X 1-3/4 MI-12350-55-10 HEX BOLT 5/16-18 X 1-1/4 MI-12350-55-11...
- Page 23 PARTS LIST FOR MI-12350 MI-12350-52 PARTS LIST FOR MI-12350-52 MI-12350-52-01 MI-12350-52-02 BEARING RETAINER, LOWER MI-12350-52-03 SLEEVE BEARING 12 X 14 X 6MM MI-12350-52-04 FILTER PADDLE SPINDLE MI-12350-52-05 PADDLE SPINDLE BRACKET MI-12350-52-06 MI-12350-52-07 PHLP HD SCR M6-1 X 10 MI-12350-52-08 PHLP HD SCR M5-0.8 X 8 MI-12350-52-09 PHLP HD SCR M5-0.8 X 15 MI-12350-52-10...
- Page 24 PARTS LIST FOR MI-12450...
- Page 25 PARTS LIST FOR MI-12450...
- Page 26 PARTS LIST FOR MI-12450 Description Description MI-12450-01 BASE MI-12450-32 MAG SWITCH WITH TIMER AND REMOTE CONTROL MI-12450-02 SUPPORT LEG(RIGHT) MI-12450-33 RUBBER GASKET MI-12450-34 MI-12450-03 IMPELLER HOUSING BEARING RETAINER, LOWER MI-12450-04 COLLECTION DRUM MI-12450-35 PADDLE HANDLE SPINDLE MI-12450-05 INTAKE BARREL MI-12450-36 VACUUM HOSE 1-1/2"...
- Page 27 PARTS LIST FOR MI-12450 MI-12450-59 PARTS LIST FOR MI-12450-59 MI-12450-59-01 SLIDING BRACKET MI-12450-59-02 COMPRESSION SPRING 3 X 33 X 70 MI-12450-59-03 COPPER PLATE MI-12450-59-04 SPRING RETAINER MI-12450-59-05 LOCK HANDLE LINK MI-12450-59-06 FLAT WASHER 3/8 PLASTIC MI-12450-59-07 LOCK NUT 5/16-18 MI-12450-59-08 WASHER 5／16'' MI-12450-59-09 HEX BOLT 5/16-18 X 1-3/4...
- Page 28 PARTS LIST FOR MI-12450 MI-12450-08 PARTS LIST FOR MI-12450-08 MI-12450-08-01 CANISTER FILTER MI-12450-08-02 BEARING RETAINER, LOWER SLEEVE BEARING 12 X 14 X 6MM MI-12450-08-03 MI-12450-08-04 FILTER PADDLE SPINDLE MI-12450-08-05 PADDLE SPINDLE BRACKET MI-12450-08-06 WASHER 1/4 MI-12450-08-07 PHLP HD SCR M6-1 X 10 MI-12450-08-08 PHLP HD SCR M5-0.8 X 8 MI-12450-08-09...
- Page 29 PARTS LIST FOR MI-12550 / MI-12553...
- Page 30 PARTS LIST FOR MI-12550 / MI-12553...
- Page 31 PARTS LIST FOR MI-12550 / MI-12553 Description Description MI-12550-01 IMPELLER HOUSING MI-12550-35 HOSE CLAMP 1-3/4" MI-12550-02 BASE MI-12550-36 IMPELLER 16" MI-12550-03 SUPPORT LEG(RIGHT) MI-12550-37 FLEX HOSE 12" MI-12550-04 CYCLONE FUNNEL MI-12550-38 REINFORCEMENT BOARD MI-12550-05 COLLECTION DRUM LID MI-12550-39 MAG SWITCH WITH REMOTE CONTROL 5HP 220V 1-PH...
- Page 32 PARTS LIST FOR MI-12550 / MI-12553 MI-12550-54...
- Page 33 PARTS LIST FOR MI-12550 / MI-12553 MI-12550-11 PARTS LIST FOR MI-12550-11 MI-12550-11-01 CANISTER FILTER MI-12550-11-02 BEARING RETAINER, LOWER MI-12550-11-03 SLEEVE BEARING 12 X 14 X 6MM MI-12550-11-04 FILTER PADDLE SPINDLE MI-12550-11-05 PADDLE SPINDLE BRACKET MI-12550-11-06 WASHER 1/4 MI-12550-11-07 PHLP HD SCR M6-1 X 10 MI-12550-11-08 PHLP HD SCR M5-0.8 X 8...
