Resolution RE508XC Installation Manual

Features
• Selectable wireless panel compatibility
• Rechargeable backup battery
• Automatic zone polarity and end of line detection
• Battery backed 12VDC output for powered zones
• Cover tamper
• Certified to UL1023, ULC1023, UL1610, and ULC S304
Quick Setup
1
MOUNT AND WIRE
A Select a mounting position and location.
B Wire the zones.
C Connect 12VDC output to powered zones, if any.
D Connect the power supply to the translator.
• Translator has a 90 second lockout after power up.
2
TRANSLATOR CONFIGURATION
A Select the brand of panel that the translator must
talk to using the "PANEL SELECT" knob.
B Configure Zones.
• No zone configuration is necessary for installations with normally
closed zones that don't require tamper detection.
• Installations with other zone types: Refer to the Advanced Setup, step 2.
3
PANEL ENROLLMENT
A Enroll Translator into Panel.
• Trip the translator tamper to enroll the translator into the panel (For Honeywell® and 2GIG® panels select loop 1).
-or-
• Enter translator ID into panel. The translator's base ID is printed on the bar code label and ends with a 0.
B Enroll Zones into panel (not required for Cryptix® Installations)
• With the cover open, trip each zone to enroll into to the panel (For Honeywell® and 2GIG® panels select loop 1).
-or-
• Enter ID into panel. The zone ID is the translator's base ID with the last digit replaced with zone number 1-8.
C Finish setup of each zone at the panel.
4 FINISH
A Close the cover. Test and verify proper operation of the sensors at the panel.
B Cut the lock wire to lock the translator (For more information on locking, refer to Advanced Setup, step 4).
C Secure cover with screw.
INSTALLATION VIDEOS and PRODUCT INFORMATION:
Installation Guide: RE508X & RE508XC Hardwire to Wireless Translators™
(For full zone enrollment instructions, refer to Advanced Setup, step 3)

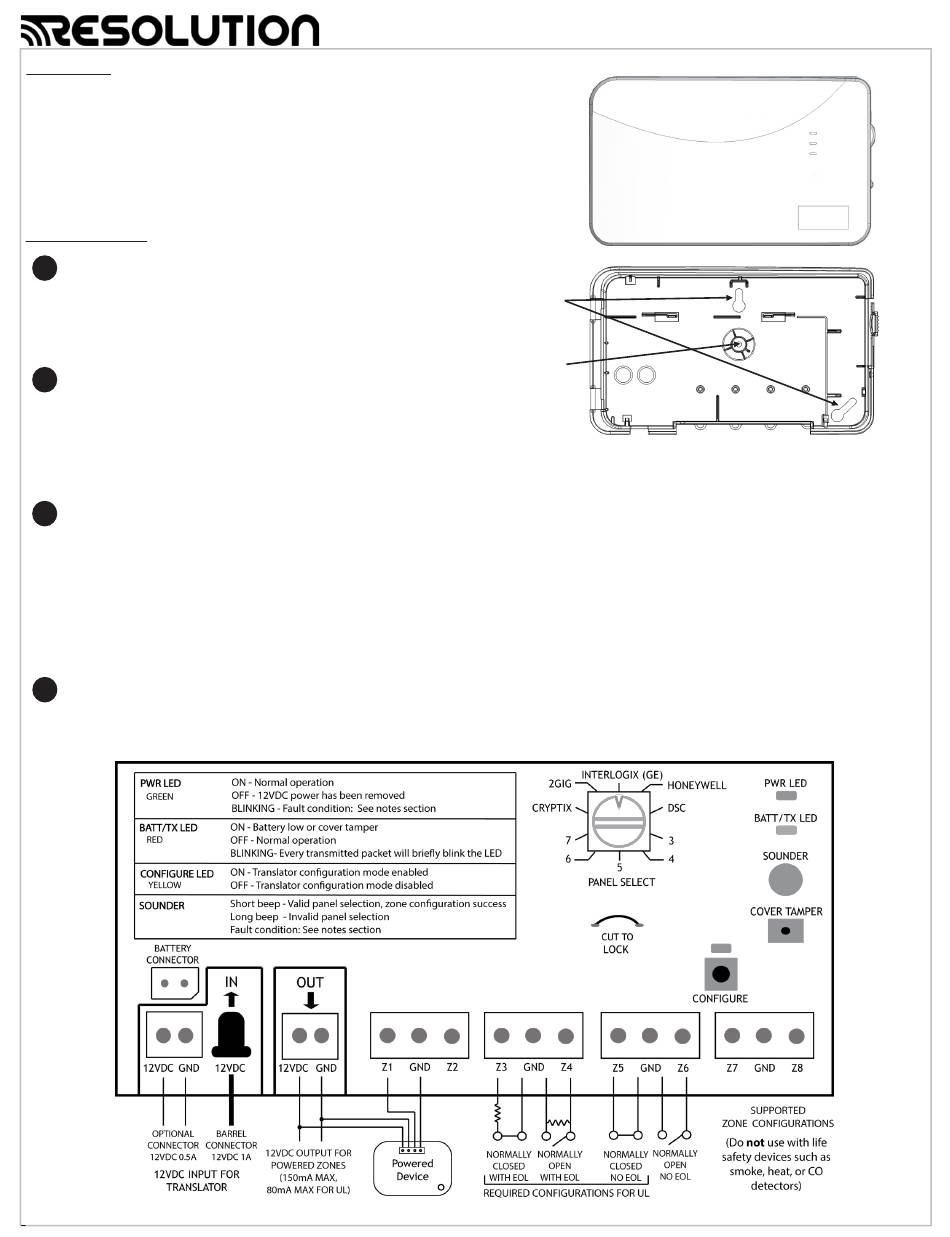

WIRING DIAGRAM
http://resolutionproducts.com/products/translators-repeaters/universal-translator/
Wall mounting
screw locations
Wall Tamper
(Do not overtighten
mounting screw)
(Mounting hardware not included. Use two
#4 or # 6 screws for mounting )
