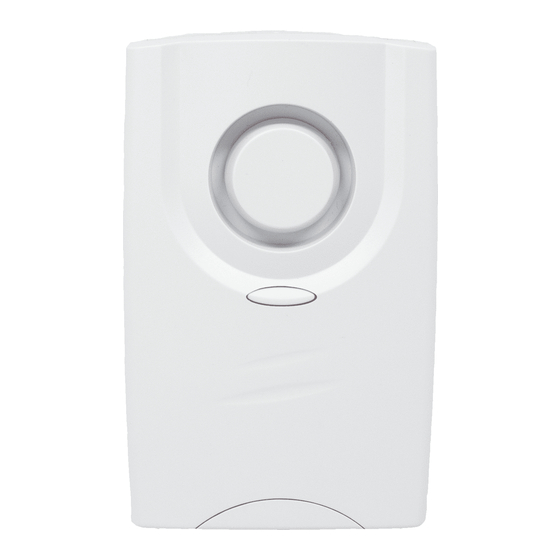

Resolution CryptiX HeliRazor RE626 Series Quick Start Manual

RE626 Series CryptiX
HeliRazor
is a siren warning device that produces high
volume warning sounds and low volume notification sounds.

Features

• Runs on user-replaceable alkaline AAA batteries
• Secure encrypted wireless communications
• 5 year warranty
Sounds
a high volume warning for burglary, smoke and carbon
monoxide alarm conditions. Low volume notification
sounds are made for auxiliary alarm, status, and trouble
conditions.

Enroll

by placing the Helix control panel into wireless
enrollment mode and then pressing the HeliRazor's
enrollment button located inside the battery compartment.
• Once enrolled, arm and disarm Helix to
verify HeliRazor is within range of Helix
and properly enrolled

Install

by mounting the siren to a wall using the mounting
screw holes on the back plate.
To replace the batteries,
the bottom away from the back plate and slide downward.
Next, slide the battery door off to expose the batteries.
An optional AC adapter
from an electrical outlet. When an AC adapter is used the
batteries act as a backup power source.

AC Adapter Part Numbers

• RE012-9 USA and Canada
• RE012-10 Australia and New Zealand
• RE012-11 United Kingdom
• RE012-12 Europe
Use the Helix installation guide to verify proper system setup.
™ HeliRazor ™ Siren
remove bottom screw and pull
allows for the siren to be powered
Enroll Button
Optional AC Adapter Port
Mounting
Screw Holes
AC Adapter
Cord Slots
Bottom Screw
I
