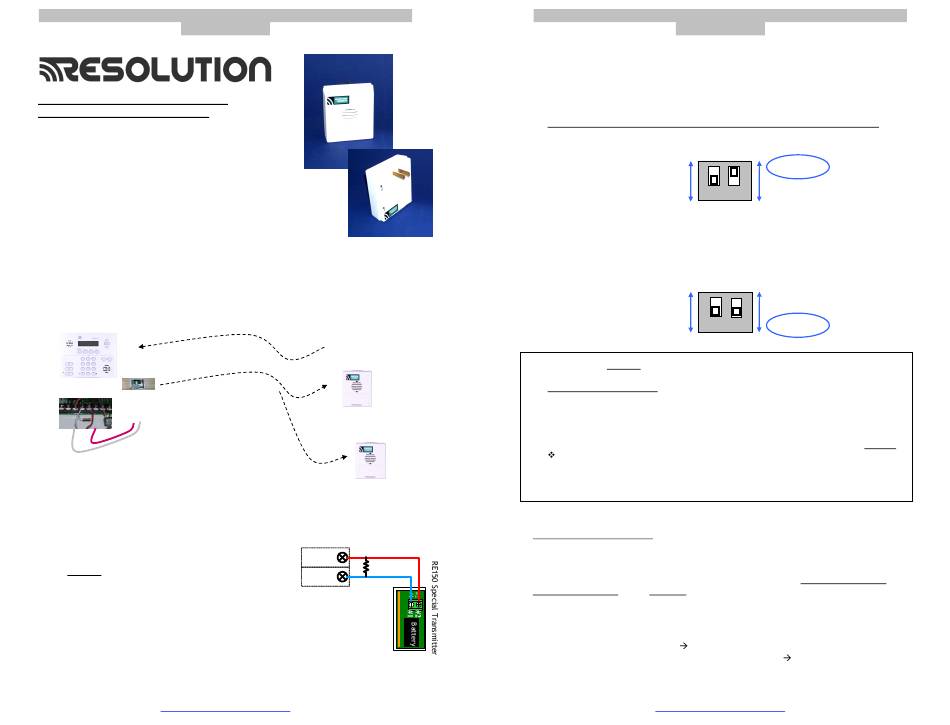

Resolution RE116-U Manual

USE THIS MANUAL IF USING THE SPECIAL TRANSMITTER TO SEND
SIGNAL TO SIREN
RE116-U Wireless Siren, Universal
using RE150 Special Transmitter
Features
Remote Wireless Siren
•
Works with any panel with siren terminals
•
Special transmitter at panel sends siren signals
•
Siren cadence synchronized to panel
•
Automatically follows panel beep volume
•
Wall-powered, with backup power on CR123A battery
•
Can use multiple Sirens on one panel
•
Cover tamper
•
Unparalleled wireless range
•
Low Battery indication
•
3x4x1.25 inches
•
Siren can also respond to a GE Key Fob (instead of a Panel)
•
How it works:
Special
Transmitter
2. Transmitter tells
wireless siren to make
noise, following siren
terminals pattern
1. Panel siren output
terminals signal alarm or
status beeps
Key Instructions
TYPICAL HARDWIRE CONNECTIONS
Refer to Siren Hardware Connections for specific panel connections and settings.
Connect Special Transmitter to Control Panel Siren:
Remove Special Transmitter battery during install.
•
MOUNT SPECIAL TRANSMITTER OUTSIDE
•
ANY METAL CANS!
RE116-U Universal Wireless Siren Instructions Page 1 of 4
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
4. Wireless siren sends
supervisories, low battery and
tamper statuses
(GE systems only)
3. Wireless siren
makes same noise
pattern as panel
More than one
siren can be
used
SIREN +
4.7K
SIREN -
29-Oct-14
USE THIS MANUAL IF USING THE SPECIAL TRANSMITTER TO SEND
SIGNAL TO SIREN
ENROLLMENT
Open the Siren battery door, giving access to the programming switches.
Power the Special Transmitter with its battery.
Power the Siren with its battery.
Enrolling Special Transmitter into Siren – to send panel siren signals to Siren
1. Put Siren Function in ENROLL Mode.
HIGH VOLUME STATUS BEEPS
low volume status beeps
1 1
2. Press and release the Special Transmitter tamper switch.
The Siren will beep 4 times, indicating enrollment.
3. IMPORTANT: Put cover on Special Transmitter.
4. Put Siren Function Switches in RUN Mode.
Select low volume or HIGH VOLUME status beeps
HIGH VOLUME STATUS BEEPS
low volume status beeps
DO THESE STEPS ONLY IF PANEL IS A GE SYSTEM.
Enrolling Siren in Panel – to monitor both Special Transmitter and Siren
(Siren only talks GE wireless):
If you want to have Siren monitor the Special Transmitter
•
In Step 2 above, instead of using the Special Transmitter's tamper switch to
enroll, pull and replace Special Transmitter battery. Siren will beep 8 times.
IMPORTANT: You must NOT enroll Special Transmitter in panel.
Panel will go CRAZY with alarms.
5.After step 4 above, enroll Siren into GE panel:
With Panel in enroll mode...Cycle tamper switch on Siren. Enroll in Group 10.
Put cover on Siren.
Plug Siren in wall.
System is ready to operate.
MULTIPLE SIRENS:
You can enroll multiple sirens in one system. Just enroll the same single original
nd
Special Transmitter in the 2 Siren. Simply repeat Steps 1-4 with the 2
TO DRIVE SIREN FROM KEY FOB (instead of driving Siren from Panel)
Repeat Steps 1-4, but use Key Fob Lock + Unlock, instead of Special Transmitter.
TO CHECK SPECIAL TRANSMITTER SIREN LINK:
Tamper, or install the battery in the Special Transmitter
RE116-U Universal Wireless Siren Instructions Page 2 of 4
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
ENROLL
RUN
2
2
ENROLL
RUN
1 2
1 2
nd
Siren.
Siren will beep twice.
29-Oct-14
