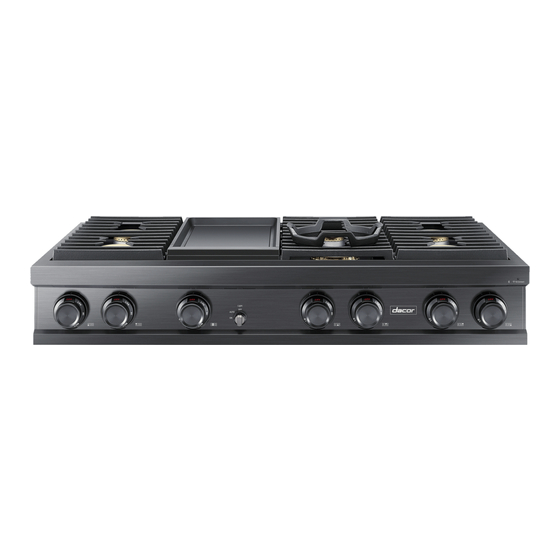

Dacor DTT36M974AS User Manual

Modernist rangetop
Hide thumbs Also See for DTT36M974AS:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Modernist Rangetop
DTT48M976/DTT36M974
Part No. 112139 Rev E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTT36M974AS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dacor DTT36M974AS

Summary of Contents for Dacor DTT36M974AS

  • Page 1 User Manual Modernist Rangetop DTT48M976/DTT36M974 Part No. 112139 Rev E...

  • Page 2: Table Of Contents

    Contents Contents Before You Begin Important Regulatory Notice Important Safety Instructions Product Overview External Features Parts Lists Using the Rangetop About the Burners Special Rangetop Features Igniting a Burner Using Proper Cookware Using the Grates Using the Griddle Using the Wok Grate Using iQ Connect Using Hood Control Care and Maintenance...
  • Page 3 Website: www.dacor.com/customer-care/contact-us Thanks for choosing Dacor for your home. We are a company built by families for families, and we are dedicated to serving yours. We are confident that your new Dacor range will deliver a top-level performance and enjoyment for decades to come.

  • Page 4: Before You Begin

    Before You Begin Important User • Keep this manual for personal and professional reference • All heat-generating appliances require you to follow certain precautions. • Ensure the rangetop is properly installed/ grounded by a qualified installer. Overall design/accessories may differ with the model. •...

  • Page 5: Regulatory Notice

    Regulatory Notice 1. FCC Notice CAUTION Any modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of FCC Rules. Operation is subject to these conditions: 1) This device may not cause harmful interference; 2) This device must accept any interference received including that which causes undesired operation.

  • Page 6: Important Safety Instructions

    Do not let children near the rangetop or leave them unattended in the kitchen when the • rangetop is in use. Dacor recommends activating the control/door lockout feature. Remove and dispose of packaging as soon as the rangetop is unpacked. Do not let children play •...
  • Page 7 Important Safety Instructions General Safety, cont. • Ensure all meat and poultry is cooked thoroughly. Meat should always be cooked to an internal temperature of 160 °F (71 °C), and poultry to 180 °F (82 °C). • Do not leave/store combustible material and liquids on/near the rangetop. •...
  • Page 8 Important Safety Instructions Electrical and Grounding Safety WARNING To reduce risk of fire, electric shock, personal injury, and death: • Plug the appliance in to a grounded, 3-prong outlet. • Do not remove the ground prong. • Do not use an adapter or an extension cord. •...
  • Page 9 Important Safety Instructions Rangetop Safety WARNING To reduce risk of fire, electric shock, personal injury, and death: • Turn all burners are off when not in use. • Do not use aluminium foil to line the grates or any part of the rangetop. •...

  • Page 10: Product Overview

    Product Overview External Features 36" Model: DTT36M974 48" Model: DTT48M976 1 Spill tray 1 Spill tray 2 Surface burners 2 Surface burners 3 Knob (shower lighting) 3 Knob (shower lighting) 4 Surface burner knobs (6 pcs) 4 Surface burner knobs (4 pcs) 5 Griddle knob 5 Griddle knob Parts Lists...

  • Page 11: Using The Rangetop

    This technology reduces the temperature under the fingers of the porcelain-coated, cast-iron grates, extending grate life and protecting the finish. SimmerSear™ Dacor’s exclusive, precision burner-control system lets you cook at a wide range of heat settings, from simmer to sear. English...

  • Page 12: Igniting A Burner

    Dacor’s Smart Flame feature. Foreign matter in the gas line may cause an orange flame that disappears with use. Small yellow tips on the flames are typical of LP gas.

  • Page 13: Using Proper Cookware

    Using the Rangetop Using the Proper Cookware WARNING • Rough-bottomed cookware can permanently damage the coated surfaces. • To avoid burns and scalding, always turn pan handles away from the front edge of the rangetop and adjacent burners. • Lift to reposition cookware. Sliding may damage the grate finish. Always set cookware gently onto the grates and center them for good balance.

  • Page 14: Using The Grates

    Using the Rangetop Using the Grates Gently set the grates on the spill tray. Put the legs of each grate into the corresponding dimples. NOTE Take care handling the heavy grates. Before installing the grates, check the words embossed into the underside of each grate to know their proper orientation and placement.

  • Page 15: Using The Wok Grate

    Using the Rangetop Using the Griddle, cont. Griddle Preheat Info for Various Foods Type of Food Preheat Time Preheat Setting Cook Setting Pancakes, fried eggs, sausages 8-10 min. MED-HI Hamburgers, bacon 15 – 20 min. CAUTION Remove the griddle when all rangetop surfaces (incl. the griddle and grates) are cool. •...

  • Page 16: Using Iq Connect

    Using the Rangetop Using iQ Connect The rangetop has a built-in Wi-Fi module that you can use to sync the rangetop with the Dacor iQ Kitchen app, which lets you monitor the On/Off status of rangetop elements. The Dacor iQ Kitchen app may not work properly under compromised wi-fi conditions (e.g., blocked by other electronic appliances or external electrical interference) or if the signal is weak (e.g.,...

  • Page 17: Using Hood Control

    • The hood’s Bluetooth LED remains on as long as Bluetooth is enabled. • There must be a connection for you to monitor/control the hood with the Dacor iQ Kitchen app. • If not connected to the cooktop, you can use a Bluetooth connection to pair the rangetop with the hood and sync them.

  • Page 18: Care And Maintenance

    Care and Maintenance Cleaning the Rangetop Surface You should clean up spills immediately. Turn off all burners. Let the grates cool, then remove them. Clean the rangetop surface with a soft cloth. If spills run down into burner components, remove the burner caps and heads, and wipe up the spills.

  • Page 19: Cleaning The Grates And Burners

    Care and Maintenance Cleaning the Grates and Burners Turn off all burners, and wait for them to cool. Remove the grates, then remove the burner caps and burner heads. Clean the grates and burner parts in warm, soapy water. (Do not use steel-wool pads or abrasive cleaners.) Rinse and dry grates and burner parts fully.

  • Page 20: About The Burner Bases

    Care and Maintenance About the Burner Bases CAUTION The burner bases are not removable. Ensure no water enters the bases and brass gas orifices. Clean them with a damp cloth, and dry them fully before using the cooktop. About the Electrodes CAUTION Do not try to remove the electrode from the cooktop or burner bases.

  • Page 21: Reassemblng The Burner Heads And Caps

    Care and Maintenance Reassembling the Burner Heads and Caps Dual Burner Head/Caps 1. Orient the burner head so the electrode opening aligns with the electrode itself. 2. Install the burner head so the electrode passes through its opening in the head. Lay the burner head flat on the base.
  • Page 22 Care and Maintenance Reinstalling the Burner Heads and Caps, cont. SimmerSear Burner Assembly WARNING Turn off electrical power and wait for all surfaces to cool before cleaning the rangetop. Place the burner heads as shown. The locater tab on the head goes in the keyed hole as shown. Burner head Locating...

  • Page 23: Troubleshooting

    Troubleshooting In case of malfunction, before calling for service, review this section for a possible resolution. Gas Safety Problem Possible cause Action You smell gas. Burner knob is on; burner not lit. Turn burner knob off. Gas leak. Evacuate building. •...

  • Page 24: Warranty

    LIMITED FIRST YEAR WARRANTY If your Dacor product fails to function within one year of the original date of purchase due to a defect in material or workmanship, Dacor will furnish a new part, F.O.B. factory to replace the defective part.
  • Page 25 Expired Warranty Should a service issue occur beyond the standard warranty period, contact us anyway. Dacor reviews each customer issue to provide the best possible solution based on the circumstances.

  • Page 26: Open-Source Announcement

    Open-Source Announcement The software included with this range contains open-source software. You may obtain the complete corresponding source code up to 3 years after the last shipment of this model by emailing: oss.request@samsung.com. You may also obtain the full corresponding source code in a physical medium (e.g., CD-ROM) at a minimal charge.
  • Page 27 Dacor product, please return all forms in one envelope, or activate the warranty online for each product. Please be assured that Dacor will never sell your name or any information on this form for mailing-list purposes, as we do not...
  • Page 28 NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO 1600 CITY OF INDUSTRY CA POSTAGE WILL BE PAID BY ADDRESSEE DACOR ATTN WARRANTY PROCESSING DEPT PO BOX 90070 CITY OF INDUSTRY CA 91715-9907...

This manual is also suitable for:

Dtt36m974Dtt36m974psDtt48m976
