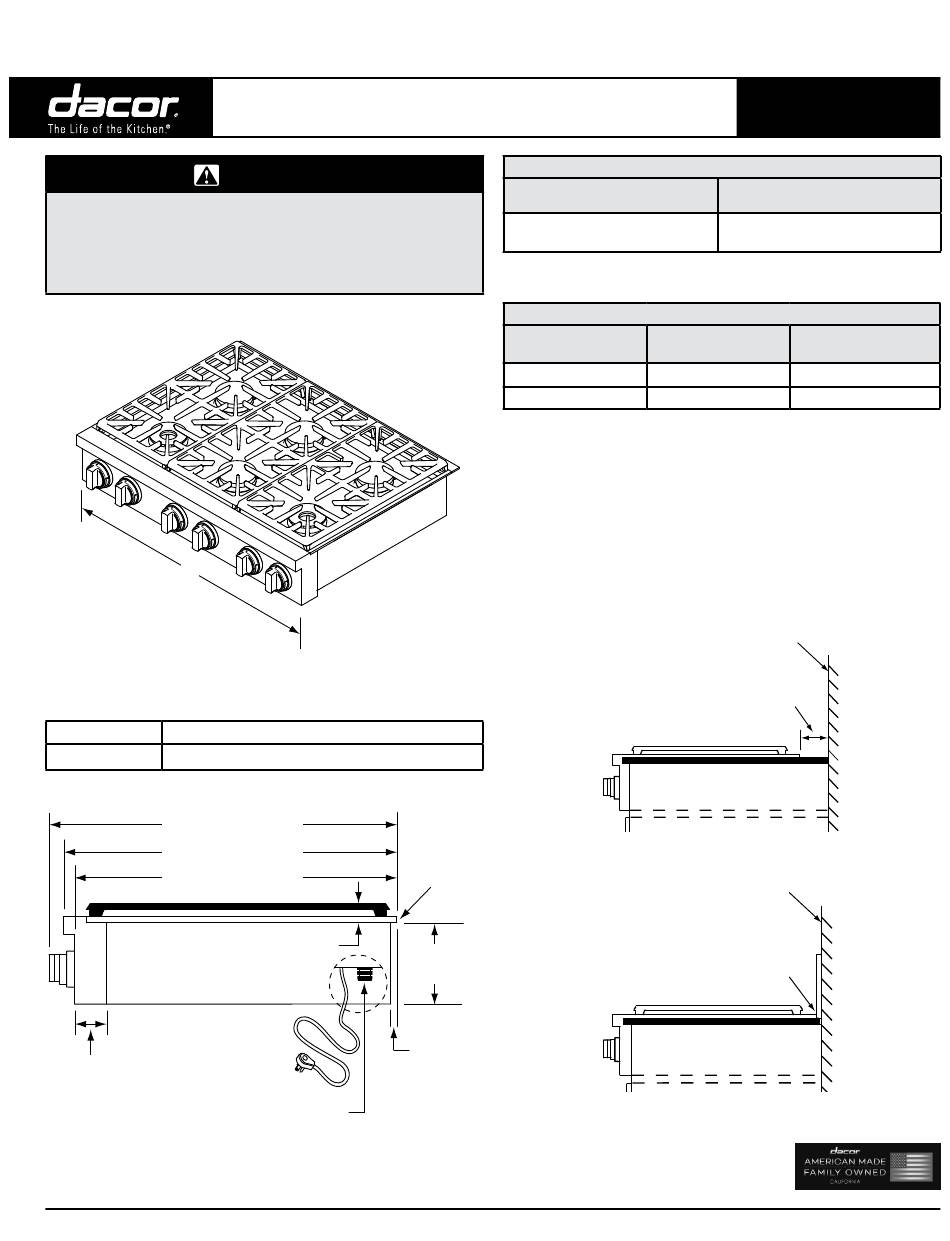

Dacor Discovery DYRTP366 Planning Manual

Document # PG04-007
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
Product tolerances: ±1/16" (±1.6 mm) unless otherwise noted
A
PRODUCT DIMENSIONS - ISO VIEW
DYRTP366
DYRTP486
27 5/16" (69.4 cm)
26 5/16" (66.8 cm)
25 3/8" (64.5 cm)
1 1/4" (3.2 cm) cooking surface
height (grate level) above
countertop
3 3/8"
(8.6 cm)
3/4" NPT gas inlet, connects to regulator
from bottom or rear of unit, end is recessed
2" (5.1 cm) from chassis bottom
PRODUCT DIMENSIONS - SIDE VIEW
All specifications subject to change without notice.
DYRTP366, DYRTP486
Discovery
Slide-in Gas Rangetops
WARNING
A - Width
35 7/8" (91.1 cm)
47 7/8" (121.6 cm)
Power cord
40" long
® 36" and 48" Wide
Circuit Required
120 Vac 60Hz, 15 Amp. (3 wire)
GAS SUPPLY PRESSURE REQUIREMENTS*
Gas Type
Natural Gas
Propane (LP)
* Maximum gas supply pressure for all models is 1/2 psi
IMPORTANT: Installation of a non-combustible material (up to the hood) or
a backsplash is always recommended, and mandatory if the distance to the
back wall from the rangetop is less than 2 1/2" (Figure 2). When installing
a backguard, use only Dacor model numbers AEB3609 (DYRTP366) or
AEB4809 (DYRTP486). Consult local codes and ordinances for acceptable
non-combustible materials.
Trim:
1/4"
CABINET/COUNTERTOP SIDE VIEW WITHOUT BACKGUARD
(6.4 mm)
thick
7 3/4"
(19.7 cm)
7/16"
(1.1 cm)
CABINET/COUNTERTOP SIDE VIEW WITH BACKGUARD
www.dacor.com
Revised 10/17/14 Page 1/4
PLANNING
ELECTRIC CIRCUIT REQUIREMENTS
Total Connected Load
0.25 Amp @ 120 Vac, 60 Hz
Manifold Pressure
5" Water Column
10" Water Column
Combustible
rear wall
2 1/2" (6.4 cm) min. to
combustible rear wall
Combustible
rear wall
Backguard mandatory if
gap from back of cooktop
to combustible wall is less
than 2 1/2"
Phone: (800) 793-0093
GUIDE
Minimum Gas Supply
Pressure
6" Water Column
11" Water Column
