Sealey LED068 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SAFETY
1.1. GENERAL
It is important to ensure that the lamp is fully charged before initial use.
9
WARNING! DO NOT turn the lamp on when it is being charged.
8
DO NOT shine directly into your, another person's or an animal's eyes.
8
DO NOT allow children to use the lamp.
8
DO NOT leave battery in a discharged state. Recharge battery immediately.
8
Recharge the battery at least once every six months of non-use.
9
1.2. ELECTRICAL SAFETY FOR USE OF CHARGER.
Use only the supplied charger for connecting the lamp to the power supply. DO NOT turn lamp on while connected to a power supply.
9
WARNING! It is the user's responsibility to read, understand and comply with the following instructions:
‰
IMPORTANT: You must ensure the risk of electric shock is minimised by the installation of appropriate safety devices e.g. RCD.
NOTE: If the lamp is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable
Appliance Test) tested.
Ensure that you inspect the charger plug, cable and connections for wear and damage to ensure items are safe before connecting
9
them to the mains power supply. If worn or damaged DO NOT use.
WARNING! DO NOT use any other type of charger with this product, other than the supplied mains or USB cable. Failure to observe
‰
this warning could result in injury and or fire. The use of any other type of charger will invalidate the warranty.
IMPORTANT: There are no user serviceable components. DO NOT dismantle.
IMPORTANT: For indoor use only. DO NOT allow the charger to become wet. DO NOT use in wet or damp conditions.
DO NOT pull the charger plug from the mains socket by the lead.
8
1.3. BATTERY SAFETY
DO NOT expose to temperatures above 60°C (140°F).
8
Replace the battery pack with genuine Sealey replacement product only.
9
I f in doubt about electrical safety, contact a qualified electrician.
9
2. INTRODUCTION

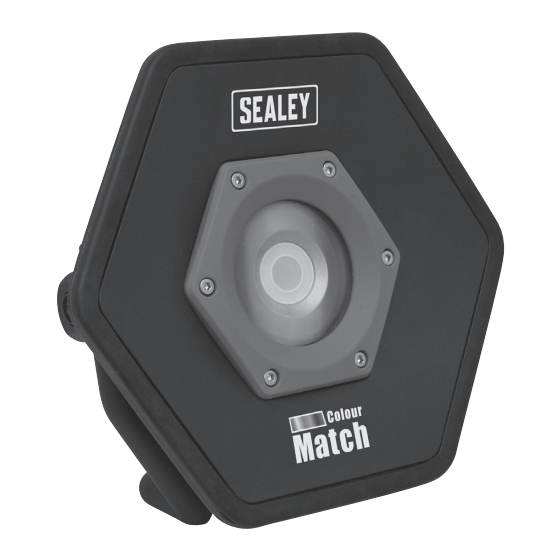

Rechargeable professional floodlight with super bright COB LED
which gives an even and constant spread of light. Five colour
temperature options, 2700K, 3500K, 4500K, 5500K and 6500K.
Produces a light with a CRI (Colour Rendering Index) of 96,
which gives a daylight effect.
Ideal for detecting swirls and differences in paint colour when
touching up areas of bodywork. Three settings allow for 25/50 or
100% brightness to suit task. Features a 180° adjustable stand.
Features a five LED battery level indicator. Supplied with quick
release charging lead.
3. SPECIFICATION
Model No: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LED068
Battery: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.1V 4.4Ah Li-ion
Charging Time: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5hr
CRI Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
IP Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP65
LED Qty: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 COB
Lumen Output: . . . . . . . . . . . . . . . . . . . . . . . .500/1000/2000lm
Operating Time: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8/4/2hr
Power: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20W
Nett Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.28kg
© Jack Sealey Limited
R/CHARGE FLOODLIGHT 20W COB LED LI-ION
COLOUR MATCHING
LED068
MODEL NO:
Original Language Version LED068 | Issue 1 16/01/19
