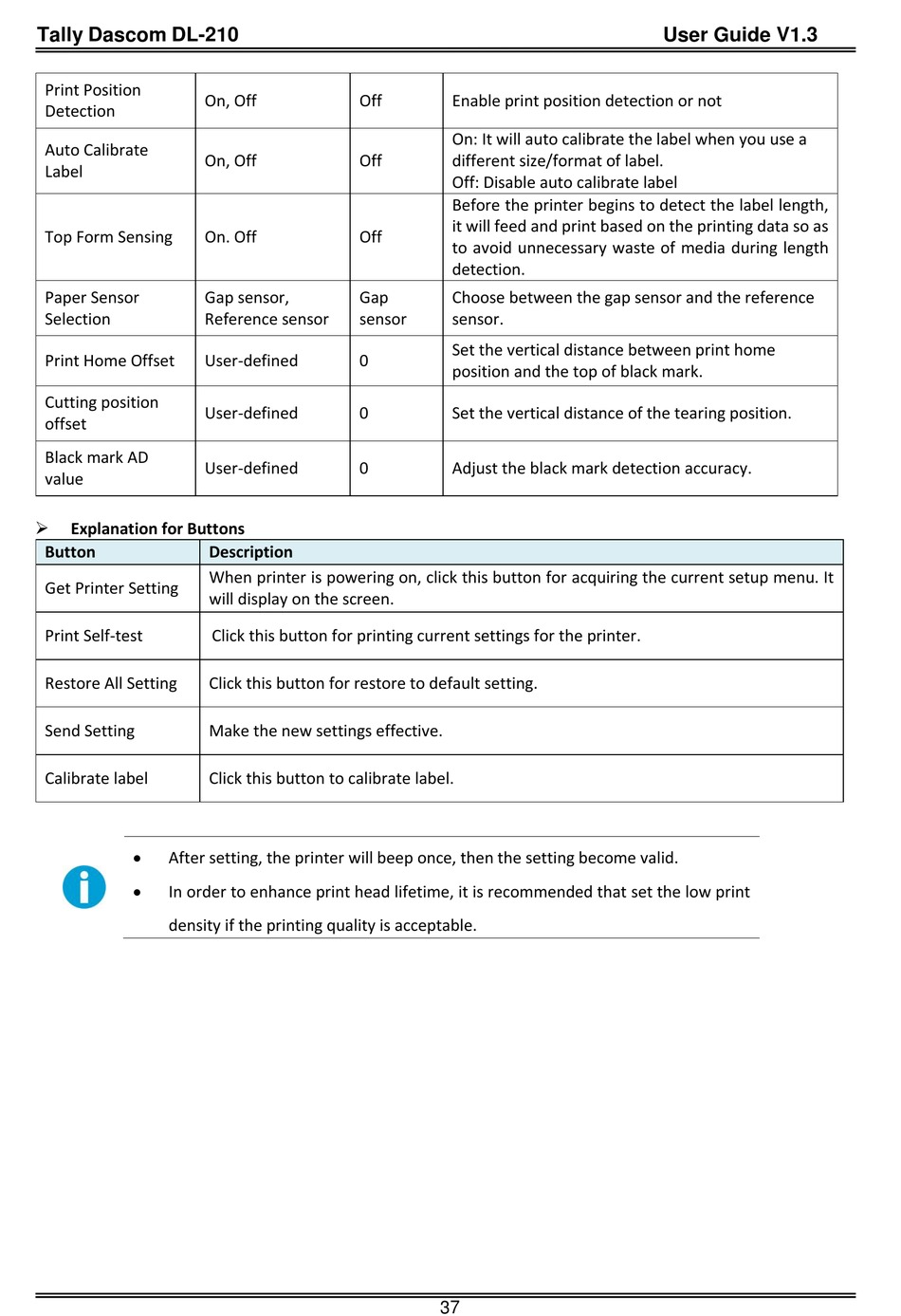

Tally Dascom DL-210
Print Position
On, Off
Detection
Auto Calibrate
On, Off
Label
Top Form Sensing On. Off
Paper Sensor Gap sensor,
Selection Reference sensor
Print Home Offset User-defined
Cutting position
User-defined
offset
Black mark AD
User-defined
value

Explanation for Buttons
Button
Get Printer Setting
Print Self-test
Restore All Setting
Send Setting
Calibrate label

After setting, the printer will beep once, then the setting become valid.

In order to enhance print head lifetime, it is recommended that set the low print
density if the printing quality is acceptable.
Off
Off
Off
Gap
sensor
0
0
0
Description
When printer is powering on, click this button for acquiring the current setup menu. It
will display on the screen.
Click this button for printing current settings for the printer.
Click this button for restore to default setting.
Make the new settings effective.
Click this button to calibrate label.
Enable print position detection or not
On: It will auto calibrate the label when you use a
different size/format of label.
Off: Disable auto calibrate label
Before the printer begins to detect the label length,
it will feed and print based on the printing data so as
to avoid unnecessary waste of media during length
detection.
Choose between the gap sensor and the reference
sensor.
Set the vertical distance between print home
position and the top of black mark.
Set the vertical distance of the tearing position.
Adjust the black mark detection accuracy.
37
