2.5 Loading Transfer Ribbon

Transfer ribbons come in several varieties and in some cases colors to match your application needs.
The media and ribbon types should be matched to provide you with optimal print results. Always use
ribbon that is wider than the media to protect the printhead from wear.
For direct thermal printing, do not load ribbon in the printer.
Do not use ribbon while using thermal media. Otherwise, barcode and graph
will be distorted.

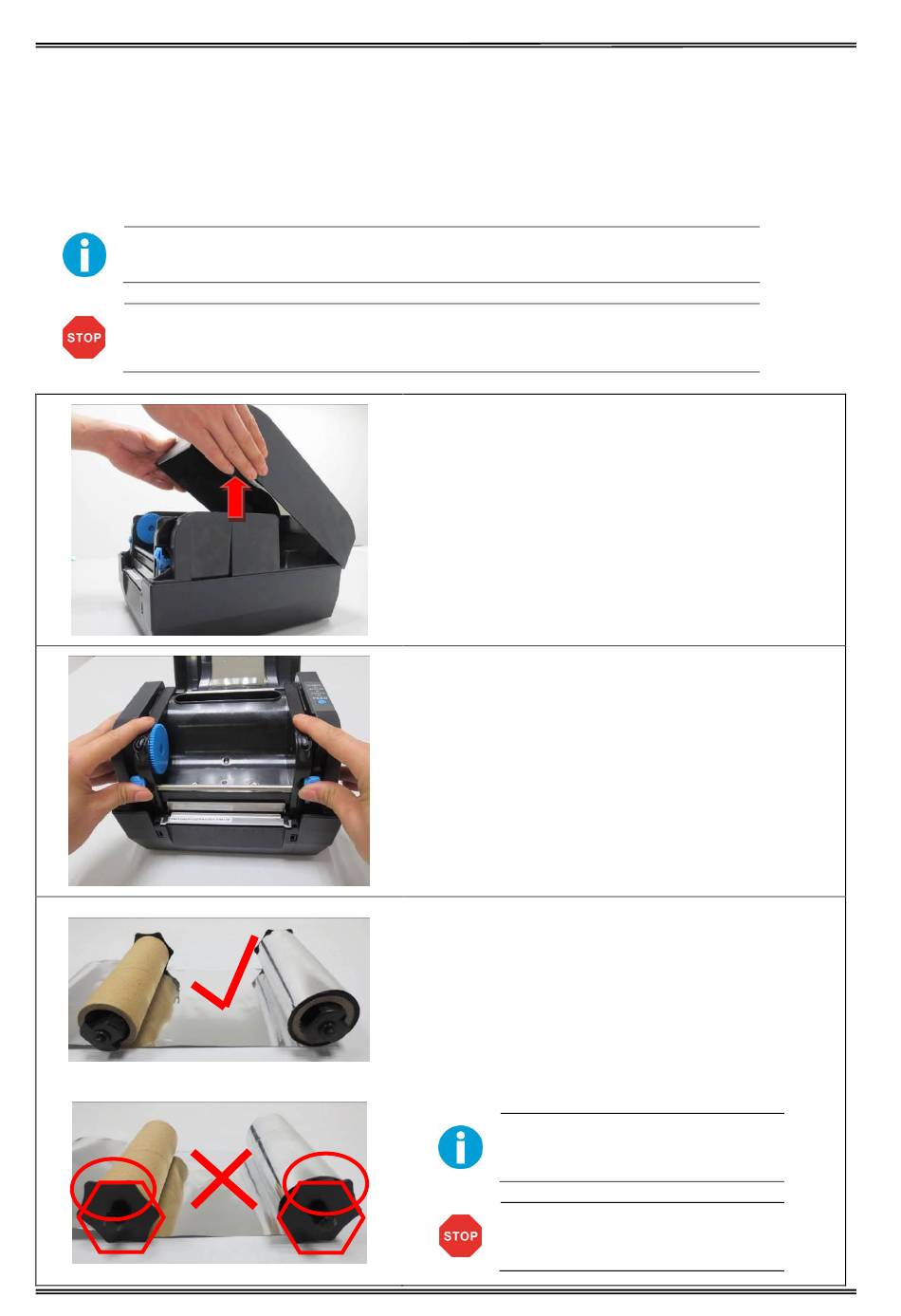

(1) Lift the top cover to expose the media holder
and the print head mechanism.
(2) Unlatch the print head mechanism by pushing
the two blue locking buttons on the sides toward
the rear.
(3) Unwrap the ribbon roll pack and separate the
ribbon roll and the bare paper core.
(4) Insert the spindles into the core and the ribbon
respectively.
(5) Attach the edge of the ribbon on the bare paper
core and wind it a little onto the core.
Do not rip the ribbon leader on
ribbon rewind pipe.
Do observe the direction of
hexagon.
