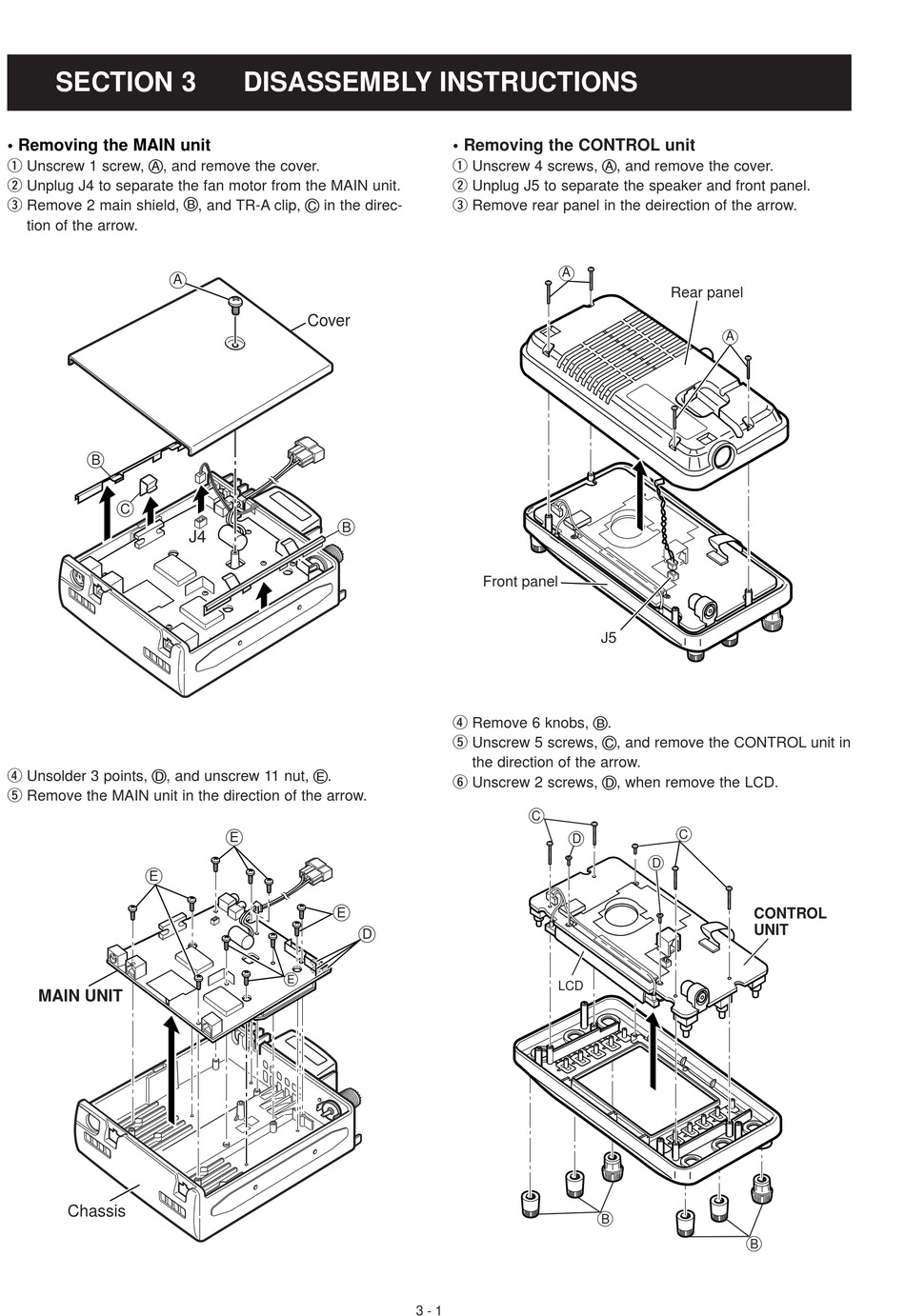

SECTION 3
• Removing the MAIN unit
A
q Unscrew 1 screw,
, and remove the cover.
w Unplug J4 to separate the fan motor from the MAIN unit.
e Remove 2 main shield,
tion of the arrow.
A
B
C
D
r Unsolder 3 points,
, and unscrew 11 nut,
t Remove the MAIN unit in the direction of the arrow.
E
MAIN UNIT
Chassis
DISASSEMBLY INSTRUCTIONS
B
C
, and TR-A clip, in the direc-
Cover
B
J4
E
.
E
E
E
• Removing the CONTROL unit
q Unscrew 4 screws,
w Unplug J5 to separate the speaker and front panel.
e Remove rear panel in the deirection of the arrow.
Front panel
r Remove 6 knobs,
t Unscrew 5 screws,
the direction of the arrow.
y Unscrew 2 screws,
C
D
3 - 1
A
, and remove the cover.
A
Rear panel
A
J5
B
.
C
, and remove the CONTROL unit in
D
, when remove the LCD.
C
D
D
LCD
B
CONTROL
UNIT
B
