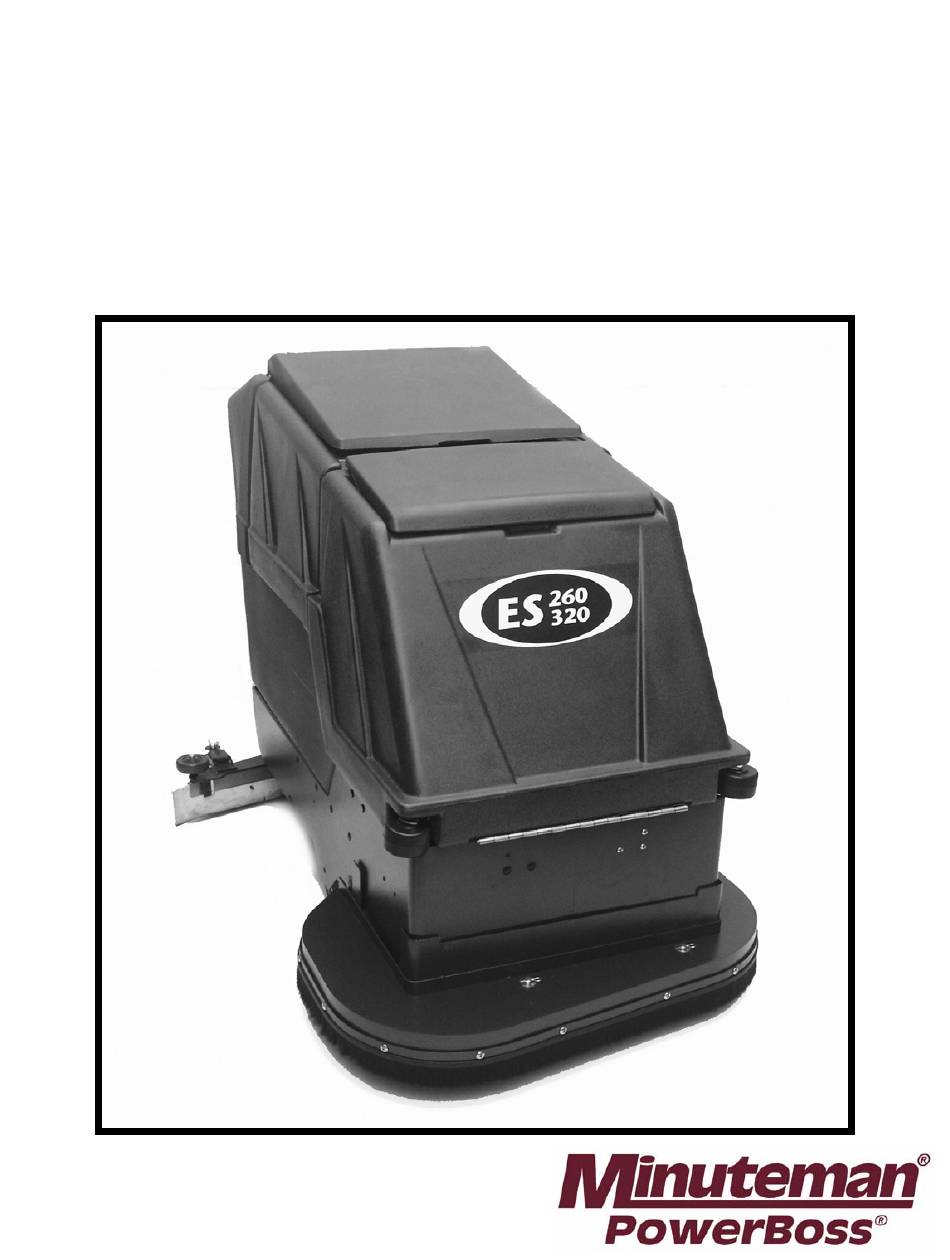

- Page 1 Model #: ES320 P320QP Floor Scrubber P320CE Traction Driven P320QPIW ■ ■ ■ OPERATION SERVICE PARTS CARE...
-
Page 3: Table Of Contents
CONTROL PANELS ..................................15 CONTROL PANELS BOM ................................16 SQUEEGEE LIFT MECHANISM ASSEMBLY..........................17 SQUEEGEE LIFT MECHANISM ASSEMBLY BOM........................18 SQUEEGEE ADJUSTMENT MECHANISM ASSEMBLY ......................19 SQUEEGEE BLADE ASSEMBLY ..............................20 WIRING DIAGRAM (STANDARD MODELS)..........................21 WIRING DIAGRAM (CE MODELS) ..............................23 MINUTEMAN INTERNATIONAL MADE SIMPLE COMMERCIAL LIMITED WARRANTY..........25... -
Page 4: Important Safety Instructions
Operators must read and understand this manual before operating or maintaining this machine. Do not operate this machine in areas containing flammable or explosive materials. This machine is designed solely for scrubbing dirt and dust in an indoor environment. Minuteman does not recommend using this machine in any other capacity. -
Page 5: Electrical Requirements
ELECTRICAL REQUIREMENTS: This piece of equipment operates on 24 VOLT DC. BATTERY REQUIREMENTS: 4 x 6V, 275Ah batteries (Part Number 956740) BATTERY SERVICE AND INSTALLATION WARNING: Battery acid can cause burns. When working on or around batteries, wear protective clothing and safety glasses. Remove metal jewelry. Do not lay tools or metal objects on top of batteries. -
Page 6: Control Panel Identification
CONTROL PANEL IDENTIFICATION... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Filling: Fill the solution tank with the desired amount of water and add liquid cleaning solution to the proper dilution ratio. DO NOT USE powdered cleaning chemicals. Powders are unlikely to dissolve thoroughly, resulting in clogging the in-line solution filter. This can reduce or stop water flow to the brush. -
Page 8: Rear Squeegee
REAR SQUEEGEE The rear squeegee is the main element that acts as the conduit that transfers the spent solution into the recovery tank. A daily maintenance check of this component is essential to have optimum machine performance. The rear squeegee assembly is equipped with a universal front blade that allows the operator the option to use a slotted and a non-slotted side for specific applications. -
Page 9: Rear Squeegee Adjustment
REAR SQUEEGEE ADJUSTMENT 1. Ensure that the scrubber is on a relatively flat surface. Turn on the key switch and lower the squeegee to the floor using the squeegee lift lever. This turns the vacuum motor on. 2. Move the scrubber one or two feet forward slowly while someone behind the machine checks the rear squeegee blade (item A) for uniform deflection to the floor. -
Page 10: Exploded Views
EXPLODED VIEWS MAIN ASSEMBLY... -
Page 11: Main Assembly Bom
MAIN ASSEMBLY BOM ITEM PART NO. REQ'D DESCRIPTION 260087 HINGE-15" 260090 REAR BASE CHAR GREY 260091B RECOVERY TANK, ES260320 BURGUNDY 260092B SOLUTION TANK, ES260320 BURGUNDY 260360 MAINFRAME MMAN 260 TD 260096B LID RECOVERY 260 BURGUNDY 260620 SKIRT, BRUSH, ES320 260662 BKT, SKIRT RETAINER RH, ES320 260662-1 BKT, SKIRT RETAINER LH, ES320... -
Page 12: Solution & Recovery Tank
SOLUTION AND RECOVERY TANK... -
Page 13: Solution & Recovery Tank Bom
SOLUTION & RECOVERY TANK BOM ITEM PART NO. REQ'D DESCRIPTION 130118 STRAINER-SOLUTION M3-40 210045 CABLE-SOLUTION CONTROL 210370 SOLUTION VALVE BRACKET 210408 FITTING BRASS TEE 3/8MPT&FPT 210409 FITTING BRASS 3/8MPT 3/8FPT 210410 FITTING BRASS 3/8FPT 3/8HOSE 210414 O RING 2-113 260029B LID SOLUTION BURGUNDY 260091B RECOVERY TANK, ES260320 BURGUNDY... -
Page 14: Mainframe Assembly
MAINFRAME ASSEMBLY... -
Page 15: Mainframe Assembly Bom
MAINFRAME ASSEMBLY BOM PARTS LIST ITEM PART NO. REQ'D DESCRIPTION 210142 PEDAL PAD 260030 BUSHING-.5015 X .628 X .375 OI 260041 BUSHING-FLG .502 X .750 X .375 260043 LIFT ARM, LEFT SIDE 260046 PEDAL BRACE 260044 LIFT ARM, RIGHT SIDE 260054 PEDAL WELDMENT 260055PTD... -
Page 16: Linkage Assembly
LINKAGE ASSEMBLY... -
Page 17: Linkage Assembly Bom
LINKAGE ASSEMBLY BOM... -
Page 18: Control Panels
CONTROL PANELS... -
Page 19: Control Panels Bom
CONTROL PANEL BOM... -
Page 20: Squeegee Lift Mechanism Assembly
SQUEEGEE LIFT MECHANISM ASSEMBLY (P.N. 260660) -
Page 21: Squeegee Lift Mechanism Assembly Bom
SQUEEGEE LIFT MECHANISM ASSEMBLY BOM PARTS LIST ITEM PART NO. REQ'D DESCRIPTION 210400 SPACER-TUBE 260041 BUSHING-FLG .502 X .627 X .375 260292 BLT-SWING ZINC PLATED 260314 WELD-HOUSING SPRING 260659-1 SQUEEGEE OKE SUB-ASSY ES260/320 260681 TORSION SPRING 320008 PIVOT BRACKET ASSEMBLY 430051 SPRING-RETURN .313 X .438 X 2.93 SS 710592... -
Page 22: Squeegee Adjustment Mechanism Assembly
SQUEEGEE ADJUSTMENT MECHANISM ASSEMBLY (P.N. 241730-1) -
Page 23: Squeegee Blade Assembly
SQUEEGEE BLADE ASSEMBLYP.N. 281579) -
Page 28: Minuteman International Made Simple Commercial Limited Warranty
Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and maintained in accordance with the applicable operation and instruction manuals.
