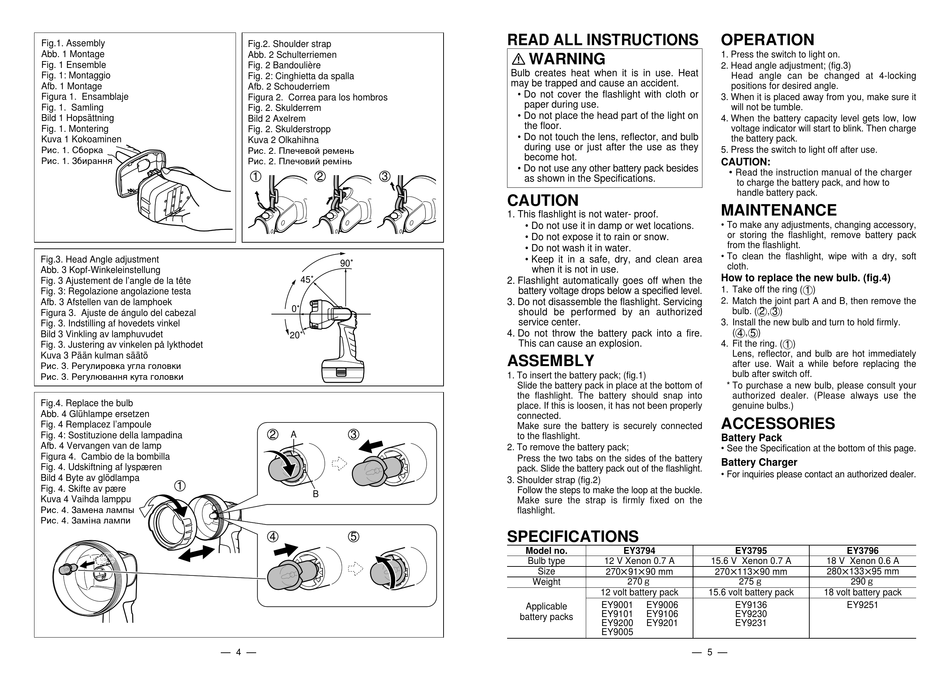

Fig.1. Assembly
Abb. 1 Montage
Fig. 1 Ensemble
Fig. 1: Montaggio
Afb. 1 Montage
Figura 1. Ensamblaje
Fig. 1. Samling
Bild 1 Hopsättning
Fig. 1. Montering
Kuva 1 Kokoaminen
Fig.3. Head Angle adjustment
Abb. 3 Kopf-Winkeleinstellung
Fig. 3 Ajustement de l'angle de la tête
Fig. 3: Regolazione angolazione testa
Afb. 3 Afstellen van de lamphoek
Figura 3. Ajuste de ángulo del cabezal
Fig. 3. Indstilling af hovedets vinkel
Bild 3 Vinkling av lamphuvudet
Fig. 3. Justering av vinkelen på lykthodet
Kuva 3 Pään kulman säätö
Fig.4. Replace the bulb
Abb. 4 Glühlampe ersetzen
Fig. 4 Remplacez l'ampoule
Fig. 4: Sostituzione della lampadina
Afb. 4 Vervangen van de lamp
Figura 4. Cambio de la bombilla
Fig. 4. Udskiftning af lyspæren
Bild 4 Byte av glödlampa
1
Fig. 4. Skifte av pære
Kuva 4 Vaihda lamppu
Fig.2. Shoulder strap
Abb. 2 Schulterriemen
Fig. 2 Bandoulière
Fig. 2: Cinghietta da spalla
Afb. 2 Schouderriem
Figura 2. Correa para los hombros
Fig. 2. Skulderrem
Bild 2 Axelrem
Fig. 2. Skulderstropp
Kuva 2 Olkahihna
1
2
3
90
45
0
20
2
3
A
B
4
5
4
READ ALL INSTRUCTIONS
WARNING
Bulb creates heat when it is in use. Heat
may be trapped and cause an accident.
• Do not cover the flashlight with cloth or
paper during use.
• Do not place the head part of the light on
the floor.
• Do not touch the lens, reflector, and bulb
during use or just after the use as they
become hot.
• Do not use any other battery pack besides
as shown in the Specifications.
CAUTION
1. This flashlight is not water- proof.
• Do not use it in damp or wet locations.
• Do not expose it to rain or snow.
• Do not wash it in water.
• Keep it in a safe, dry, and clean area
when it is not in use.
2. Flashlight automatically goes off when the
battery voltage drops below a specified level.
3. Do not disassemble the flashlight. Servicing
should be performed by an authorized
service center.
4. Do not throw the battery pack into a fire.
This can cause an explosion.
ASSEMBLY
1. To insert the battery pack; (fig.1)
Slide the battery pack in place at the bottom of
the flashlight. The battery should snap into
place. If this is loosen, it has not been properly
connected.
Make sure the battery is securely connected
to the flashlight.
2. To remove the battery pack;
Press the two tabs on the sides of the battery
pack. Slide the battery pack out of the flashlight.
3. Shoulder strap (fig.2)
Follow the steps to make the loop at the buckle.
Make sure the strap is firmly fixed on the
flashlight.

SPECIFICATIONS

Model no.
EY3794
Bulb type
12 V Xenon 0.7 A
Size
270 91 90 mm
Weight
270n
12 volt battery pack
EY9001
EY9006
Applicable
EY9101
EY9106
battery packs
EY9200
EY9201
EY9005

OPERATION

1. Press the switch to light on.
2. Head angle adjustment; (fig.3)
Head angle can be changed at 4-locking
positions for desired angle.
3. When it is placed away from you, make sure it
will not be tumble.
4. When the battery capacity level gets low, Iow
voltage indicator will start to blink. Then charge
the battery pack.
5. Press the switch to light off after use.
CAUTION:
Read the instruction manual of the charger
to charge the battery pack, and how to
handle battery pack.

MAINTENANCE

• To make any adjustments, changing accessory,
or storing the flashlight, remove battery pack
from the flashlight.
• To clean the flashlight, wipe with a dry, soft
cloth.
How to replace the new bulb. (fig.4)
1. Take off the ring (
)
1
2. Match the joint part A and B, then remove the
bulb. (
2 3
,
)
3. Install the new bulb and turn to hold firmly.
(
4 5
,
)
4. Fit the ring. (
)
1
Lens, reflector, and bulb are hot immediately
after use. Wait a while before replacing the
bulb after switch off.
* To purchase a new bulb, please consult your
authorized dealer. (Please always use the
genuine bulbs.)
ACCESSORIES
Battery Pack
• See the Specification at the bottom of this page.
Battery Charger
• For inquiries please contact an authorized dealer.
EY3795
EY3796
15.6 V Xenon 0.7 A
18 V Xenon 0.6 A
270 113 90 mm
280 133 95 mm
275n
290n
15.6 volt battery pack
18 volt battery pack
EY9136
EY9251
EY9230
EY9231
5
