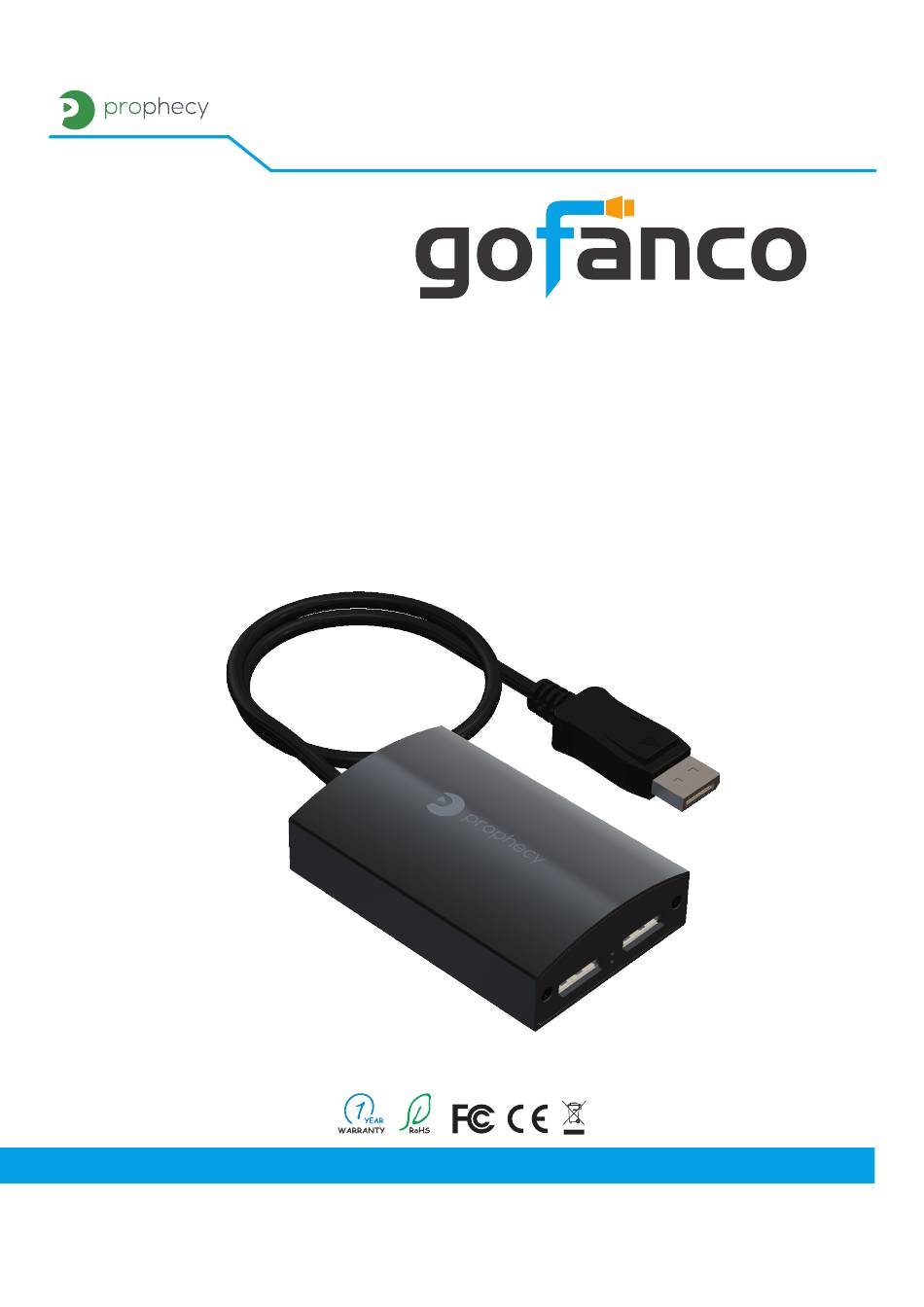

- Page 1 ® PRO-MSTDP2DP 1x2 DisplayPort 1.2 MST Hub/Splitter with Pigtail Cable User‘s Guide Made in Taiwan...
- Page 2 ® PRO-MSTDP2DP Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Package Contents
® PRO-MSTDP2DP 1. Introduction The PRO-MSTDP2DP 1x2 DisplayPort 1.2 MST Hub/Splitter with Pigtail Cable provides the most cost effective and advanced DisplayPort splitter solution on the market, by which the high definition video and high quality audio can be transmitted to 2 different locations without losing quality. -
Page 4: Specifications
® PRO-MSTDP2DP 4. Specifications Item Description Role of usage 1x2 MST Hub/Distribution Amplifier (Splitter) DP compliance DisplayPort 1.2 HDCP compliance HDCP 1.3 21.6Gbps Video bandwidth Video support See bandwidth resolution distribution on page 6 Audio support LPCM, AC3, DTS Human body model — ±15kV [air-gap discharge] & ESD protection ±8kV [contact discharge] 4-layer board [impedance control —... -
Page 5: Connection Diagram
® PRO-MSTDP2DP 5. Connection Diagram PRO-MSTDP2DP allows user to connect two displays to the Dis- playPort enabled laptop, Ultrabook, or PC. Configure these added monitors anyway you want; works as a splitter with the same con- tent on each monitor, extended mode with independent monitors, or video wall mode joining multiple monitors together as one dis- play. - Page 6 ® PRO-MSTDP2DP Notes 1. Total bandwidth is 21.6Gbps (under MST mode) Resolution % of total bandwidth(21.6Gbps) 3840x2160@60 3840x2160@30 1920x1200@60 1920x1080@60 The total combined bandwidth among all connected displays must NOT exceed 21.6Gbps 2. Supports UHD video resolutions up to 3840x2160@30, and 7.1ch surround audio to deliver high quality video and au- dio.
-
Page 7: Panel Description
® PRO-MSTDP2DP 6. Panel Description 1. DisplayPort output 1 5. DisplayPort input 2. Output 2 LED Indicator 6. Power LED Indicator 3. Output 1 LED Indicator 7. +5V power (Micro-USB) 4. DisplayPort output 2 8. Link LED Indicator... - Page 8 ® PRO-MSTDP2DP 7. Notice Notes 1. It is limited to two displays under mirror mode using Windows Display Utility & NVIDIA Utility. 2. It requires either an AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter under Video Wall mode (e.g., Pan- oramic).
- Page 9 ® PRO-MSTDP2DP 11. Limited Warranty The SELLER warrants the PRO-MSTDP2DP 1x2 DisplayPort 1.2 MST Hub/Split- ter with Pigtail Cable free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized...
- Page 10 ® PRO-MSTDP2DP Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products. We reserve the rights to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
- Page 11 ® PRO-MSTDP2DP...
- Page 12 ® Thank you for choosing gofanco www.gofanco.com Aug, 2019 Ver. A Copyright © by gofanco, LLC. All rights reserved.
