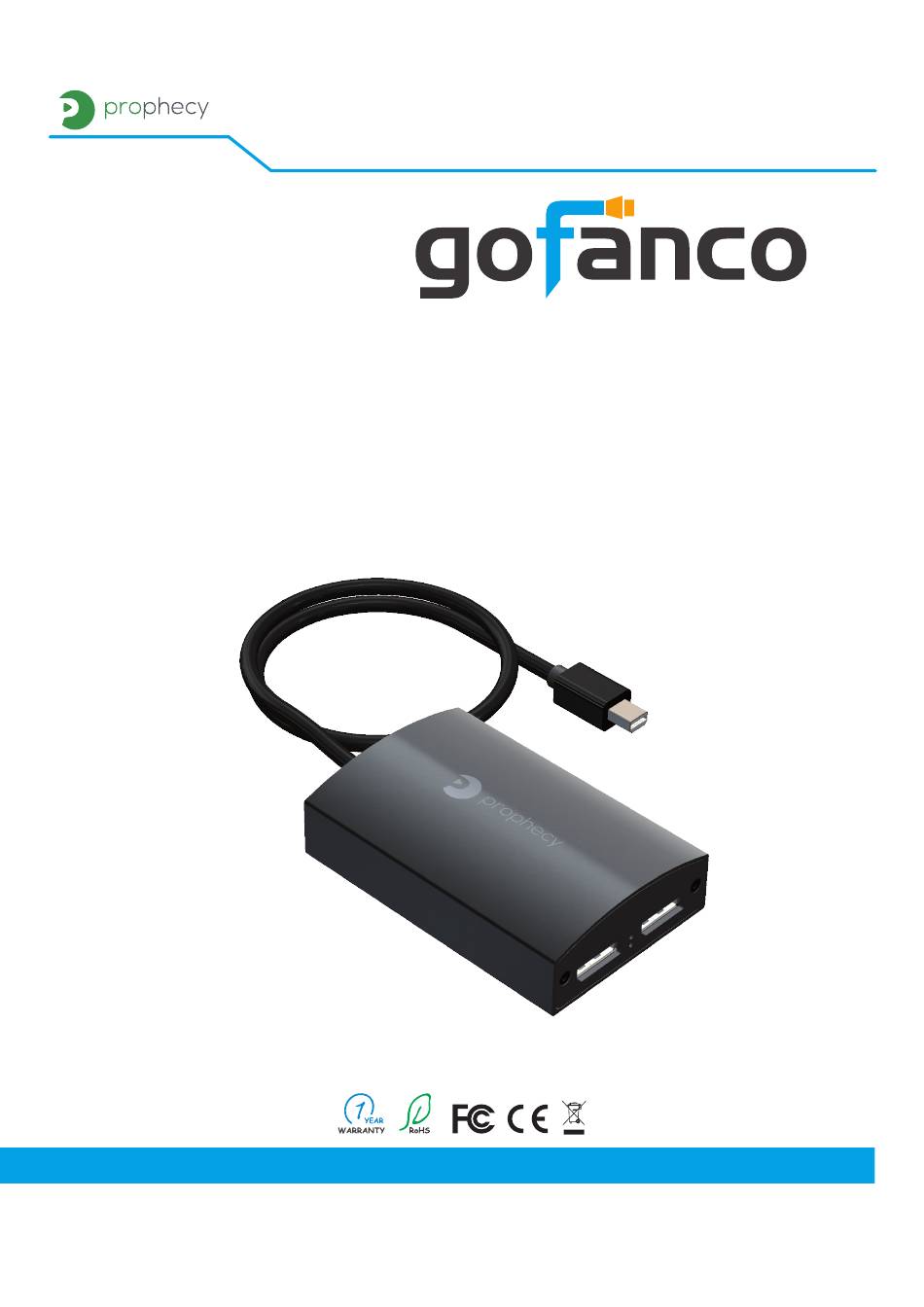

- Page 1 ® PRO-MSTmDP2DP 1x2 Mini DisplayPort 1.2 to DisplayPort MST Hub/Splitter with Pigtail Cable User‘s Guide Made in Taiwan...
- Page 2 ® PRO-MSTmDP2DP Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Package Contents
® PRO-MSTmDP2DP 1. Introduction The PRO-MSTmDP2DP 1x2 Mini DisplayPort 1.2 to DisplayPort MST Hub/Splitter with Pigtail Cable provides the most cost ef- fective and advanced Mini DisplayPort to DisplayPort splitter solution on the market, by which the high definition video and high quality audio can be transmitted to 2 different locations without losing quality. -
Page 4: Specifications
® PRO-MSTmDP2DP 4. Specifications Item Description Role of usage 1x2 MST Hub/Distribution Amplifier (Splitter) DP compliance DisplayPort 1.2 HDCP compliance HDCP 1.3 21.6Gbps Video bandwidth Video support See bandwidth resolution distribution on page 6 Audio support LPCM, AC3, DTS Human body model — ±15kV [air-gap discharge] & ESD protection ±8kV [contact discharge] 4-layer board [impedance control —... -
Page 5: Connection Diagram
® PRO-MSTmDP2DP 5. Connection Diagram PRO-MSTmDP2DP allows user to connect two displays to the Mini DisplayPort enabled laptop, Ultrabook, or PC. Configure these ad- ded monitors anyway you want; works as a splitter with the same content on each monitor, extended mode with independent moni- tors, or video wall mode joining multiple monitors together as one display. - Page 6 ® PRO-MSTmDP2DP Notes 1. Total bandwidth is 21.6Gbps (under MST mode) Resolution % of total bandwidth(21.6Gbps) 3840x2160@60 3840x2160@30 1920x1200@60 1920x1080@60 The total combined bandwidth among all connected displays must NOT exceed 21.6Gbps 2. Supports UHD video resolutions up to 3840x2160@30, and 7.1ch surround audio to deliver high quality video and au- dio.
-
Page 7: Panel Description
® PRO-MSTmDP2DP 6. Panel Description 1. DisplayPort output 1 5. Mini DisplayPort input 2. Output 2 LED Indicator 6. Power LED Indicator 3. Output 1 LED Indicator 7. +5V power (Micro-USB) 4. DisplayPort output 2 8. Link LED Indicator... - Page 8 ® PRO-MSTmDP2DP 7. Notice Notes 1. It is limited to two displays under mirror mode using Windows Display Utility & NVIDIA Utility. 2. It requires either an AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter under Video Wall mode (e.g., Pan- oramic).
- Page 9 ® PRO-MSTmDP2DP 11. Limited Warranty The SELLER warrants the PRO-MSTmDP2DP 1x2 Mini DisplayPort 1.2 to Dis- playPort MST Hub/Splitter with Pigtail Cable free from defects in the mate- rial and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer.
- Page 10 ® PRO-MSTmDP2DP Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products. We reserve the rights to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
- Page 11 ® PRO-MSTmDP2DP...
- Page 12 ® Thank you for choosing gofanco www.gofanco.com Aug, 2019 Ver. A Copyright © by gofanco, LLC. All rights reserved.
