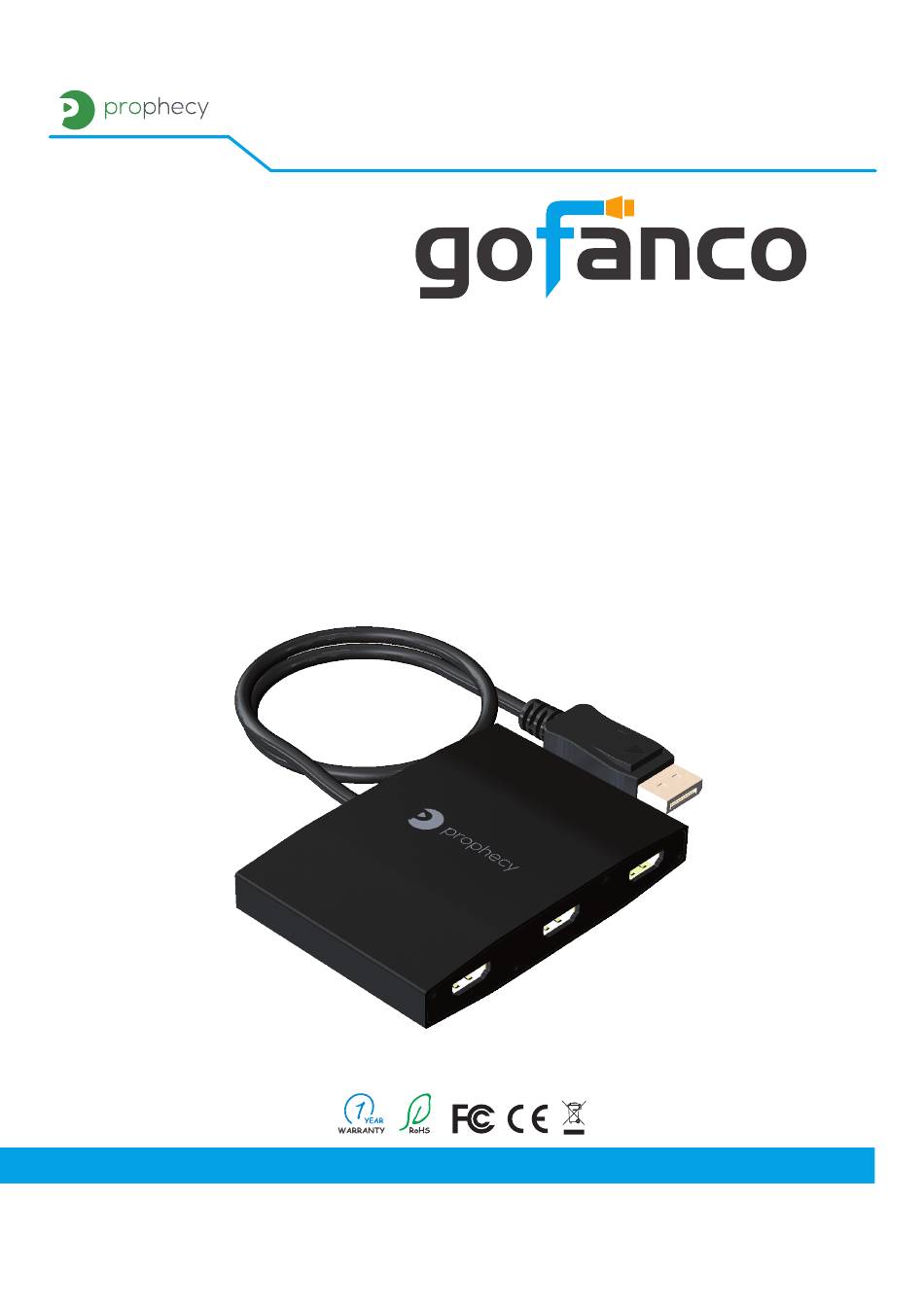

- Page 1 ® PRO-MSTDP3HD 1x3 DisplayPort 1.2 to HDMI MST Hub/Splitter with Pigtail Cable User‘s Guide Made in Taiwan...
- Page 2 ® PRO-MSTDP3HD Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
- Page 3 ® PRO-MSTDP3HD 1. Introduction The PRO-MSTDP3HD 1x3 DisplayPort 1.2 to HDMI MST Hub/ Splitter with Pigtail Cable provides the most cost effective and advanced DisplayPort to HDMI splitter solution on the market, by which the high definition video and high quality audio can be transmitted to 3 different locations without losing quality.
-
Page 4: Specifications
® PRO-MSTDP3HD 4. Specifications Item Description Role of usage 1x3 MST Hub/Distribution Amplifier (Splitter) DP compliance DisplayPort 1.2 HDCP compliance HDCP 1.3 21.6Gbps Video bandwidth Video support See bandwidth resolution distribution on page 6 Audio support LPCM, AC3, DTS Human body model — ±15kV [air-gap discharge] & ESD protection ±8kV [contact discharge] 4-layer board [impedance control —... -
Page 5: Connection Diagram
® PRO-MSTDP3HD 5. Connection Diagram PRO-MSTDP3HD allows user to connect three displays to the Dis- playPort enabled laptop, Ultrabook, or PC. Configure these added monitors anyway you want; works as a splitter with the same con- tent on each monitor, extended mode with independent monitors, or video wall mode joining multiple monitors together as one dis- play. - Page 6 ® PRO-MSTDP3HD Notes 1. Total bandwidth is 21.6Gbps (under MST mode) Resolution % of total bandwidth(21.6Gbps) 3840x2160@30 1920x1200@60 1920x1080@60 The total combined bandwidth among all connected displays must NOT exceed 21.6Gbps 2. Supports UHD video resolutions up to 3840x2160@30, and 7.1ch surround audio to deliver high quality video and au- dio.
-
Page 7: Panel Description
® PRO-MSTDP3HD 6. Panel Description 1. HDMI output 1 4. DisplayPort input 2. HDMI output 2 5. +5V power (Micro-USB) 3. HDMI output 3... - Page 8 ® PRO-MSTDP3HD 7. Notice Notes 1. It is limited to two displays under mirror mode using Windows Display Utility & NVIDIA Utility. 2. It requires either an AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter under Video Wall mode (e.g., Pan- oramic).
- Page 9 ® PRO-MSTDP3HD 11. Limited Warranty The SELLER warrants the PRO-MSTDP3HD 1x3 DisplayPort 1.2 to HDMI MST Hub/Splitter with Pigtail Cable free from defects in the material and workm- anship for 1 year from the date of purchase from the SELLER or an authorized dealer.
- Page 10 ® PRO-MSTDP3HD Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products. We reserve the rights to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
- Page 11 ® PRO-MSTDP3HD...
- Page 12 ® Thank you for choosing gofanco www.gofanco.com Aug, 2019 Ver. A Copyright © by gofanco, LLC. All rights reserved.
