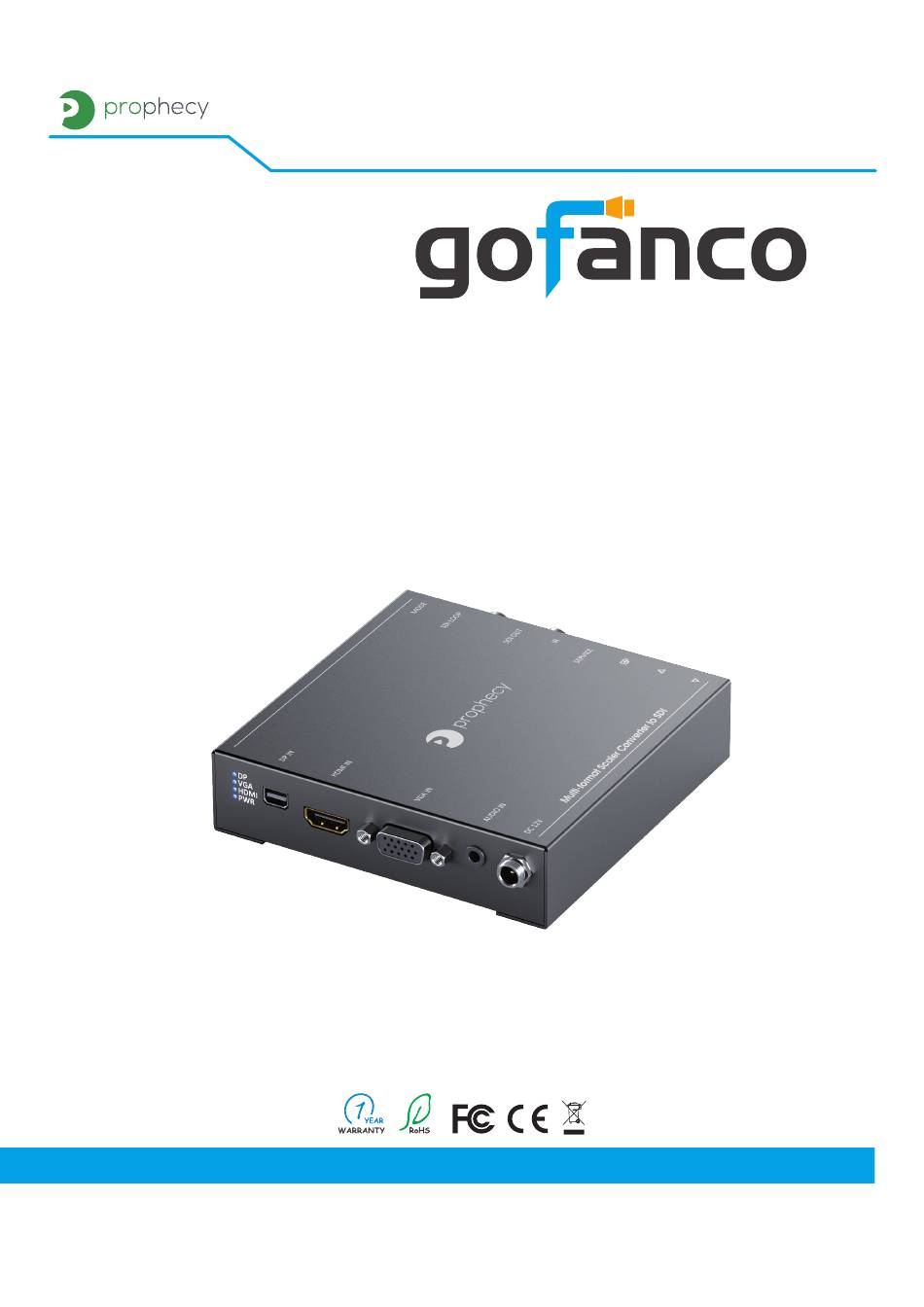

- Page 1 ® PRO-Scaler2SDI HDMI/MiniDP/VGA to 3G/HD/SD-SDI Scaler Converter User‘s Guide Made in Taiwan...
- Page 2 ® PRO-Scaler2SDI Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Table Of Contents
® PRO-Scaler2SDI Table of Contents 1. Safety and Notice ..............2. -
Page 4: Introduction
® PRO-Scaler2SDI 2. Introduction The PRO-Scaler2SDI HDMI/MiniDP/VGA to 3G/HD/SD-SDI Scaler Converter pro- vides a professional way to scale and convert multiple format (HDMI/MiniDP/ VGA) to 3G/HD/SD-SDI format. This device supports video conversion and scaling from analog & digital to 3G/HD/SD-SDI. The conversion between HDMI/MiniDP and SDI is pure digital and guarantees no loss transformation for both audio and video. -
Page 5: Specification
® PRO-Scaler2SDI 5. Specifications Item Description Technical HDMI/MiniDP/VGA to SDI Converter Role of usage SDI standards SD-SDI, HD-SDI & 3G-SDI Input Video Maximum Pixel Rate 165MHz Output Video bandwidth 2.970Gbps, 2.970/1.001Gbps [3G] 1080p @50/59.94/60Hz (4:2:2) [HD] 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, Output Video support 1080p @24/30Hz [SD] NTSC @59.94Hz, PAL @50Hz Audio support... -
Page 6: Connection Diagram
® PRO-Scaler2SDI 6. Connection Diagram... -
Page 7: Panel Description
® PRO-Scaler2SDI 7. Panel Description Front Panel 1. PUSH BUTTON [LEFT]: Down Button [MID]: Up Button [RIGHT]: Menu/Enter Button 2. Micro USB: Firmware update and software control port 3. IR SENSOR: IR sensor for receiving the IR commands from IR remote 4. -
Page 8: Osd Menu
® PRO-Scaler2SDI 8. OSD Menu Output Format Disable, White, Cross, Hatch, Color, Gray, Windows, H-Ramp, W-HRamp, Test Pattern W-VRamp, Diagonal 1.Output Setup Audio Mute Off, On Input Type HDMI, VGA, MiniDP Return Contrast 0~255 of Contrast Level Brightness 0~255 of Brightness Level Saturation 0~255 of Saturation Level 0~255 of Hue Level... -
Page 9: Operation Approach
® PRO-Scaler2SDI 9. Operation Approach Method A: Push-in Button Method B: IR Remote Control Button Function FREEZE Freeze video ASPECT RATIO Aspect ratio change BLANK Blank video EXIT Exit OSD ENTER Enter key Up key LEFT Left key RIGHT Right key DOWN Down key MENU... - Page 10 ® PRO-Scaler2SDI Method C: IR Remote Control through Micro-USB port COM Port Selection COM Port Detection Button Connect/Disconnect Button Output Setup Button Image Button Adjustment Button System Button Input / Output Resolution Info Refresh Input / Output Resolution Info Button 1.
- Page 11 ® PRO-Scaler2SDI 2. COM Port Detection Button Click this button to detect the COM PORT 3. Connect/Disconnect Button 1) Click this button to connect 2) Click this button to disconnect 4. Output Setup Button 5. Image Button 6. Adjustment Button...
- Page 12 ® PRO-Scaler2SDI 7. System Button 1) Input Format: To view the current input resolution 2) F/W Version Information 3) Factory Reset Button 4) Firmware Update Step1: Remove the PSU Step2: Flip dip switch PIN1 to down Step3: Connect the device with micro USB cable to PC Step4: Open the software and select correct comport Step5: Click System >>...
-
Page 13: Limited Warranty
® PRO-Scaler2SDI 10. Limited Warranty The SELLER warrants the PRO-Scaler2SDI HDMI/MiniDP/VGA to 3G/HD/SD-SDI Scaler Converter to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges. - Page 14 ® PRO-Scaler2SDI...
- Page 15 ® PRO-Scaler2SDI Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products. We reserve the rights to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
- Page 16 ® Thank you for choosing gofanco www.gofanco.com Apr, 2020 Ver. C Copyright © by gofanco, LLC. All rights reserved.
