INSTRUCTION MANUAL
GUIDE FOR USING THE DISHWASHER AND THE WASHING PROGRAMS

Advertisement

loading

Related Manuals for Smeg STU8649X

Summary of Contents for Smeg STU8649X

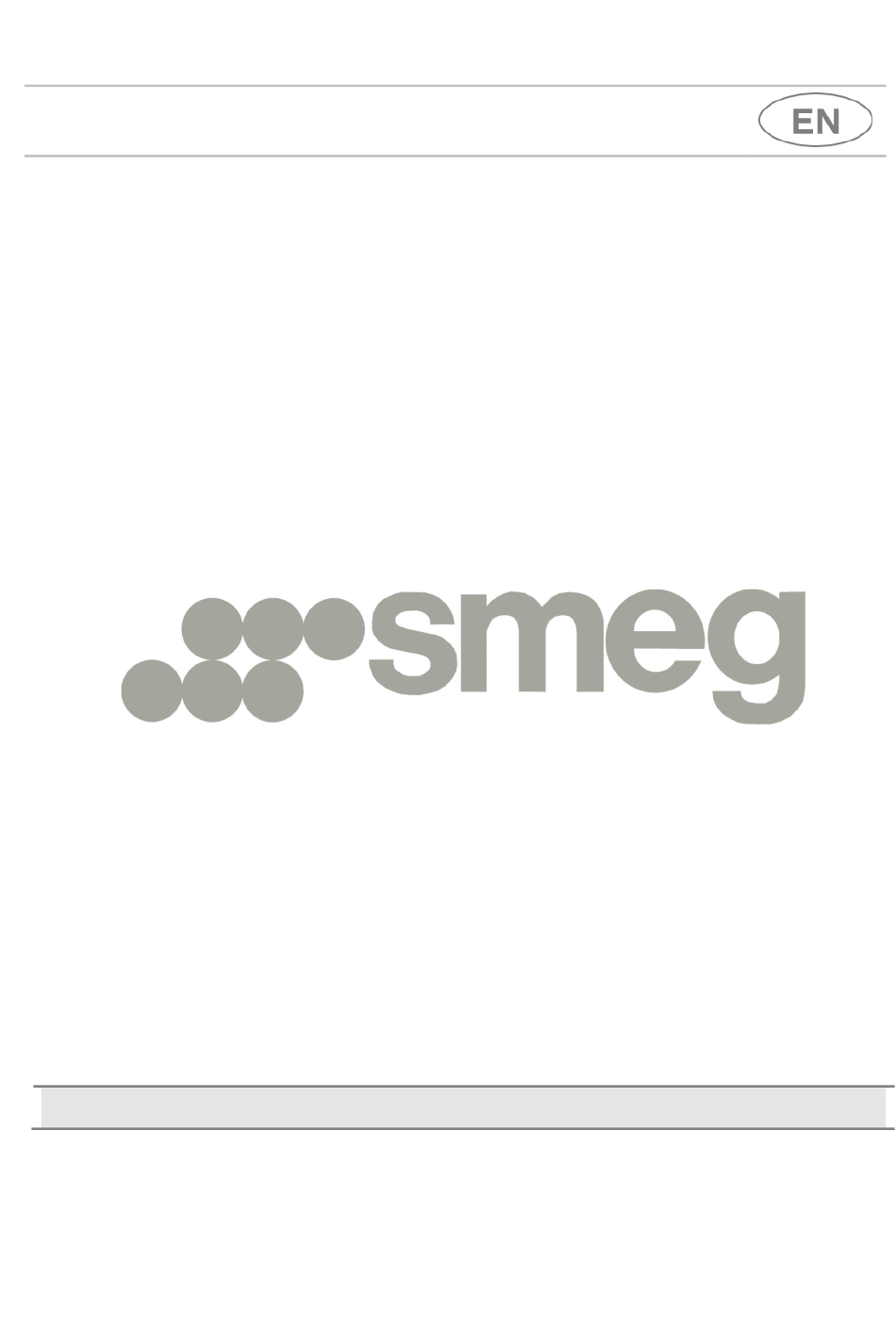

  • Page 1 INSTRUCTION MANUAL GUIDE FOR USING THE DISHWASHER AND THE WASHING PROGRAMS...
  • Page 3 CONTENTS CONTENTS CONTENTS Contents Contents INTRODUCTION ........................3 INTRODUCTION ........................3 DESCRIPTION OF THE CONTROLS..................5 DESCRIPTION OF THE CONTROLS..................5 Upper panel ........................5 Upper panel ........................5 Setting the washing program and switching on and off ......6 Setting the washing program and switching on and off ......6 2.2.1 Switching on .......................9 2.2.1 Switching on .......................9 2.2.2 Selecting and starting the program ..............
  • Page 5 INTRODUCTION INTRODUCTION INTRODUCTION Thank you for choosing one of our products. To use this dishwasher correctly and safely, please read this manual carefully. The manual is divided into sections giving you a step-by-step guide to all your appli- ance’s functions. The texts are easy to understand and are complete with detailed illus- trations.
  • Page 6 INTRODUCTION INTRODUCTION Symbols used in this manual (see tab. 1-01) DANGER. This symbol highlights information and warnings which, if not observed, may compromise personal safety or dam- age the appliance. DANGER OF ELECTROCUTION. This symbol highlights informa- tion and warnings of an electrical nature which, if not observed, may compromise personal safety or damage the appliance.
  • Page 7 USER INSTRUCTIONS USER INSTRUCTIONS t l l fi . ) 1 dishwasher can only be switched on, programmed, switched off, etc. with the door open. A brief description (see tab. 2-01) of the various controls on the upper panel is given below.
  • Page 8 USER INSTRUCTIONS USER INSTRUCTIONS USER INSTRUCTIONS On/off button Press to power the appliance. On/off button Program indicator lights Press to power the appliance. These show which program is selected and whether there are any faults Program indicator lights (Troubleshooting). These show which program is selected and whether there are any faults Program selection button (Troubleshooting).
  • Page 9 USER INSTRUCTIONS To select the most suitable program for the dishes to wash, consult the following table which specifies the most appropriate type of washing sequence depending on the kind of dishes and how dirty they are (see tabs. 2-02a and 2-02b) ½...
  • Page 10 USER INSTRUCTIONS ½ QuickTime Auto Sanitized QuickTime DURA- CONSUMPTION LOAD TION PROGRAMME, NUMBER & PROGRAM CROCKERY MINUTES ENERGY SYMBOL PROGRESS WATER AND CUTLERY KWH (1) Dishes with Wash at 38°C Auto light dirt, (100°F) 6.5l RAPID 27’ washed im- Rinse at 50°C 1.72gal.
  • Page 11 USER INSTRUCTIONS USER INSTRUCTIONS Only run the soak program with half loads. To run programmes 6, 7, 8, 9, 10, select the required standard programme and then press the quick time option button (ref. 6 fig. 2-02). After using the above tables to choose the most suitable washing cycle, program the appliance.
  • Page 12 USER INSTRUCTIONS USER INSTRUCTIONS program selection button (ref. 3 fi g. 2-02) several times until • the indicator light corresponding to the required program turns on (ref. 2 fi g. 2-02); • if required, press the relative buttons to select any complementary functions (e.g.: “extra drying”, “program delay”;...
  • Page 13 USER INSTRUCTIONS USER INSTRUCTIONS • program selection button (ref. 3 fi g. 2-02) for a few seconds until the indi- cator lights of the fourth and fi fth programs turn on (ref. pr. 4, pr. 5 fi g. 2-03). • Close the door again. •...
  • Page 14 USER INSTRUCTIONS USER INSTRUCTIONS indi- s t i cator lights of the fourth and fi fth program (ref. pr. 4, pr. 5 fi g. 2-04) fl ash. Turn off the appliance by opening the door and pressing the on/off button (ref. 1 fi...
  • Page 15 USER INSTRUCTIONS Additional functions 2.3.1 ADJUSTING THE WATER SOFTENING SYSTEM Adjusting the water softener (on some models only) 2.3.1 The dishwasher is equipped with a device which allows the softener setting to be N.B.: a different washing program from soak must be used to make varied to suit the hardness of the mains water.
  • Page 16 USER INSTRUCTIONS USER INSTRUCTIONS RESPECT • Always try to run the dishwasher fully loaded. • Do not wash the dishes under a running tap. • Use the most suitable washing program for each type of load. • Do not pre-rinse. •...
  • Page 17 USER INSTRUCTIONS USER INSTRUCTIONS The dishwasher can to signal a number of malfunctions by turning on various g i l , s t b i r o l l : ) e FAULT DESCRIPTION Acquastop failure The anti-fl ooding system has tripped (only for models fi...
  • Page 18 USER INSTRUCTIONS USER INSTRUCTIONS FAULT DESCRIPTION USER INSTRUCTIONS USER INSTRUCTIONS Water pump-out malfunction The appliance does not pump out the water or does so USER INSTRUCTIONS incorrectly. Make sure the drain hose is not kinked or FAULT crushed and that the siphon and fi lters are not clogged. DESCRIPTION ½...
  • Page 19 USER INSTRUCTION USER INSTRUCTIONS USER INSTRUCTION OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS BEFORE STARTING TO USE THE APPLIANCE, MAKE SURE YOU HAVE BEFORE STARTING TO USE THE APPLIANCE, MAKE SURE YOU HAVE READ AND UNDERSTOOD ALL THE WARNINGS CONTAINED IN CHAP- READ AND UNDERSTOOD ALL THE WARNINGS CONTAINED IN CHAP- TER 2 “IMPORTANT SAFETY INSTRUCTION”.
  • Page 20 USER INSTRUCTIONS USER INSTRUCTIONS Fig. 5-02 • When using the dishwasher for the first time, in addition to the salt it is also necessary to add one liter of water to the container. • Each time the salt container is refilled, make sure that the cap (ref. A fig. 5-01) is securely closed.
  • Page 21 • adjust the water softening system; USER INSTRUCTIONS • add the regenerating salt; • add the rinse-aid and detergent. Using the rinse-aid and detergent dispensers The detergent and rinse aid dispensers are situated on the inner part of the door: the detergent dispenser (ref.
  • Page 22 USER INSTRUCTIONS USER INSTRUCTIONS 5.2.1 Adding the rinse-aid The rinse aid helps the dishes dry faster and prevents the formation of scale deposits and staining; it is automatically added to the water during the final rinse cycle, from the container situated on the inner side of the door. Fig.
  • Page 23 USER INSTRUCTIONS USER INSTRUCTIONS • To adjust the rinse aid setting, rotate the dispenser cover (ref. A fig. 5-04) through a quarter turn in an anticlockwise direction and remove it. • Then use a screwdriver to rotate the rinse aid selector to the desired position. •...
  • Page 24 USER INSTRUCTIONS USER INSTRUCTIONS Fig. 5-06 • When a program with hot prewash is selected (see program table in the “De- scription of Controls” manual), extra detergent must be placed in the cavity (ref. A or B fig. 5-06, depending on models). Only use dishwasher-specific detergents.
  • Page 25 USER INSTRUCTIONS USER INSTRUCTION • When using detergent tabs, place them in the cutlery basket. The dispenser has been designed for powder or liquid detergent. As the cover does not open completely d uring the washing cycle, t abs are not f ully released ( dissolved). This could generate the following problems: rinse cycle.
  • Page 26 USER INSTRUCTION USER INSTRUCTIONS MAKE SURE that the items being washed are dishwasher-safe. Items which are not dishwasher-safe: • Wooden dishes, pots or pans: these may be damaged by the high washing temperatures. • Handcrafted i tems: these a re r arely suitable for washing in a d ishwasher. The relatively high water temperatures and the detergents used may damage them.
  • Page 27 USER INSTRUCTIONS USER INSTRUCTION The dishwasher has a capacity of 13 place-settings, including serving dishes. Examples of loading 13 place-settings in the upper rack (see fig. and in the 5-07) lower rack (see fig . 5-08) are shown below. Fig. 5-07 Fig.
  • Page 28 USER INSTRUCTION USER INSTRUCTIONS 5.4.1 The lower rack receives the full force of the lower spray arm, and should there- fore be used for the “toughest” items with a heavier degree of soiling. All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces exposed to the water jets coming from the bottom.
  • Page 29 USER INSTRUCTION USER INSTRUCTIONS Loading the lower rack (see fig. 5-10) y l l fl o i t ing them vertically. Pots, pans and their covers must be loaded upside down. When loading soup plates and dessert bowls, be sure to leave a gap between them.
  • Page 30 USER INSTRUCTION USER INSTRUCTIONS 5.4.2 (see fig. 5-11/5-12 depending on models) The basket h as removable top grids i nto which items of c utlery s hould be inserted to keep them properly spaced and allow water to pass between them effectively.
  • Page 31 USER INSTRUCTIONS USER INSTRUCTION 5.4.3 (see fig. 5-13) Depending on the models, the basket may be equipped with some or all of the following accessories: - Supports f or cups o r long objects (ladles, s poons…), on t he l eft; can b e tipped to the vertical position when not in use.
  • Page 32 USER INSTRUCTION USER INSTRUCTIONS (see Þ g. 4-14) (see fig. 5-12) 5-14) Load plates facing forward; cups, bowls etc. must always be facing downwar- ds. The left-hand side of the rack can be loaded with two layers of cups and glasses.
  • Page 33 USER INSTRUCTIONS USER INSTRUCTION Adjusting the upper rack e f f o i t The upper rack can be set in three di erent positions on both sides. The rack must must be level on both sides. be level on both sides. To raise the rack (ref.
  • Page 34 USER INSTRUCTIONS USER INSTRUCTION...
  • Page 35 USER INSTRUCTIONS USER INSTRUCTION Cleaning the water intake filter Clean the water inlet fil er at regular intervals. After closing the delivery tap, unscrew the ring nut (ref. A fig. 6-01) on the water inlet pipe (using a pair of pliers, if neces- sary) and delicately clean the fil er, removing deposits or impurities.
  • Page 36 USER INSTRUCTIONS USER INSTRUCTION Fig. 5-02 Fig. 6-02 Fig. 6-03 Fig. 5-03 • • • • • • •...
  • Page 37 USER INSTRUCTIONS USER INSTRUCTION 6-04 Cleaning the filter unit • Periodically inspect the filter unit (ref. A fig. 5-04) and, if necessary, clean it 6-05 under running water (at room temperature), using a stiff brush. To remove the filter, grip the tabs, turn anticlockwise and lift upwards; •...
  • Page 38 USER INSTRUCTION WARNINGS General warnings and recommendations for correct maintenance • Clean the filters under running water (at room temperature) using a stiff brush. • When removing the filter, take care that there are no food residues on it. If any residues fall into the washing pit (ref. A fig. 5-06), they might block hydraulic components or foul the spray arm nozzles.
  • Page 39 USER INSTRUCTION WARNINGS...
  • Page 40 USER INSTRUCTION WARNINGS...
  • Page 41 WARNINGS WARNINGS IMPORTANT SAFETY INSTRUCTION (Save this instructions) THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUC- TIONS CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE.
  • Page 42 WARNINGS WARNINGS BEFORE PROCEEDING WITH INSTALLATION, DISCONNECT THE MAINS POWER SUPPLY FROM THE WORK AREA. DO NOT USE EXTENSION CORDS, ADAPTORS OR SHUNT CONNEC- TIONS IN ORDER TO AVOID THE POSSIBILITY OF OVERHEATING OR BURNING WITH CONSEQUENT FIRE HAZARD. DURING INSTALLATION, TAKE CARE NOT TO INJURE YOURSELF ON THE SHARP EDGES OF THE APPLIANCE;...
  • Page 43 WARNINGS WARNINGS DO NOT INHALE OR SWALLOW DETERGENT AS THIS MAY CAUSE BURNS AND/OR PERMANENT DAMAGE TO THE NOSE, MOUTH AND THROAT, AND EVEN LEADING TO SUFFOCATION; KEEP DETERGENT AWAY FROM YOUR EYES. IF ONE OF THE ABOVE SITUATIONS OCCURS, SEEK MEDICAL ASSISTANCE IMMEDIATELY.
  • Page 44 WARNINGS WARNINGS DO NOT INTRODUCE ANIMALS INTO THE DISHWASHER. WHEN OPENING THE DISHWASHER DOOR DURING A CYCLE THERE IS A RISK OF SCALDING DUE TO THE HEAT CONTAINED INSIDE; DO NOT GET IN THE WAY OF THE STEAM LEAVING THE APPLIANCE AND DO NOT TOUCH THE COMPONENTS INSIDE.
  • Page 45 WARNINGS WARNINGS AQUASTOP MODELS; THE AQUASTOP DEVICE PREVENTS FLOOD- ING IN THE EVENT OF A WATER LEAK. WHEN THE AQUASTOP DEVICE IS TRIPPED (THE ERROR IS INDICATED ON THE DISPLAY), CALL IN A QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT. IN MODELS EQUIPPED WITH THE AQUASTOP DEVICE, THERE IS A SO- LENOID VALVE INSIDE THE WATER INTAKE HOSE.
  • Page 46 WARNINGS WARNINGS BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY, YOU WILL HELP PREVENT POTENTIAL NEGATIVE CONSEQUENCES FOR THE EN- VIRONMENT AND HUMAN HEALTH. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO PERSONS, ANIMALS OR PROPERTY RESULTING FROM FAILURE TO OBSERVE THE ABOVE PRECAUTIONS, FROM TAMPERING WITH EVEN A SINGLE COMPONENT OF THE APPLI- ANCE, OR FROM THE USE OF UNORIGINAL SPARE PARTS.
  • Page 47 INSTALLATION INSTRUCTIONS USER INSTRUCTIONS INSTALLATION AND HOOK-UP To install and hook up this appliance, consult the attached installation manual. Bear in mind the following warnings when installing and hooking up the dishwasher. DURING INSTALLATION, TAKE CARE NOT TO INJURE YOURSELF ON THE SHARP EDGES OF THE APPLIANCE;...
  • Page 48 INSTALLATION INSTRUCTIONS USER INSTRUCTIONS BEFORE MAKING ELECTRICAL CONNECTIONS, DISCONNECT THE MAINS POWER SUPPLY FROM THE WORK AREA. CHECK THAT THE MAINS SUPPLY IN THE PLACE OF INSTALLATION COMPLIES WITH THE REGULATIONS IN FORCE IN THE COUNTRY OF USE, AND THAT IT IS CORRECTLY EARTHED. THIS APPLIANCE MUST BE EARTHED.
  • Page 49 USER INSTRUCTIONS USER INSTRUCTION 9-01 from 82 cm to 89 cm (from 32-9/32” to 35-3/64”) Tab. 9-01...
