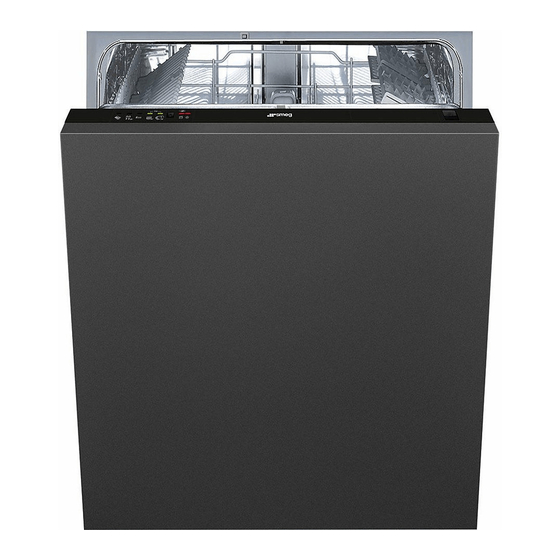

Smeg STL2323DE Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Contents
1. Safety and operating instructions __________________________ 2
2. Installation and hook-up _________________________________ 7
3. Description of the controls ______________________________ 12
4. Operating instructions __________________________________ 21
5. Cleaning and maintenance ______________________________ 34
6. Troubleshooting ______________________________________ 38
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use of
your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
Recommendations are given for the correct use of the baskets, spray
arms, containers, filters, washing programs, and for operating the controls.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
This user-friendly manual will provide answers to all your questions about
use of the dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, hook-up and testing of the
appliance.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.
1

Advertisement

loading

Related Manuals for Smeg STL2323DE

Summary of Contents for Smeg STL2323DE

  • Page 1: Table Of Contents

    Contents 1. Safety and operating instructions __________________________ 2 2. Installation and hook-up _________________________________ 7 3. Description of the controls ______________________________ 12 4. Operating instructions __________________________________ 21 5. Cleaning and maintenance ______________________________ 34 6. Troubleshooting ______________________________________ 38 Thank you for choosing one of our products. You are advised to read this manual carefully;...

  • Page 2: Safety And Operating Instructions

    User instructions 1. Safety and operating instructions THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE; IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER FOR FUTIRE REFERENCE. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. THEY CONTAIN IMPORTANT INFORMATION FOR THE INSTALLATION, USE AND MAINTENANCE OF THE APPLIANCE.
  • Page 3 User instructions DURING THE INSTALLATION THE APPLIANCE MUST BE DISCONNECTED FROM THE NETWORK.. DO NOT INSTALL THE APPLIANCE IN A PLACE SUBJECT TO FREEZING. IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR, ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT OBSTRUCTED. DO NOT INSTALL THE APPLIANCE NEAR EQUIPMENT WITH HIGH IRRADIATION TEMPERATURES (EG.
  • Page 4 User instructions THE APPLIANCE MUST BE CONNECTED TO THE WATER SUPPLY BY NEW HOSES; OLD HOSES MUST NEVER BE REUSED. IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK TEST OF THE APPLIANCE. IF THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST TECHNICAL SERVICE CENTRE.
  • Page 5 User instructions IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP. IN THE EVENT OF DAMAGE TO THE SUPPLY CORD, HAVE IT REPLACED BY THE MANUFACTURER OR AN AUTHORIZED TECHNICAL SERVICE CENTRE. SOME COMPONENTS ARE LIVE EVEN WITH THE ON/OFF BUTTON IN THE OFF POSITION.
  • Page 6 User instructions PREVENTING ANY POSSIBLE NEGATIVE EFFECTS ON ENVIRONMENT AND HEALTH; ALSO, IT SUPPORTS THE REUSE AND/OR RECYCLE OF THE MATERIALS WHICH COMPOSED THE DEVICE. OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET, AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR CHILDREN (LOCKS, DOORS, CABLES, HOSES, ETC.).

  • Page 7: Installation And Hook-Up

    User instructions 2. Installation and hook-up Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance.
  • Page 8 User instructions Water supply connection Preventing the risk of clogging or damage: if the water pipe is new or has not been used for a long time, before connecting to the water supply check that the water is clear and free of impurities, to prevent damage to the appliance.
  • Page 9 User instructions DRAIN CONNECTION Insert the dishwasher’s drain hose into a drain pipe having a diameter of at least 4 cm, or alternatively, place it inside the kitchen sink using the plastic support provided, taking care not to crush or excessively bend the hose.
  • Page 10 User instructions Electrical connection and precautions CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON THE INNER EDGE OF THE DOOR. THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN FORCE.
  • Page 11 User instructions Class of protection against electric shock: I FOR GREAT BRITAIN ONLY: THIS APPLIANCE MUST BE EARTHED. Fuse replacement If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A.

  • Page 12: Description Of The Controls

    User instructions 3. Description of the controls Front panel All the dishwasher controls are grouped on the upper panel. Switch-on, programming, switch-off, etc. procedures are only possible when the door is open. The panel shown is only a guideline example: the form of the lights and buttons may vary depending on the model.
  • Page 13 User instructions <<OPTIONS(6)>> Depending on the model, this zone may contain one or more of the following options, identified by the relative symbols and described in more detail in the relevant sections of the manual. It is not possible to select any options when the soak program is being used.
  • Page 14 User instructions PROGRAMS TABLE The manual contains the programs table for several models. To find the table for your dishwasher, compare the program symbols at the top of the table with those on your control panel. SETTING THE WASHING PROGRAM AND SWITCHING ON After identifying the most suitable program with the aid of the programs table: Press the ON/OFF button (1) and wait for the PROGRAM...
  • Page 15 User instructions PROGRAMS TABLE DURATION CONSUMPTION PROGRAMME LOAD CROCKERY AND PROGRAM NUMBER CUTLERY PROGRESS MINUTES POWER WATER & SYMBOL KWh (1) LITRES 1 SOAK Pans and dishes awaiting 0,02 Cold prewash completion of the load Wash at 45°C 2 GLASS Glass, china and mixed Cold rinse dishes with light dirt.
  • Page 16 User instructions ENERSAVE Enersave function, which allows a further reduction in power consumption, is only activated at the end of the Eco program.At the end of the program an automatic device releases the door, which slowly opens by a few centimetres (brief acoustic signal). This allows optimal drying, even with low rinsing temperatures, for significant energy savings.
  • Page 17 User instructions Washing programs Before starting a washing program make sure that:  The water supply tap is open.  The softener container contains regenerating salt.  The correct amount of detergent has been added to the dispenser. The baskets have been correctly loaded. ...
  • Page 18 User instructions Flexi Tabs Specifically for washing with combination detergents in tablets, which also contain salt and rinse aid or other agents such as glass protector, steel rinse aids, etc. When this option is selected, salt and rinse aid will not be dispensed even if the relative compartments contain them.
  • Page 19 User instructions SPREAD HALF LOAD Suitable when there are not many dishes to be washed, it saves energy and reduces the program duration. Place dishes in both baskets then load the detergent dispenser than less than the normal amount for a full load. PROGRAM DELAY The start of the program can be delayed by 3, 6 or 9 hours.
  • Page 20 User instructions TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT Always use the dishwasher with a full load.   Do not wash the dishes in running water. Use the washing program that is most appropriate for each type of ...

  • Page 21: Operating Instructions

    User instructions 4. Operating instructions Once the dishwasher has been correctly installed, prepare for use as follows: Adjust the water softening system;  Add the regenerating salt;  Add the rinse aid and detergent.  Using the water softening system The amount of scale contained in the water (water hardness index) can cause whitish staining on the dry dishes, which tend to...
  • Page 22 User instructions Do not use table salt as it contains insoluble substances which, over  time, may damage the water softening system. When necessary, refill the regenerating salt container before  starting the washing program. In this way, the excess saline solution will be immediately removed by the water;...
  • Page 23 User instructions WATER HARDNESS TABLE WATER HARDNESS SETTING German French degrees (°dH) Degrees (°dF) All lights off 0 - 6 0 - 11 (no salt) One light on 7 - 10 12 - 18 Two lights on 11 - 15 19 - 27 Three lights on 16 - 21...
  • Page 24 User instructions ADDING THE RINSE AID The rinse aid helps the dishes dry faster and prevents the formation of scale deposits and staining; it is automatically added to the water during the final rinse cycle, from the container situated on the inner side of the door. To add rinse aid: ...
  • Page 25 User instructions ADDING THE DETERGENT To open the detergent dispenser cap, lightly press the button P. Add the detergent and close the cap carefully. During the washing cycle, the dispenser will be opened automatically. When a program with hot prewash is selected (see program table), ...
  • Page 26 User instructions The introduction of detergent into the rinse aid dispenser, even in liquid form, will damage the dishwasher. General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading.
  • Page 27 User instructions WARNING! Make sure that the dishes are securely in place so that they cannot  tip over or obstruct the rotation of the spray arms during the washing cycle.  Do not place very small objects in the baskets as these could fall and obstruct the spray arms or the wash pump.
  • Page 28 User instructions Using the baskets Capacity, including serving dishes: 12 or 13 place settings depending on model (see energy label). LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling. All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces...
  • Page 29 User instructions LOADING THE LOWER BASKET Carefully load flat plates, soup plates, dessert and serving dishes, positioning them vertically. Pots, pans and their covers must be loaded upside down. When loading soup plates and dessert bowls, be sure to leave a gap between them. Loading examples: UPPER BASKET The upper basket should be loaded with small or medium-sized items...
  • Page 30 User instructions CUTLERY BASKET The basket has removable top grids into which items of cutlery should be inserted to keep them properly spaced and allow water to pass between them effectively. The top grids and central lid are in the bag of accessories.
  • Page 31 User instructions EXAMPLES OF LOADING FOR INTENSIVE DIRT 12 Standard place setting If the bottom basket inserts are of the fold-down type, they should be laid flat for easier loading. 13 Standard place setting If the bottom basket inserts are of the fold-down type, they should be laid flat for easier loading.
  • Page 32 User instructions Depending on the models, the basket may be equipped with some or all of the following accessories: Supports for cups or long objects (ladles, spoons…), on the left; can be tipped to the vertical position when not in use. Long-stemmed glass holder, on the left;...
  • Page 33 User instructions ADJUSTING THE UPPER BASKET The height of the top basket can be adjusted to allow large dishes or pans to be placed in the bottom basket. The adjustment procedure may be type A or B, depending on the dishwasher model purchased.

  • Page 34: Cleaning And Maintenance

    User instructions 5. Cleaning and maintenance Before carrying out any work, always unplug the appliance from the electrical supply or switch off the all-pole disconnection device. General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces.
  • Page 35 User instructions CLEANING THE FILTER UNIT It is advisable to periodically inspect the centre filter C and, if  necessary, to clean it. To remove the filter, grip the tabs, turn them anticlockwise and lift upwards;  push the centre filter D from the underside to remove it from the micro- filter: ...
  • Page 36 User instructions BEFORE STARTING THE DISHWASHER AFTER PROLONGED DISUSE:  Check that there are no deposits of sludge or rust inside the water pipe: if there are, allow the water to run from the water supply tap for a few minutes. Plug the power cord back into the socket.
  • Page 37 User instructions If the dishes fail to dry or remain dull, check that:  there is rinse aid inside the special container; the rinse aid dispenser setting is correct;   the detergent used is of good quality and has not lost its effectiveness (for example, through incorrect storage, with the box left open).

  • Page 38: Troubleshooting

    User instructions 6. Troubleshooting The dishwasher is capable of signalling a number of faults through the simultaneous illumination of several indicator lights, with the following meanings: FAULT DESCRIPTION Acquastop failure The anti-flooding system has been activated (for the relevant models only). The system is tripped in case of water leaks.
  • Page 39 User instructions FAULT DESCRIPTION Turbine flow-regulator malfunction (for the relevant models only) The appliance is not able to "measure" the amount of water loaded accurately. Interrupt the program and switch off the dishwasher. Switch the dishwasher back on, program it again and start the washing cycle.
