Smeg CIR575XS5 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1.
2.
POSITIONING OF THE HOB ________________________________ 6
3.
GAS CONNECTION ______________________________________ 10
4.
ELECTRICAL CONNECTION _______________________________ 12
5.
6.
FINAL OPERATIONS _____________________________________ 15
7.
USING THE HOB _________________________________________ 17
8.
CLEANING AND MAINTENANCE ____________________________ 20
9.
PROBLEMS AND CAUSES _________________________________ 22
Thank you for choosing our product.
We advise you to read this manual carefully. It contains all necessary
instructions for maintaining unaltered the appearance and functional
qualities of the hob.
NSTRUCTIONS FOR THE INSTALLER: these are for the authorised
persons who must carry out a suitable check of the gas system, install
the appliance, set it functioning and carry out an inspection test.
INSTRUCTIONS FOR THE USER: these contain user advice,
description of the commands and the correct procedures for cleaning
and maintenance of the appliance.
Contents
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIR575XS5 and is the answer not in the manual?

Questions and answers

Related Manuals for Smeg CIR575XS5

Summary of Contents for Smeg CIR575XS5

  • Page 1: Table Of Contents

    Contents INSTRUCTIONS FOR SAFE AND PROPER USE ________________ 4 POSITIONING OF THE HOB ________________________________ 6 GAS CONNECTION ______________________________________ 10 ELECTRICAL CONNECTION _______________________________ 12 ADAPTATION TO DIFFERENT TYPES OF GAS ________________ 13 FINAL OPERATIONS _____________________________________ 15 USING THE HOB _________________________________________ 17 CLEANING AND MAINTENANCE ____________________________ 20 PROBLEMS AND CAUSES _________________________________ 22 Thank you for choosing our product.

  • Page 2: Instructions For Safe And Proper Use

    Instructions for the installer 1. INSTRUCTIONS FOR SAFE AND PROPER USE THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE HOB. WE ADVISE READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE USING THE HOB.
  • Page 3 Instructions for the installer THE IDENTIFICATION PLATE, WITH TECHNICAL DATA, SERIAL NUMBER AND MARKING IS CLEARLY VISIBLE UNDER THE CASING. THE DUPLICATE DATA PLATE MUST BE ATTACHED TO AN ADJACENT SURFACE. BEFORE CONNECTING THE DEVICE, MAKE SURE THAT IT HAS BEEN REGULATED FOR THE TYPE OF GAS THAT WILL FEED IT, CHECKING THE LABEL UNDER THE CASING.

  • Page 4: Positioning Of The Hob

    Instructions for the installer 2. POSITIONING OF THE HOB It is the law that all gas appliances are installed by authorised persons. Clearance around the appliance must comply with the requirements of AS5601. The following operation requires building and/or carpentry work so must be carried out by a competent tradesman.
  • Page 5 Instructions for the installer Overall dimensions: location of gas and electrical connection points (all measures in mm). 30 CM 70 CM...
  • Page 6 Instructions for the installer 2.2 Clearance above and around domestic appliances Extract from AS5601 REQUIREMENTS 1 Overhead clearances – (Measurement A) Range hoods and exhaust fans shall be installed in accordance with the manufacturer’s instructions. However, in no case shall the clearance between the highest part of the hob of the cooking appliance and a range hood be less than 600 mm or, for an overhead exhaust fan, 750 mm.
  • Page 7 Instructions for the installer 2 Side clearances – (Measurements B & C) Where B, measured from the periphery of the nearest burner to any vertical combustible surface, is less than 200 mm, the surface shall be protected in accordance with Clause 5.12.1.2 to a height C of not less than 150 mm above the hob for the full dimension (width or depth) of the cooking surface area.

  • Page 8: Gas Connection

    Instructions for the installer 2.4 Discharge of combustion products Discharge of combustion products must be guaranteed by means of hoods connected to a natural draught flue with certain efficiency, or by means of forced aspiration. An efficient aspiration system requires careful planning by a specialist capable of installing it, respecting the positions and distances prescribed by standards.
  • Page 9 Instructions for the installer The appliance must be installed with provision to allow the gas to be turned off and disconnected for servicing and removal of the appliance as required from the gas supply. Before the appliance is operated make certain all relevant parts are placed in the correct position.

  • Page 10: Electrical Connection

    Instructions for the installer 4. ELECTRICAL CONNECTION Make sure that the voltage and capacity of the power line conform to the data shown on the plate located under the casing. Do not remove this plate for any reason. The plug on the end of the supply cable and the wall socket must be the same type and conform to the current electrical system regulations.

  • Page 11: Adaptation To Different Types Of Gas

    Instructions for the installer 5. ADAPTATION TO DIFFERENT TYPES OF GAS Before performing any cleaning or maintenance work, detach the appliance from the electrical socket. The hob has been adjusted for natural gas at a pressure of 1.0kPa. For functioning with other types of gas the nozzles must be replaced and the primary air adjusted.
  • Page 12 Instructions for the installer 5.2 Adjustment for ULPG Loosen screw A and push support B all the way. Use a double head wrench to remove nozzle C and assemble the suitable one, following the instructions indicated in the reference charts, with respect to the type of gas to use.

  • Page 13: Final Operations

    Instructions for the installer 5.3 Adjustment for natural gas The hob has been adjusted for natural gas at a pressure of 1.0kPa. To allow the unit to work back with this type of gas, after it has been adjusted for ULPG, perform the same operations described in paragraph “5.2 Adjustment for ULPG”, but refer to the following table for the proper injectors.

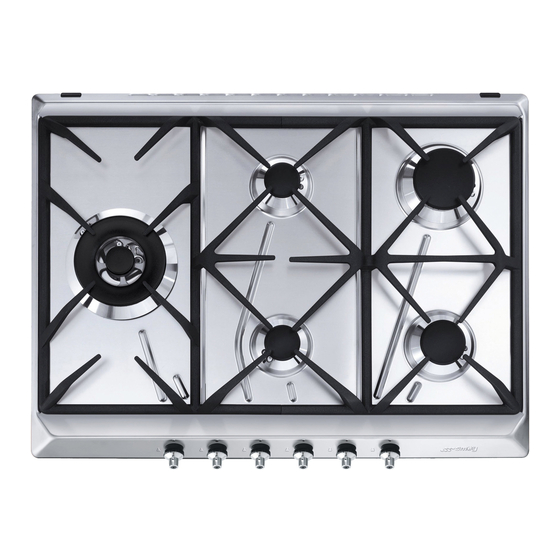

  • Page 14 Instructions for the installer 6.2 Arrangement of burners on the hob Burners Auxiliary Semi rapid 3 - 6 Rapid Wok (dual control) 6.3 Lubrication of gas taps With time it may happen that the gas taps get blocked and hard to turn. Clean them inside and re-grease them.

  • Page 15: Using The Hob

    Instructions for the user 7. USING THE HOB Before turning on the burners, make sure that the burner rings, caps and grids have been fitted correctly. In the wok burner, notch A must be aligned with pin B. Grid C provided is intended for use with woks (Chinese pans). Adapter D comes only with open grids models and is intended for use with small sized vessels.
  • Page 16 Instructions for the user 7.2 Practical advice for using the burners For better use of the burners and lower gas consumption, use covered containers that are proportional in size to the burner to prevent the flame from licking the sides (see paragraph “7.3 Diameter of containers”).
  • Page 17 Instructions for the user 7.4.2 Using the electric elements The electric elements are ideal for ultrarapid cooking. The settings shown in the table are merely indicative. POSITION HEAT POSSIBLE COOKING INTENSITY To melt butter, chocolate, etc. Weak To heat small amounts of liquid. Soft To heat larger amounts of liquid.

  • Page 18: Cleaning And Maintenance

    Instructions for the user 8. CLEANING AND MAINTENANCE Before any intervention, disconnect the power supply of the device. 8.1 Cleaning Clean the top regularly every time you use it, obviously after it has cooled. 8.1.1 Regular daily cleaning of the hob In order to clean and preserve the surface, always use specific products only, which do not contain abrasive substances or chlorine-based acid substances.
  • Page 19 Instructions for the user 8.3 Preventive maintenance This appliance does not need any special maintenance. However, a few simple operations have to be carried out periodically to prevent malfunctioning: Burners: the burners must be cleaned after every use to ensure correct combustion;...

  • Page 20: Problems And Causes

    Instructions for the user 9. PROBLEMS AND CAUSES Each of the following cases is caused by an abnormal operation of the appliance and should be dealt with by a authorised persons: please contact your local dealer or Service Center in case you detect any of these malfunctioning.

This manual is also suitable for:

Cir574xs3
