Preface
Thanks for your favor in our product. To derive optimum performance from the product, please read
this manual, the corresponding TETRA Terminal Series Feature Book and the Safety Information
Booklet carefully before use.
This manual is applicable to the following model:

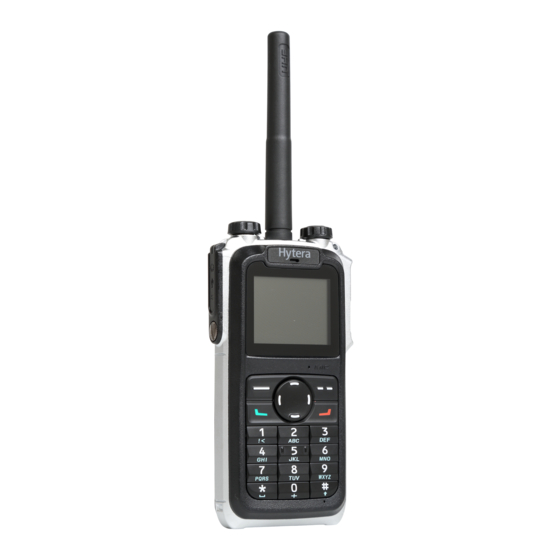

Z1p TETRA Portable Terminal
12
Advertisement
Table of Contents
Related Manuals for Hytera Z1PF5 TETRA
Summary of Contents for Hytera Z1PF5 TETRA
- Page 1 Preface Thanks for your favor in our product. To derive optimum performance from the product, please read this manual, the corresponding TETRA Terminal Series Feature Book and the Safety Information Booklet carefully before use. This manual is applicable to the following model: Z1p TETRA Portable Terminal...
- Page 2 Hytera Communications Co., Ltd. (the Company) or receive at a time. e n d e a v o r s t o a c h i e v e t h e a c c u r a c y a n d...
- Page 3 Compliance with RF Exposure Standards Hytera’s 2-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47 CFR §§...
- Page 4 Antenna should be kept away from eyes. • When worn on the body, always place the radio in a Hytera’s approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of Hytera’s or other manufacturer’s non-approved accessories...
-
Page 5: Table Of Contents
Contents Contents---------------------------------------------------------------------1 Managing the Contacts -------------------------------------------6 Items in the Package-----------------------------------------------------2 Using BT Device ----------------------------------------------------7 Product Overview ---------------------------------------------------------2 Enabling/Disabling Covert Mode -------------------------------7 Product Controls-----------------------------------------------------2 Call Services ---------------------------------------------------------------8 Programmable Keys -----------------------------------------------2 TMO -------------------------------------------------------------------8 Before Use -----------------------------------------------------------------2 DMO -------------------------------------------------------------------9 Charging the Battery -----------------------------------------------2 Status Message -----------------------------------------------------9 Attaching the Accessories ----------------------------------------3 User Message -------------------------------------------------------10... -
Page 6: Items In The Package
Items in the Package Product Overview Emergency LED Indicator Antenna Speaker Product Controls Please unpack carefully and check that all items Group Battery listed below are received. If any item is missing or Selector Knob damaged, please contact your dealer. Full-duplex Receiver Portable Terminal... -
Page 7: Attaching The Accessories
Attaching the Antenna The charger LED indicates you the charging process. Step 2 Loosen the screws fixing the SIM card cover, open the cover, and then place the card When the charger LED glows red, the charging into the slot properly, as shown in the figure begins. -
Page 8: Status Indication
Status Indication Name Icon Terminal Status Name Icon Terminal Status A gateway device is A GPS module is Status Icon available and connected connected and the valid Gateway in DMO. GPS data is received. A gateway device Icon Name Icon Terminal Status Valid GPS data can be is available but... -
Page 9: Menu Navigation
Menu Navigation TMO Menu The following menu lists show the full menus of the terminal in TMO and DMO. You can select your needed menus to be displayed via your dealer. To select and confirm the options in the menu, operate as follows: in the home screen, you can press the Func/OK key to enter the “Func”... -
Page 10: Basic Operations
Basic Operations Inputting through Keypad PIN code first (default PIN code: 1234, preset by the dealer). You can use the numeric keypad to enter user With this feature enabled, you will need to enter the Turning On/Off alias and number, edit messages, etc. The terminal correct PIN code prior to operating the terminal after supports these input methods: English and Number. -
Page 11: Using Bt Device
Initial Connection Func menu by pressing the Func/OK key, and go to automatically upon the product power-on next time. “PhoneBook” menu; then press Func/OK to enter And if the once connected BT device is powered on, Step 1 Enable the BT feature: press the shortcut it will automatically connect to the product. -
Page 12: Call Services
Call Services Answering an Individual Call press the Options/Back key or to reject it. In the process of an individual call, any party can ● Half-duplex Individual Call press to terminate it. If it is an incoming call with Direct Signaling, »... -
Page 13: Dmo
Telephone Call programmed by your dealer. The emergency priority Answering an Individual Call is endowed with the higher privilege; thus a call Yo u c a n r e c e i v e a n i n d i v i d u a l c a l l i n D M O The telephone call is a full-duplex individual call with with such priority can break any other call with automatically. -
Page 14: User Message
Note: The Send StatusMsg function and the select the target contact and decide whether to Viewing the User Message status message are predefined by the dealer send it as a flash message. O p e r a t e i n t h e s a m e w a y a s t h a t d e s c r i b e d via the CPS. -
Page 15: Troubleshooting
Troubleshooting Phenomenon Analysis Solution The terminal may be operating in DMO. Switch to TMO mode. The terminal may get out of the network coverage (in TMO Check the signal strength. Make sure the terminal is Network registration fails or network mode). - Page 16 Phenomenon Analysis Solution As for the same status message, the content displayed at the receiving The parties have associated the same status message ID Make sure the status message ID is associated with the party is different from that of the with different contents.
-
Page 17: Care And Cleaning
Care and Cleaning Optional Accessories Microphone(IP67) ● SM26N2 Waterproof Remote Speaker Microphone(IP54) To guarantee optimal performance as well as a long The following items are the main optional accessories ● POA47 Wireless Finger PTT service life of the product, please follow the tips for the product, and please consult your local dealer ●... -
Page 18: Appendix
Appendix SSI&TSI Dialing Rules In the TETRA system, subscribers are distinguished by different identities. Each subscriber is assigned with a unique short subscriber identity (SSI), which serves a part of the TETRA subscriber identity (TSI). And TSI is generally composed in this way: Mobile Country Code (MCC) + Mobile Network Code (MNC) + SSI.
