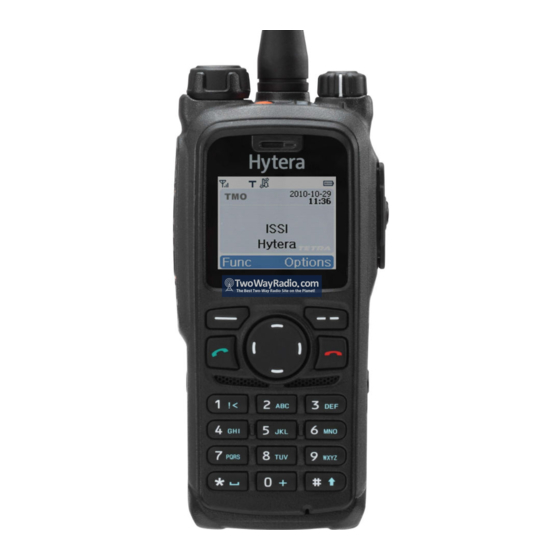

Hytera TETRA PT580H F5 Manual

Hytera TETRA PT580H F5 Manual

Portable terminal

Advertisement

Owner's Manual
Document Conventions
Preface
Thanks for your favor in our product. To derive optimum performance from the product, please read this
manual, the corresponding TETRA Terminal Series Feature Book and the Safety Information Booklet
carefully before use.
This manual is applicable to the following model:
PT580H F5 TETRA Portable Terminal

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TETRA PT580H F5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hytera TETRA PT580H F5

  • Page 1 Owner’s Manual Document Conventions Preface Thanks for your favor in our product. To derive optimum performance from the product, please read this manual, the corresponding TETRA Terminal Series Feature Book and the Safety Information Booklet carefully before use. This manual is applicable to the following model: PT580H F5 TETRA Portable Terminal...
  • Page 2 Owner’s Manual Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Co., Ltd. (the Company) in PRC and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners.
  • Page 3 RF Radiation Information This product must be restricted to operations in an Occupational/Controlled RF exposure Environments. Users must be fully aware of the hazards of the exposure and able to exercise control over their RF exposure to qualify for the higher exposure limits. RF Radiation Profile Radio Frequency (RF) is a frequency of electromagnetic radiation in the range at which radio signals are transmitted.
  • Page 4 Compliance with RF Exposure Standards Hytera’s 2-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47 CFR §§...
  • Page 5 Antenna should be kept away from eyes. • When worn on the body, always place the radio in a Hytera’s approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of Hytera’s or other manufacturer’s non-approved accessories...
  • Page 6 EU Regulatory Conformance As certified by the qualified laboratory, the product is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. Please note that the above information is applicable to EU countries only.
  • Page 7: Table Of Contents

    Document Conventions Owner’s Manual Contents 1. Document Conventions ........................6 1.1 Instructional Conventions ........................ 6 1.2 Notational Conventions ........................6 1.3 Key Operation ..........................6 1.4 Term Explanation ..........................6 2. Items in the Package .......................... 8 3. Product Overview ..........................9 3.1 Product Controls ..........................
  • Page 8 Owner’s Manual Document Conventions 8.1.1 Individual Call ........................21 8.1.2 Group Call........................... 22 8.1.3 Telephone Call ........................22 8.1.4 Emergency Call ........................23 8.2 DMO ............................. 23 8.2.1 Individual Call ........................23 8.2.2 Group Call........................... 24 8.2.3 Emergency Call ........................24 9.
  • Page 9: Document Conventions

    Document Conventions Owner’s Manual 1. Document Conventions For your better understanding of this manual, please read the following conventions first. Instructional Conventions Icon Description Indicates references that can further describe the related topics. Note Indicates situations that could cause data loss or equipment damage. Caution Notational Conventions Convention...
  • Page 10 Owner’s Manual Document Conventions Term Description Half-duplex communication is also called “two-way alternate communication”. It Half-duplex indicates the communication is provided in both directions, but only one direction at a time, that is, only one party is allowed to transmit or receive at a time. Full-duplex communication is also called “full-duplex synchronous communication”.
  • Page 11: Items In The Package

    Items in the Package Owner’s Manual 2. Items in the Package Please unpack carefully and check that all items listed below are received. If any item is missing or damaged, please contact your dealer. Portable Terminal Antenna Belt Clip Strap Charger Battery Power Adapter...
  • Page 12: Product Overview

    Owner’s Manual Product Overview 3. Product Overview Product Controls Part Name Part Name ○ ○ SK1 (Side Key 1) Antenna Connector Power On-Off/Volume Control ○ ○ PTT (Push-to-talk) Key Knob ○ ○ SK2 (Side Key 2) Half-duplex Microphone ○ ○ Emergency Key Accessory Contact Cover ○...
  • Page 13: Programmable Keys

    Product Overview Owner’s Manual Part Name Part Name ○ ○ LCD Display Accessory Contact ○ ○ Func/OK Key Strap Hole ○ ○ Answer/Call Key Belt Clip ○ ○ Half-duplex Speaker Battery ○ ○ Numeric Keypad Charging Piece ○ Full-duplex Microphone Programmable Keys For enhanced convenience, you can request your dealer to program the keys (SKI, SK2, navigation key, answer/call key, numeric keys 1-9,...
  • Page 14: Before Use

    Owner’s Manual Before Use 4. Before Use Charging the Battery Make sure the radio is powered off during charging. Caution: Only use the charger and battery specified by the Company. The charger LED indicator will indicate the charging process. See the figure below showing the steps for charging. ○...
  • Page 15: Assembling The Accessories

    Before Use Owner’s Manual LED Indication Charging Status Flashes red rapidly Failure Assembling the Accessories Installing the SIM card 4.2.1 If a SIM card is required to realize the End-to-End Encryption (E2EE) feature which should be purchased separately, please install the SIM card first. Step 1 Turn off the terminal, and then slide the battery latch upwards to unlock the battery.
  • Page 16: Attaching The Battery

    Owner’s Manual Before Use Attaching the battery 4.2.3 ○ Step 1 Fit the battery into the battery slot properly as shown by arrow 1 below. ○ Step 2 Slightly press the bottom of the battery until a click is heard as shown by arrow 2 below.
  • Page 17 Before Use Owner’s Manual Step 3 Tighten the screws on the plug. To remove the accessory, loosen the screw and pull out the plug. After the above assembly procedure, the terminal is ready for use. Caution: When you are using an external accessory, waterproof performance of the radio may get affected.
  • Page 18: Status Indication

    Owner’s Manual Status Indication 5. Status Indication Status Icon Name Icon Indication The battery is low. Battery Strength Icon More bars indicate better battery strength. The terminal has not registered with the network (applicable for TMO only). RSSI Icon More bars indicate better signal strength. Unread message(s).
  • Page 19: Led Indicator

    Status Indication Owner’s Manual Name Icon Indication Group Selection Icon The terminal is selecting a talkgroup. A gateway device is available and connected in DMO. Gateway Icon A gateway device is available but unconnected in DMO. A repeater is available and connected in DMO. Repeater Icon A repeater is available but unconnected in DMO.
  • Page 20: Menu Navigation

    Owner’s Manual Menu Navigation 6. Menu Navigation The following menu lists show the full menus of the terminal in TMO and DMO. You can select your needed menus to be displayed via your dealer. To select and confirm the options in the menu, operate as follows: in the home screen, you can press the Func/OK key to enter the “Func”...
  • Page 21: Tmo Menu

    Menu Navigation Owner’s Manual TMO Menu DMO Menu...
  • Page 22: Basic Operations

    Owner’s Manual Basic Operations 7. Basic Operations Turning On/Off To turn on the terminal, rotate the Power On-Off/Volume Control knob clockwise. Then the LED indicator flashes green, and the terminal shows the power-up screen and sounds power-up alert. Upon successful powering on, the terminal enters the home screen. In TMO, after being turned on, the terminal will logon to the network.
  • Page 23: Pin Code Security And Changing

    Basic Operations Owner’s Manual Apart from locking the keypad via menu, you can lock the keypad quickly and temporarily by pressing the Func/OK key and then directly in the home screen. PIN Code Security and Changing PIN code can prevent unidentified user from using your terminal. To enable or disable the PIN Code feature, enter the Func menu from the home screen by pressing the Func/OK key, then go to “Settings ->...
  • Page 24: Call Services

    Owner’s Manual Call Services 8. Call Services 8.1.1 Individual Call In TMO, an individual call can be initiated either as a half-duplex call or full-duplex call, which can be received without pressing any key (Direct Signaling) or by pressing the Answer/Call key or PTT (Hook Signaling).
  • Page 25: Group Call

    Call Services Owner’s Manual If it is an incoming call with Direct Signaling, there will be an alert tone to inform the called party that a call is received. If it is an incoming call with Hook Signaling, the terminal sounds alert and vibrates to inform the called party that there is an incoming call.
  • Page 26: Emergency Call

    Owner’s Manual Call Services Initiating a Telephone Call Step 1 Select a gateway. In the home screen, press Options/Back key to enter the “PSTN GATE” or “PABX GATE” submenu. Select an appropriate gateway, and press Func/OK key to confirm. Step 2 Input a telephone number. Return to the home screen by pressing .
  • Page 27: Group Call

    Call Services Owner’s Manual Initiating an Individual Call In the home screen, directly input the number you want to call through the keypad, or press Func/OK key to enter the “PhoneBook” or “Call Log” submenu, and select a contact. Then press PTT to initiate the call.
  • Page 28: Message

    Owner’s Manual Message 9. Message Status Message Status message, which should be programmed by your dealer only, can facilitate instant messaging of the frequently-used messages. You can only send or view rather than editing the status messages. When the message is sent successfully, the target terminal will receive either the status ID of the status message (if the message text has not been predefined via CPS) or the predefined text (if the message text has been predefined via CPS).
  • Page 29: Dmo

    Message Owner’s Manual Note: If the message is sent as a flash message, the receiving party can preview all the content in a predefined time period without any operation. Once the time period expires, the home screen will get restored, with the icon displaying on the status bar.
  • Page 30: Troubleshooting

    Owner’s Manual Troubleshooting 10. Troubleshooting Phenomenon Analysis Solution Terminals cannot be The battery power gets too low to Charge for the battery. powered on. supply the terminal. The terminal is operating in DMO. Switch to TMO mode. Check the signal strength. Make Network registration The terminal gets out of the network sure the terminal is within the...
  • Page 31 Troubleshooting Owner’s Manual The channel is occupied by another Wait until the channel becomes terminal with higher call priority. available and try again. The channel resources are allocated Wait until the channel becomes to other services due to overloaded available and try again. network.
  • Page 32: Care And Cleaning

    Owner’s Manual Care and Cleaning 11. Care and Cleaning To guarantee optimal performance as well as a long service life of the product, please follow the tips below. Product Care Do not pierce or scrape the product. Keep the product far away from substances that can corrode the circuit. Do not hold the product by its antenna or earpiece cable directly.
  • Page 33: Appendix

    Appendix Owner’s Manual 12. Appendix SSI&TSI Dialing Rules In the TETRA system, subscribers are distinguished by different identities. Each subscriber is assigned with a unique short subscriber identity (SSI), which serves a part of the TETRA subscriber identity (TSI). And TSI is generally composed in this way: Mobile Country Code (MCC) + Mobile Network Code (MNC) + SSI.
