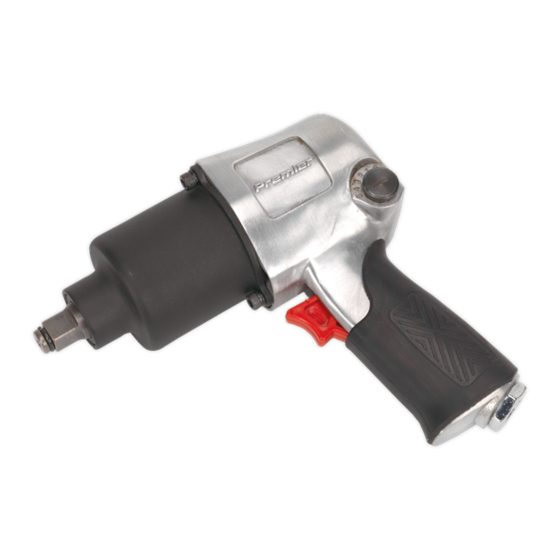

Twin hammer 1/2” air impact wrench

Advertisement

Quick Links

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE
THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1.
SAFETY INSTRUCTIONS
 WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations
are adhered to when using this equipment.
 WARNING! Disconnect from air supply before changing accessories or servicing.
 Maintain the wrench in good condition and replace any damaged or worn parts. Use
genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
 WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
 Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each
use and ensure that all connections are secure.
 Only use impact sockets which are specifically designed for use with an impact wrench.
 Wear approved safety eye/face shield, ear defenders, and hand protection.
 WARNING! Due to the possible presence of asbestos dust from brake linings, when working
around vehicle brake systems we recommend you wear suitable respiratory protection
 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
 When not in use disconnect from air supply and store in a safe, dry, childproof location.
 Keep children and non essential persons away from the working area.
 DO NOT use the wrench for a task it is not designed to perform.
 WARNING! DO NOT use wrench if damaged or thought to be faulty. (Contact Service Agent).
 DO NOT use wrench unless you have been instructed in its use by a qualified person.
 DO NOT carry the wrench by the air hose, or yank the hose from the air supply.
 DO NOT operate wrench if you are tired or under the influence of alcohol, drugs or intoxicating
medication.
 DO NOT carry wrench with your hand on the power trigger, in order to avoid unintentional
starting.
 DO NOT direct air from the air hose at yourself or others.
 DO NOT use worn or damaged sockets.
2.
INTRODUCTION & SPECIFICATION
Powerful 1/2" impact wrench with twin hammer mechanism and pressure feed lubrication system.
Air motor features quality bearings, ductile steel end plates and carefully finished components to
ensure smooth running and maximum power. Combination forward/reverse and speed selector.
Suitable for heavy tyre shop use.
Drive size . . . . . . . . . . . . . . . . . . . . . . . .1/2''Sq
Working/Max torque . . . . . . . . . . . . 400/480lb.ft
Ultimate torque . . . . . . . . . . . . . . . . . . . 500lb.ft
Free Speed. . . . . . . . . . . . . . . . . . . . . 7500rpm
Air consumption . . . . . . . . . . . . . . . . . . . 4.2cfm
Operating pressure. . . . . . . . . . . . . . . . . . 90psi
© Jack Sealey limited
INSTRUCTIONS FOR:
TWIN HAMMER 1/2"
AIR IMPACT WRENCH
SA602.V3
MODEl No:
Air inlet . . . . . . . . . . . . . . . . . . . . . . .1/4"BSP
Weight . . . . . . . . . . . . . . . . . . . . . . . . . 2.6kg
Vibration . . . . . . . . . . . . . . . . . . . . .. 5.47m/s²
Uncertainty . . . . . . . . . . . . . . . . . . . . 2.188m/s²
Noise power . . . . . . . . . . . . . . . . . . .103dB(A)
Noise pressure . . . . . . . . . . . . . . . . . . 92dB(A)
Original Language Version
SA602.V3 Issue: 4(SP)- 12/02/14

Advertisement

loading

Summary of Contents for Sealey SA602.v3

  • Page 1 SA602.V3 MODEl No: Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained, give you years of trouble free performance. IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
  • Page 2 DO NOT use any additional force upon the wrench in order to remove a nut. DO NOT allow wrench to free run for an extended period as this will shorten its life. Original Language Version © Jack Sealey limited SA602.V3 Issue: 4(SP)- 12/02/14...
  • Page 3 SAE No 10 oil and paraffin. Allow to dry before use. 5.4.3 For a full service contact your local Sealey service agent. 5.4.4 When not in use, disconnect the wrench from the air supply, clean it and store it in a safe, dry, childproof location.
  • Page 4 WARNING! – Risk of Hand Arm Vibration Injury. This tool may cause Hand Arm Vibration Syndrome if its use is not managed adequately. This tool is subject to the vibration testing section of the Machinery Directive 2006/42/EC. This tool is to be operated in accordance with these instructions. Measured vibration emission value (a): .
