Please read the instructions completely before beginning the installation.
Barosa Collection
Model Number: 2450MC-TM
Flush both supply lines before installation, then shut off both supply lines.
Minimum hole size for the spout and handle trim is 1-1/4" and maximum of 1-1/2"

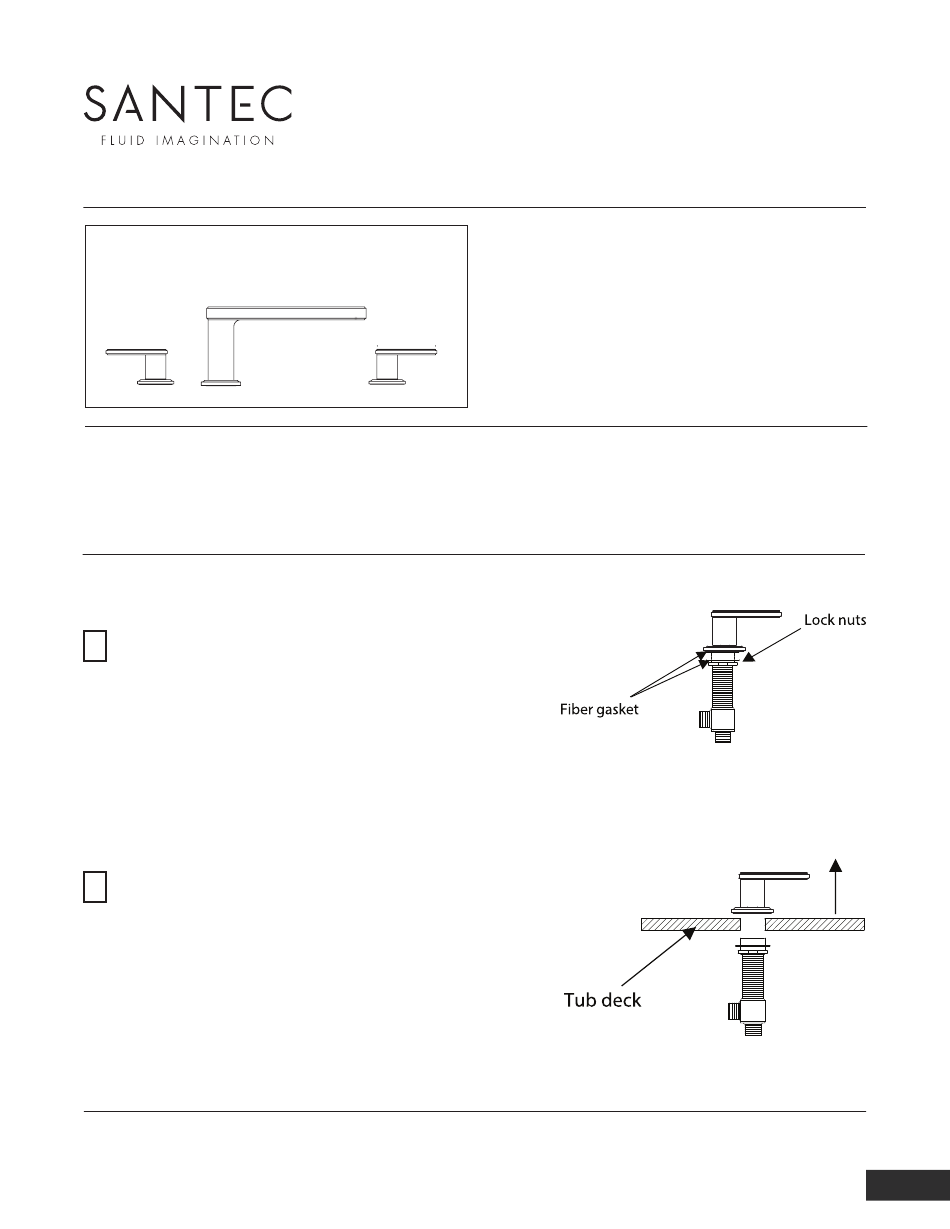

HANDLE TRIM INSTALLATION
-Unscrew pre-assembled handle trim from the valve
1
body. Hot valve assembly "Red" to be mounted on
left. Cold valve assembly "Blue" to be mounted on right.
- Remove the top lock nut and the fiber gasket from
2
the valve body.
- Apply a ring of silicone caulking around the handle hole
on deck top.
The measurements shown are for reference only. Products and specifications shown are subject to change without notice.
www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681
Rev 06/2016
Installation Instruction
BAROSA COLLECTION
Roman Tub Filler
1/6
Advertisement
Related Manuals for Santec BAROSA 2450MC-TM
Summary of Contents for Santec BAROSA 2450MC-TM
- Page 1 Rev 06/2016 Installation Instruction BAROSA COLLECTION Roman Tub Filler Please read the instructions completely before beginning the installation. Barosa Collection Model Number: 2450MC-TM Flush both supply lines before installation, then shut off both supply lines. Minimum hole size for the spout and handle trim is 1-1/4” and maximum of 1-1/2” HANDLE TRIM INSTALLATION -Unscrew pre-assembled handle trim from the valve body.
-
Page 2: Spout Installation
-Slip valve body up from below tub deck. Place the top lock nut and the fiber gasket back onto the valve body until the top surface of the lock nut is flush with the top surface of the valve body. - Secure the top lock nut in place before inserting the handle. -
Page 3: Parts Drawing
PARTS DRAWING PART DESCRIPTION PART # PART DESCRIPTION PART # Metra Classic Roman Tub Spout Flange PH00154 Sleeve Adaptor PM-998 R/T Quick Connect KQ-5300S Lock Nut PM-082 Set Screw PM-024 Washer PM-1009 Washer PM-306 Monaza/Novo Roman Tub Handle O-Ring PM-953 Neoperl 15/16"-27 Aerator Housing P0820-U Screw #6-32 x 1-1/4"... -
Page 4: Specification Sheets
SPECIFICATION SHEETS 8 " 4 " 8 " 8 " 8 " 8 " 4 " 4 " The measurements shown are for reference only. Products and specifications shown are subject to change without notice. www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681... -
Page 5: To Obtain Warranty Service
Doing so may ruin your faucet finish and/or void the warranty. Thank you for making SANTEC a part of your lifestyle and luxury spa experience. Our products have been created as works of enduring quality and sophisticated design. -
Page 6: Lifetime Limited Warranty
SANTEC reserves the product components of the covered product will be repaired, refinished, or replaced at the sole discretion of SANTEC. SANTEC reserves the right to examine any product claimed defective prior to any warranty claim being accepted or processed, at its sole discretion. This warranty gives you specific legal rights and you may have other rights which may vary from state to state.
