Please read the instructions completely before beginning the installation.

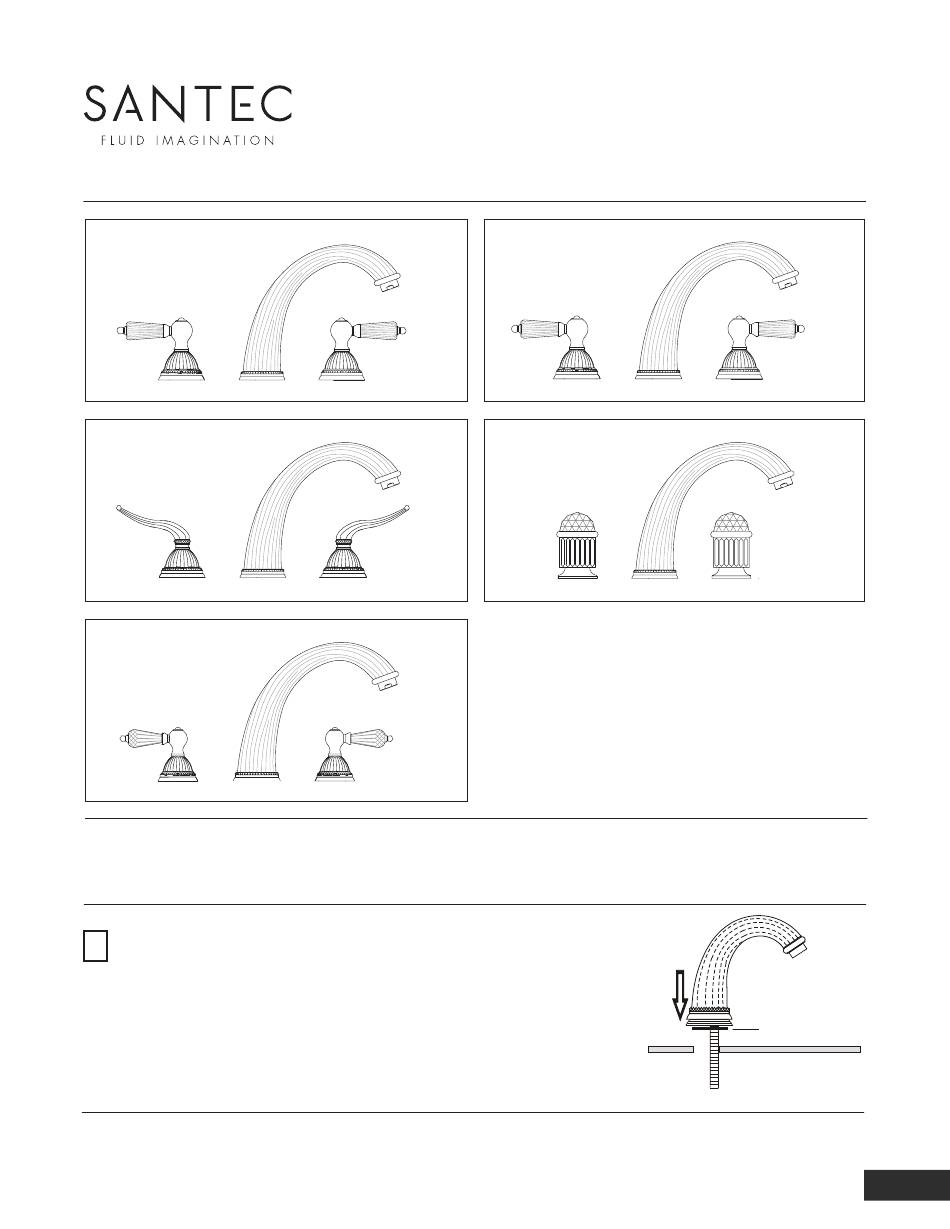

Monarch I Collection
Model Number: 1120LL
Monarch III Collection
Model Number: 1120FL
Monarch Crystal II Collection
Model Number: 1120LC
Flush both supply lines before installation, then shut off both supply lines.
Minimum hole size for the spout and handle trim is 1-1/4" and maximum of 1-1/2"
SPOUT INSTALLATION
- Remove the tee connector, spout mounting hardware and tee
1
connector washer from the bottom of the spout assembly. Apply
a ring of silicon caulking around the center hole on the top of the sink.
Do not use plumbers' putty which can damage the finish of the faucet.
- From the top of the deck, insert the spout's threaded shank through
the center hole of the sink. Make sure the spout flange washer is
properly placed underneath of the flange and gently pressed against
the sink top.
The measurements shown are for reference only. Products and specifications shown are subject to change without notice.
www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681
Monarch II Collection
Model Number: 1120TT
Monarch Crystal I Collection
Model Number: 1120CD
Rev 06/2016
Installation Instruction
MONARCH COLLECTIONS
Widespread Lavatory Set
Rubber washer
1/8
Advertisement
Table of Contents
Related Manuals for Santec Monarch I 1120LL
Summary of Contents for Santec Monarch I 1120LL
- Page 1 Rev 06/2016 Installation Instruction MONARCH COLLECTIONS Widespread Lavatory Set Please read the instructions completely before beginning the installation. Monarch I Collection Monarch II Collection Model Number: 1120LL Model Number: 1120TT Monarch Crystal I Collection Monarch III Collection Model Number: 1120CD Model Number: 1120FL Monarch Crystal II Collection Model Number: 1120LC...
- Page 2 - Slip the spout mounting hardware back onto the spout. First the notched rubber washer, then the notched metal washer and lastly the brass lock nut. Hand tighten the lock nut. - Place the pop-up lift rod with the knob through the back hole in the spout and rotate the notched washers until the lift rod passes through the notch.
-
Page 3: Complete Assembly
COMPLETE ASSEMBLY INLET HOSE INLET HOSE TO THE HOT SUPPLY LINE TO THE COLD SUPPLY LINE The measurements shown are for reference only. Products and specifications shown are subject to change without notice. www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681... - Page 4 POP-UP INSTALLATION Remove the decorative drain flange, drain plug and gasket from pop-up assembly. Do not remove the washer and lock nut. Place the flange gasket onto the drain tube beveled side upward and on top of the washer. Apply a ring of silicon caulking around the top of sink drain opening.
-
Page 5: Parts Drawing
PARTS DRAWING PART DESCRIPTION PART # Complete Spout Assembly * PS-2M00S Complete LC Handle Assembly * 00LC Spout Flange * PH2210 Hot Cartridge Only P0410 Cold Cartridge Only P0411 Complete Hot Valve P0458 Complete Cold Valve P0459 Connecting Hose to the Tee P0441 Connecting Hose to the Supply Line P0440... -
Page 6: Specification Sheets
SPECIFICATION SHEETS 2" 2 " 4 7 8 " 13 1 3" " 2" 4 " " POP-UP Ø 2 " " " 12" Ø 1 " The measurements shown are for reference only. Products and specifications shown are subject to change without notice. www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681... -
Page 7: To Obtain Warranty Service
Doing so may ruin your faucet finish and/or void the warranty. Thank you for making SANTEC a part of your lifestyle and luxury spa experience. Our products have been created as works of enduring quality and sophisticated design. -
Page 8: Lifetime Limited Warranty
SANTEC reserves the product components of the covered product will be repaired, refinished, or replaced at the sole discretion of SANTEC. SANTEC reserves the right to examine any product claimed defective prior to any warranty claim being accepted or processed, at its sole discretion. This warranty gives you specific legal rights and you may have other rights which may vary from state to state.
