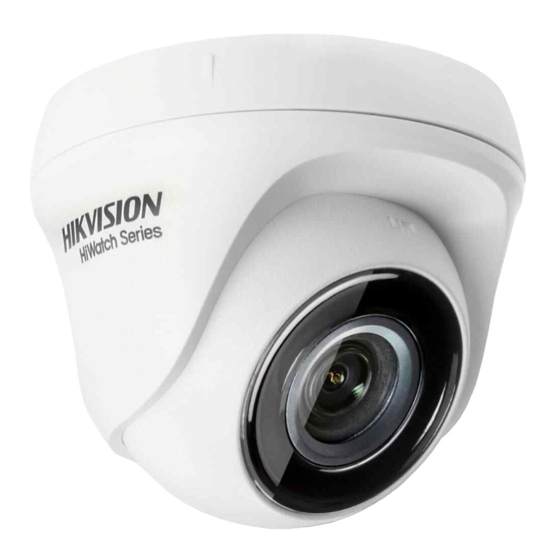

HD Turret and Bullet
Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Type I Camera
Type II Camera
Type III Camera
Type IV Camera
Type V Camera
Type VI Camera
This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.
Model
HWT-T110-P/HWT-T110
HWT-T210-P
HWT-T110-M
HWT-T210-M
HWT-B210/HWT-B210-M
HWT-B110-P/HWT-B110-M
0100001071226
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HIKVISION HWT-T110-P
Summary of Contents for HIKVISION HWT-T110-P
- Page 1 Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Type Model Type I Camera HWT-T110-P/HWT-T110 Type II Camera HWT-T210-P Type III Camera HWT-T110-M Type IV Camera HWT-T210-M...
-
Page 2: Regulatory Information
Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. - Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
-
Page 4: Product Features
To avoid heat accumulation, good ventilation is required for the operating environment. Keep the camera away from liquid while in use for non-water-proof device. While in delivery, the camera shall be packed in its original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark... - Page 5 Note: Press and hold the switch button for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS. 1.2.3 Overview of Type III Camera Clip Plate Mounting Base Trim Ring Enclosure Main Body Switch Button Power Cord...
- Page 6 1.2.6 Overview of Type VI Camera Switch Button Mounting Base Power Cord DC12V 12 VDC Video Cable Main Body Lens Figure 1-6 Overview of Type VI Camera Note: Press and hold the switch button for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.
-
Page 7: Installation
2 Installation Before you start: Make sure that the device in the package is in good condition and all the assembly parts are included. Make sure that all the related equipment is power-off during the installation. Check the specification of the products for the ... - Page 8 Note: Drill the cable hole, when adopting the ceiling outlet to route the cable 5. Attach the mounting base to the ceiling, and secure them with supplied screws. Type I Camera Type II Camera Figure 2-3 Attach the Mounting Base to the Ceiling Note: The supplied screw package contains ...
- Page 9 2.2 Installation of Type III Camera Before you start: Both wall mounting and ceiling mounting are suitable for the camera. We take ceiling mounting as an example in this section. You can take the steps of ceiling mounting as a reference, when adopting wall mounting. Steps: 1.
- Page 10 2). Align the notch to the clip plate, and rotate the enclosure a little bit. 3). Tighten the screw to secure the camera on the mounting base. Figure 2-9 Secure the Camera with Mounting Base 7. Connect the corresponding cables, such as power cord, and video cable.
- Page 11 Figure 2-11 Get the Trim Ring out 2. Paste the drill template (supplied) to the place where you want to install the camera. Screw Hole Cable Hole Figure 2-12 Drill Template Note: Drill the cable hole, when adopting the ceiling outlet to route the cable.
- Page 12 Rotate Clockwise Pan Position [0° to 360°] Rotation Position Tilt Position [0° to 360°] [0° to 75°] Figure 2-15 3-axis Adjustment 2.4 Installation of Type V and Type VI Camera Before you start: Type V and Type VI cameras share the same installation, and we take Type VI camera as the example to describe the installation method.
- Page 13 Figure 2-17 Fix the Camera to the Ceiling Note: The supplied screw package contains self-tapping screws, and expansion bolts. For cement ceiling, expansion bolts are required to fix the camera. For wooden ceiling, self-tapping screws are required. 4. Route the cables through the cable hole, or the side opening.
-
Page 14: Menu Description
3 Menu Description Purpose: Call the menu by clicking button on the PTZ Control interface, or click Iris+. Steps: 1. Connect the camera with the TVI DVR, and the monitor, shown as the figure 3-1. TVI DVR Camera Monitor Figure 3-1 Connection 2. - Page 15 Figure 3-3 AE BRIGHTNESS Brightness refers to the brightness of the image. You can set the brightness value from 1 to 10 to darken or brighten the image. The higher the value, the brighter the image is. EXPOSURE MODE You can set the EXPOSURE MODE as GLOBAL, or BLC. GLOBAL ...
- Page 16 Figure 3-4 DAY NIGHT INFRARED You can turn on/off the INFRARED to meet the requirements of different circumstances. SMART IR The SMART IR function is used to adjust the light to its most suitable intensity, and prevent the image from over exposure.
