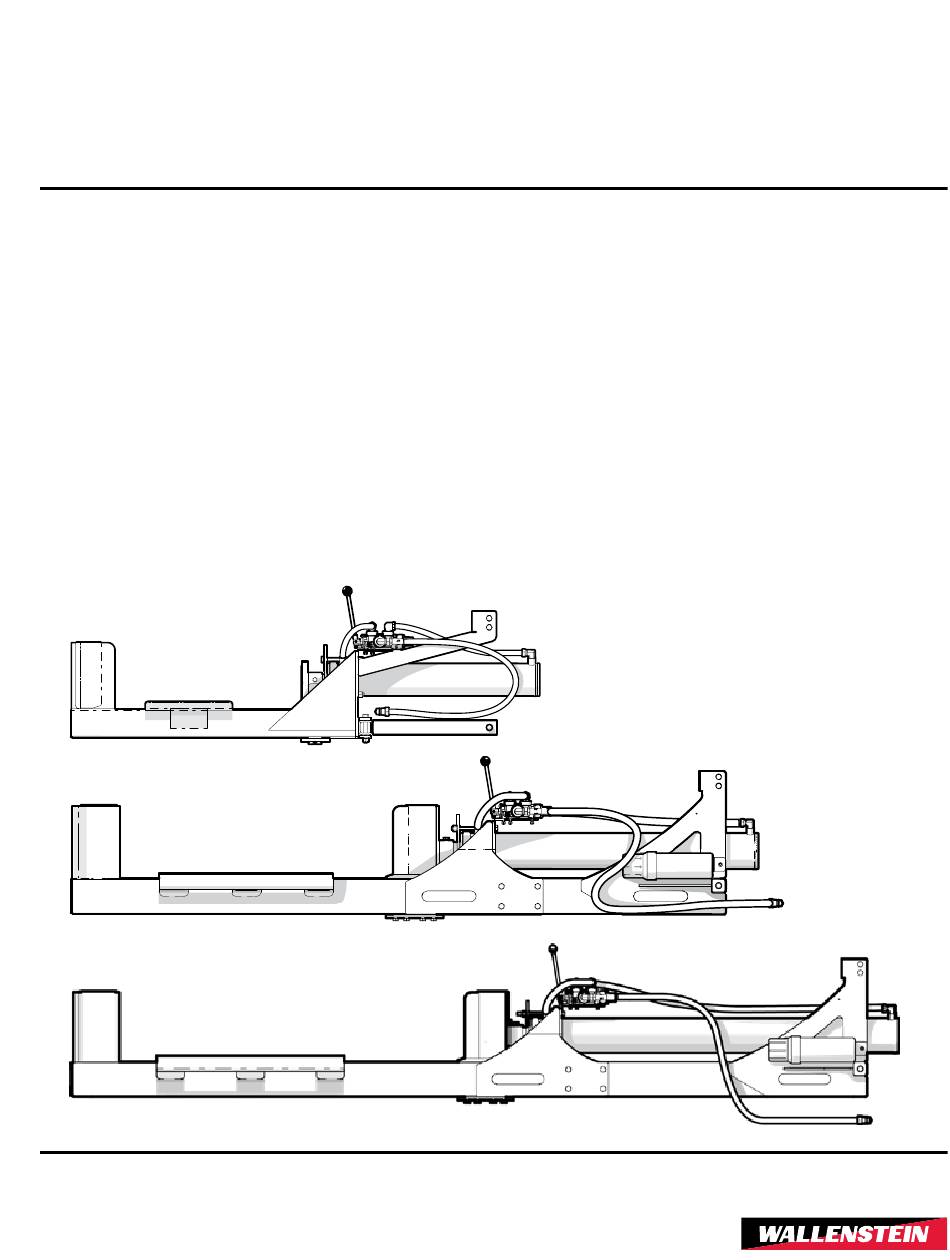

- Page 1 OPERATOR'S MANUAL 310, 320, 3-point Hitch Wood Splitter Rev Jan-2021 Part Number: Z97145_En...
-
Page 2: Introduction
This manual covers the Wallenstein WX310, WX320 Always keep this manual with the machine. and WX330 three-point hitch mounted wood splitters. W034 Model Variants Covered in this Manual •... -
Page 3: Table Of Contents
WX310, WX320, WX330 Introduction 3-point Hitch Wood Splitter Table of Contents 1. Introduction ............2 Foreword ............2 Delivery Inspection Report ......4 Serial Number Location ........5 Decal Information ..........6 2. Safety ..............7 Safety Alert Symbol .........7 Signal Words ...........7 Why is SAFETY important? ......8 Safety Rules ............8... -
Page 4: Delivery Inspection Report
WX310, WX320, WX330 Introduction 3-point Hitch Wood Splitter Delivery Inspection Report WALLENSTEIN WX310, WX320, WX330, Three-point Hitch Wood Splitters To activate warranty, register your product online at http://www.wallensteinequipment.com _________________________________________ Pre-delivery Inspection Customer’s Name Inspect for damage from shipping. Immediately contact the shipping company if damage is found. -
Page 5: Serial Number Location
For future convenience, record the product Model and Serial Number in the spaces provided below. Always provide the model and serial number of your Wallenstein product when ordering parts, or requesting service or other information. The product information plate location for each model is shown in the illustrations below. -
Page 6: Decal Information
When getting familiar with the Wallenstein product, Manufactured by: notice that there are numerous decals located on the Wallenstein Equipment Inc., 7201 Line 86, Wallenstein ON N0B2S0, Canada MODEL: ########## TYPE OF VEHICLE/TYPE DE VEHICLE: machine. There are different types of decals for safety,... -
Page 7: Safety
ATTENTION! BE ALERT! YOUR SAFETY IS INVOLVED! The Safety Alert Symbol identifies important safety messages on the Wallenstein wood splitter and in the manual. When you see this symbol, be alert to the possibility of personal injury or death. Follow the instructions in the safety message. -
Page 8: Why Is Safety Important
- Heavy work gloves • Accidents Can Be Avoided - Protective shoes with slip resistant soles The policy of Wallenstein Equipment Inc. is to produce • DO have a first-aid kit available products that are safe and reliable. However, even... -
Page 9: Equipment Safety Guidelines
WX310, WX320, WX330 Safety 3-point Hitch Wood Splitter Equipment Safety Guidelines bystanders to possible serious injury or death. If elderly people are assisting with the work, their Always place the machine in a Safe Condition before physical limitations need to be recognized and performing any service work, maintenance procedures, accommodated. -
Page 10: Be Prepared
WX310, WX320, WX330 Safety 3-point Hitch Wood Splitter Be Prepared 1. Determine where the split wood is going to be piled ahead of time. Make sure it does not interfere with safe loading of wood into the splitter. 2. Precut logs so wood is ready to load into the splitter. - Page 11 WX310, WX320, WX330 Safety 3-point Hitch Wood Splitter 2.8.1 Sign-Off Form The design and manufacture of this product conforms to relative provisions in the following standards: Anyone using this machine must read and thoroughly understand all Safety, Operation and Maintenance ISO 4254-1 Agricultural machinery – Safety information in this manual.
-
Page 12: Safety Signs
SAFETY AWARENESS. Think SAFETY! Work SAFELY! 00719 Fig. 2 – Safety Decal Locations (typical for WX310, WX320, WX330 models) -
Page 13: Safety Sign Explanations
WX310, WX320, WX330 Safety Signs 3-point Hitch Wood Splitter Safety Sign Explanations 1. Warning! Always wear appropriate Personal Protective Equipment when using this machine. For example: • A hard hat • Heavy gloves • Hearing protection • Protective shoes with slip resistant soles •... -
Page 14: Replacing Damaged Safety Signs
WX310, WX320, WX330 Safety Signs 3-point Hitch Wood Splitter 4. Warning! Keep feet away from falling split wood. Always wear steel toed foot wear while machine is operating to avoid serious personal injury. Replacing Damaged Safety Signs • Keep safety signs clean and legible at all times. -
Page 15: Familiarization
WX310, WX320, WX330 Familiarization 3-point Hitch Wood Splitter 4. Familiarization 4.1.1 Training To the New Operator Each operator must be trained in the proper set-up and It is the responsibility of the owner or operator to operating procedures before using the machine. -
Page 16: Machine Components

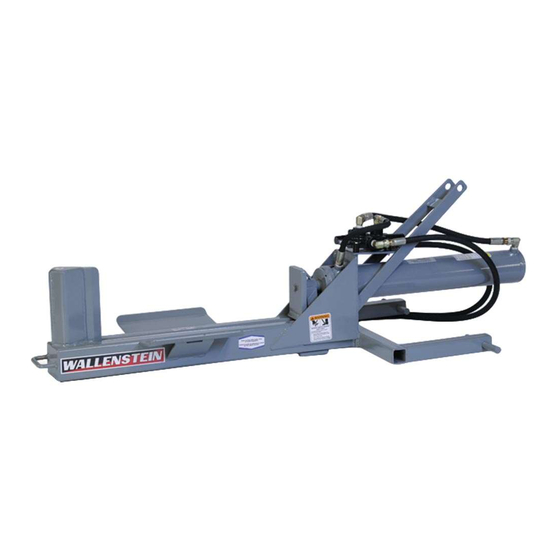

WX310, WX320, WX330 Familiarization 3-point Hitch Wood Splitter Machine Components WX310 00721 Fig. 3 – WX310 Wood Splitter Components 1. Wedge 2. Log Saddle 3. Splitter Bed 4. Push Block 5. Hydraulic Control Valve 6. Hydraulic Cylinder 7. Category I, Three-point Hitch Frame 8. - Page 17 WX310, WX320, WX330 Familiarization 3-point Hitch Wood Splitter WX320, WX330 00722 Fig. 4 – WX320, WX330 Wood Splitter Components 1. Anvil 2. Log Saddle 3. Splitter Bed 4. Wedge 5. Hydraulic Control Valve 6. Hydraulic Cylinder 7. Category I, Three-point Hitch Frame 8.
-
Page 18: Controls
WX310, WX320, WX330 Controls 3-point Hitch Wood Splitter 5. Controls Hydraulic Valve The control valve extends and retracts the wedge or push block to split the wood. The lever on the valve has three positions—Extend, Neutral, and Retract. 00660 Fig. 5 – Splitter Control Valve Fig. - Page 19 WX310, WX320, WX330 Controls 3-point Hitch Wood Splitter Retract • Pull the lever fully backwards to retract the wedge / push block. The valve detent holds the lever in Retract allowing a hands-free return cycle. • The valve lever spring-returns to Neutral when released from auto-retract.
-
Page 20: Stroke Limiter Accessory
WX310, WX320, WX330 Controls 3-point Hitch Wood Splitter Stroke Limiter Accessory The Stroke Limiter accessory improves productivity when splitting shorter pieces. It stops the cylinder from fully returning to the home position. 5.2.1 Stroke Limiter Adjustment 1. Place a typical sized log on the splitter bed, then start / apply power to the wood splitter. -
Page 21: Operating Instructions
WX310, WX320, WX330 Operating Instructions 3-point Hitch Wood Splitter 6. Operating Instructions The operator has the responsibility of being 2. When reversing, lower/raise the lift arms so that familiar with all operating and safety procedures they are level with the lower attachment points on and following them. -
Page 22: Connecting Hydraulic Hoses
WX310, WX320, WX330 Operating Instructions 3-point Hitch Wood Splitter If not already done, level the splitter front and rear, and side to side using the lift arm jackscrew arm and the top link turnbuckle. The splitter bed should always be horizontal during operation. -
Page 23: Before Start Up
Pre-operation Checklist Tie back long hair, remove jewelry, and avoid loose fitting clothing. Prolonged exposure to loud noise Efficient and safe operation of the Wallenstein can cause permanent hearing loss! Wear hearing wood splitter requires that each operator reads and... -
Page 24: Splitting Logs
WX310, WX320, WX330 Operating Instructions 3-point Hitch Wood Splitter Splitting Logs 1. On the splitter, use the hydraulic control to fully retract the wedge / push block. IMPORTANT! Park the wood splitter on a level, 2. Place a log on the splitter. -
Page 25: Machine Break-In
WX310, WX320, WX330 Operating Instructions 3-point Hitch Wood Splitter Machine Break-In Although there are no operational restrictions on the wood splitter when used for the first time, it is recommended that the following items be checked: After 1 hour of operation 1. -
Page 26: Transporting
WX310, WX320, WX330 Storing the Wood Splitter 3-point Hitch Wood Splitter Transporting 7. Storing the Wood Splitter After the season's use and the wood splitter is going 6.7.1 Transport Safety to be put away in storage, it should be thoroughly 1. -
Page 27: Service And Maintenance
6. Where replacement parts are necessary, use only 00740 OEM parts to restore your equipment to original specifications. Wallenstein Equipment is not responsible for injuries or damages caused by use of unapproved parts or accessories. 7. When completing a maintenance or service function, make sure all safety shields and devices are installed before placing splitter in service. -
Page 28: Troubleshooting
The following table lists some problems that may be encountered, with possible causes and solutions. If a problem persists after reading through the Troubleshooting section, contact the local dealer, distributor or Wallenstein Equipment. Have the machine serial number ready. Problem Cause Solution Oil filter plugged. -
Page 29: Specifications
WX310, WX320, WX330 Specifications 3-point Hitch Wood Splitter 10. Specifications 10.1 Machine Specifications Model WX310 WX320 WX330 3-point Hitch Mounted Mounting 4" x 24" 4-1/2" x 36" 4-1/2" x 48" Splitter Cylinder (102 mm x 609 mm) (115 mm x 914 mm) -
Page 30: Common Bolt Torque Values
WX310, WX320, WX330 Specifications 3-point Hitch Wood Splitter 10.2 Common Bolt Torque Values Checking Bolt Torque Imperial Bolt Torque Specifi cations The tables shown give correct torque values for Torque Value various bolts and capscrews. Tighten all bolts to Bolt the torque values specified in the table, unless SAE Gr. -
Page 31: Hydraulic Fitting Torque
WX310, WX320, WX330 Specifications 3-point Hitch Wood Splitter 10.3 Hydraulic Fitting Torque Hydraulic Fitting Torque Tightening Flare Type Tube Fittings Tube Size Flats From 1. Check flare and flare seat for defects that Size Torque value Across Finger Tight might cause leakage. -
Page 32: Warranty
3-point Hitch Wood Splitter 11. Warranty LIMITED WARRANTY Wallenstein products are warranted to be free of defects in materials and workmanship under normal use and service, for a period of Five Years for Consumer Use Two Years for Commercial/Rental Use from the date of purchase, when operated and maintained in accordance with the opera�ng... -
Page 33: Alphabetical Index
WX310, WX320, WX330 Alphabetical Index 3-point Hitch Wood Splitter 12. Alphabetical Index Pre-operation Checklist .........23 Attaching to Tractor ............21 Personal Protective Equipment (PPE) ......8 Pre-operation .............23 Bolt torque ..............30 Product Warranty ............32 Break-in ..............25 Putting Wood Splitter in Storage Removing from Storage ........26 Checking Bolt Torque ..........30... - Page 34 www.wallensteinequipment.com...
