TKSTAR LK106 Manual

TKSTAR LK106 Manual

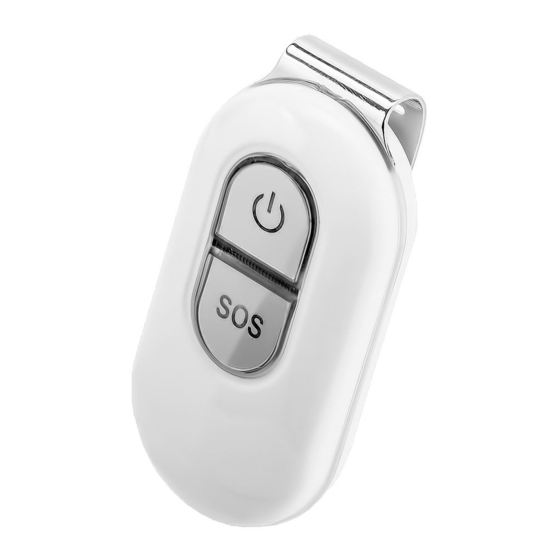

Waterproof portable gps tracker
Hide thumbs Also See for LK106:

Advertisement

Quick Links

1. Hardware Introduction
SOS button
1.1. Buy one Sim Card and confirm the following details:
This sim card can be used to make call, send SMS, and gets GPRS function.
This sim card gets enough money for GPS tracking service.
This sim card gets caller ID display function, no call forwarding.
The SMS format should be text format, not PDU format. (Most countries use text format for SMS)
1.2 Please use the screw driver to open the GPS tracker, and Insert the sim card with the correct direction(golden part
faces down).
1.3 The first time you use this tracker, please charge the GPS tracker 12 hours, so that the battery can get a good
performance, Normally, it only takes 3-5 hours to charge battery fully. Because the battery in tracker is li battery, so don't
squeeze it illegally, or put it into fire. The normal standby time of battery is 100 hours.
1.4 Please use the power charger in standard kit to charge our GPS tracker.
2. Device Activation.
2.1
Bring GPS tracker to open air, and press power switch for 3 seconds, then you can see the indication light will be on. Then
Waterproof Portable GPS Tracker
Important: Please read this user manual carefully before installation.
Power switch
Power connection pin
Metal clip
Power charger
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LK106 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TKSTAR LK106

  • Page 1 Waterproof Portable GPS Tracker Important: Please read this user manual carefully before installation. 1. Hardware Introduction Metal clip Power switch SOS button Power charger Power connection pin 1.1. Buy one Sim Card and confirm the following details: This sim card can be used to make call, send SMS, and gets GPRS function. This sim card gets enough money for GPS tracking service.
  • Page 2 GPS tracker will start to search GSM and GPS signal automatically. 2.2. According to the light status, user can judge the GPS tracker status. Once the GPS signal is ready, you can set all functions in user manual. 1 Green LED light: GPRS LED light status Flash GSM/GPRS Signal Ok...
  • Page 3 Instruction: sossms+123456 Turn off SOS SMS function: Instruction: nosossms+123456 4. Set GMT Time zone number: Instruction: time zone+123456+space+GMT No. For example, Finland is GMT+2 zone, so user can set: timezone123456 +2. Then GPS tracker will be adjusted to be the right time zone “Time OK” 5.
  • Page 4 9. Over speed alarm Instruction: speed+password+space+ speed For example: speed123456 080, then tracker will reply: “speed ok” If the tracker move over 80km/h, GPS tracker will send a SMS to admin phone number “ Speed alarm+080!+ longitude and latitude. GPS tracker will send over speed alarm SMS every 5 minutes. Cancel over speed alarm: Instruction: nospeed+password Reply SMS:nospeed ok...
  • Page 5 3. You can find a Android APP link<Android (Google map)>at the lower right corner. 4. Iphone, please use APP Store to find a APP named“ TKSTAR GPS”, download it and install it. Of course, there is also one cracked Iphone APP in our GPS CMS Web lower right corner.
  • Page 6 GPS CMS login (Take Android APP as an example) 1. Open GPS APP, then you can see a GPS CMS login interfaces as follow: 2. From Login interface, If user has user name and password, or a registered plate number, user can use user name and plate number to login.
  • Page 7 4. APP Function introduction Tracking, Press Device, then choose the device you want to track, press tracking, then you can start to locate your tracker. You can see the tracker online status, address, speed, and the distance between mobile phone and GPS tracker. Tracking history ,with this function, user can check the tracking history.
  • Page 8 Electronic Fence, with this function, user can set electronic fence alarm. SMS&GPRS Command, which function will be added in future. , Device information. With this part, you can check device information,. .
  • Page 9 Device alarm log. With this function, user can check the alarm record clearly. 4.7 Considering the different demand from different markets, we will launch different APP function, and update our APP in APP Store and Google Play. For example like: Navigation, user information and so on. Specification Specification Device size...
  • Page 10 voltage output AC power adapter 110-220V input voltage output Battery capacity Chargeable changeable 3.7V 800mAh Li-ion battery Standby time 240hours storage temperature -40°C to +85°C Working temperature -20°C to +55°C Humidity 5%--95% non-condensing...
