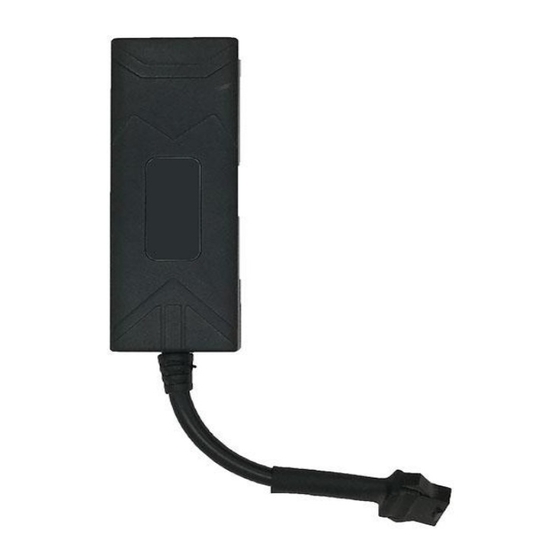

TP-GPS806 GPS TRACKER
USER MANUAL
PREFACE
Thank you for purchasing TKSTAR GPS tracker. This manual shows how to operate the device smoothly in
details, please make sure to read this manual carefully before using the device. Please be noted that any
update of the manual is made without prior notice. Each time the update of the manual will be released in the
latest product sales. The manufacturer won't assume any legal responsibility for any errors or omissions made
in this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP-GPS806 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TKSTAR TP-GPS806

Summary of Contents for TKSTAR TP-GPS806

  • Page 1 USER MANUAL PREFACE Thank you for purchasing TKSTAR GPS tracker. This manual shows how to operate the device smoothly in details, please make sure to read this manual carefully before using the device. Please be noted that any update of the manual is made without prior notice. Each time the update of the manual will be released in the latest product sales.
  • Page 2 1 SUMMARY Working based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS, APP and Internet. It adopts the most advanced technology of GPS and AGPS dual positioning. Content Specs. 77*27*15mm （3.0”*1.0”*0.6”） Dim.
  • Page 3 2.Hardware Description Wire connection explanation: Power, ACC, Oil/Electric control line (4 Pin) 1, This device is standard for power supply 10V-80V DC. Pls choose the original factory power line. Red line for power positive, black line for power negative. When installation, power negative, pls choose separately grounding or iron, do not connect with other ground.
  • Page 4 Relay(选配) The Place of the tracker in the Vehicle : Front windshield decorative below the covert Front panel (skin for non-metal material) around the shadow Rear window below decorative INDICATOR LIGHT STATUS MEANING Yellow light -Solid No GPRS signal Yellow light -Flash GPRS connection Blue light -Solid No GPS signal...
  • Page 5 3.TURN ON THE DEVICE  Open the rubber cover, insert the SIM card(chip up) to the slot.  The indicator light is on when SIM card is inserted.  After device is on, pls connect device with car based on above wire connection diagram. ...
  • Page 6 Reply：noadmin ok 4.3. Over-speed Alarm setting（It works only in continuous positioning mode.） Over-speed Alarm setting: ：speed123456 Command 070（Suppose speed is 70km/h） Reply：speed ok E.g： When the unit speed is over 70km/h, it will send message “speed alarm!” to the admin number every 5 minutes.
  • Page 7 Not e: After the device black/red lines connect with car battery, when it is taken down illegally, it will send “remove alarm!” info to admin number and SOS number by SMS. 设备黑红线链接汽车电瓶后被非法拆掉 产生报警信息 ”remoe alarm!” 发短信给中心号码和 SOS 号码。 （出厂默认打开） Remove Alarm Canceling: Command：noremove123456 Reply：noremove ok...
  • Page 8 Command：noacc123456 Reply：acc set ok 4.7 油路控制设置： Cut off the Oil and Power setting ： Command：stop123456 Message Reply：stop ok It will stop your car engine as well, at the same time. It will remain the immobile state until receiving the next SMS command of resuming the oil and power once receiving SMS command to cut off the oil and power system.
  • Page 9 Pic（1） Pic（2） Pic 1：Replied real-time tracking information under GPS satellites signal.  Lat:22.63952 lon:114.17122 Positioning of the latitude and longitude values.  Spd：000 This refers to the device moving speed. The unit is km/h.  T:24/09/15 16:00 real-tracking time, the Default is London time.
  • Page 10 6.2 APPLICATIONS FOR ANDROID/IOS Search “TKSTAR GPS“ in the Apple App Store/Google Play Store or Scan the QR Code to install the applications on your cell phone. Select “Log in by IMEI” on the bottom of screen Server: www.mytkstar.net IMEI : on the back side of cover Password: 123456 6.3 Turn on GPRS function by sending command “GPRS123456”...
  • Page 11 E.g: For tesco mobile SIM card in UK, we got APN information below. APN name:prepay.tesco-mobile.com APN username:tescowap APN password:password Send SMS to set apn below 1.gprs123456 2.apn123456 prepay.tesco-mobile.com 3.apnuser123456 tescowap (no need to set if without apnuser) 4.apnpasswd123456 password (no need to set if without password) 7.
  • Page 12 A more open view of the sky is recommended to make sure the device can No GPS receive the GPS signal normally. No reply to SMS Password wrong or the format is wrong. command No reply to calling & No Authorized / admin phone number is incorrect or has not setup alarm message SMS position OK, cannot...
