TKSTAR LK109 User Manual

TKSTAR LK109 User Manual

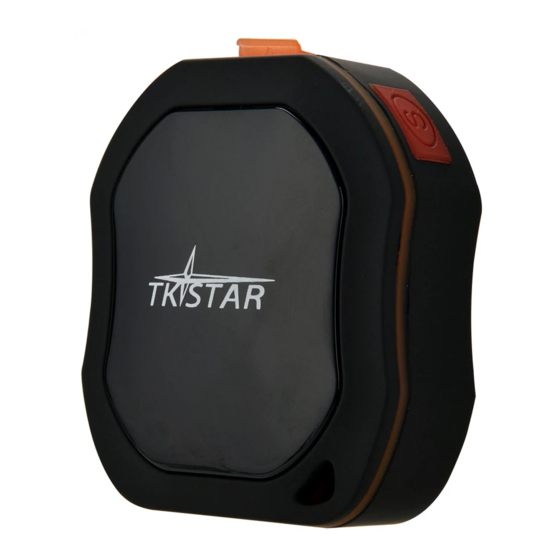

Waterproof portable gps tracker

Advertisement

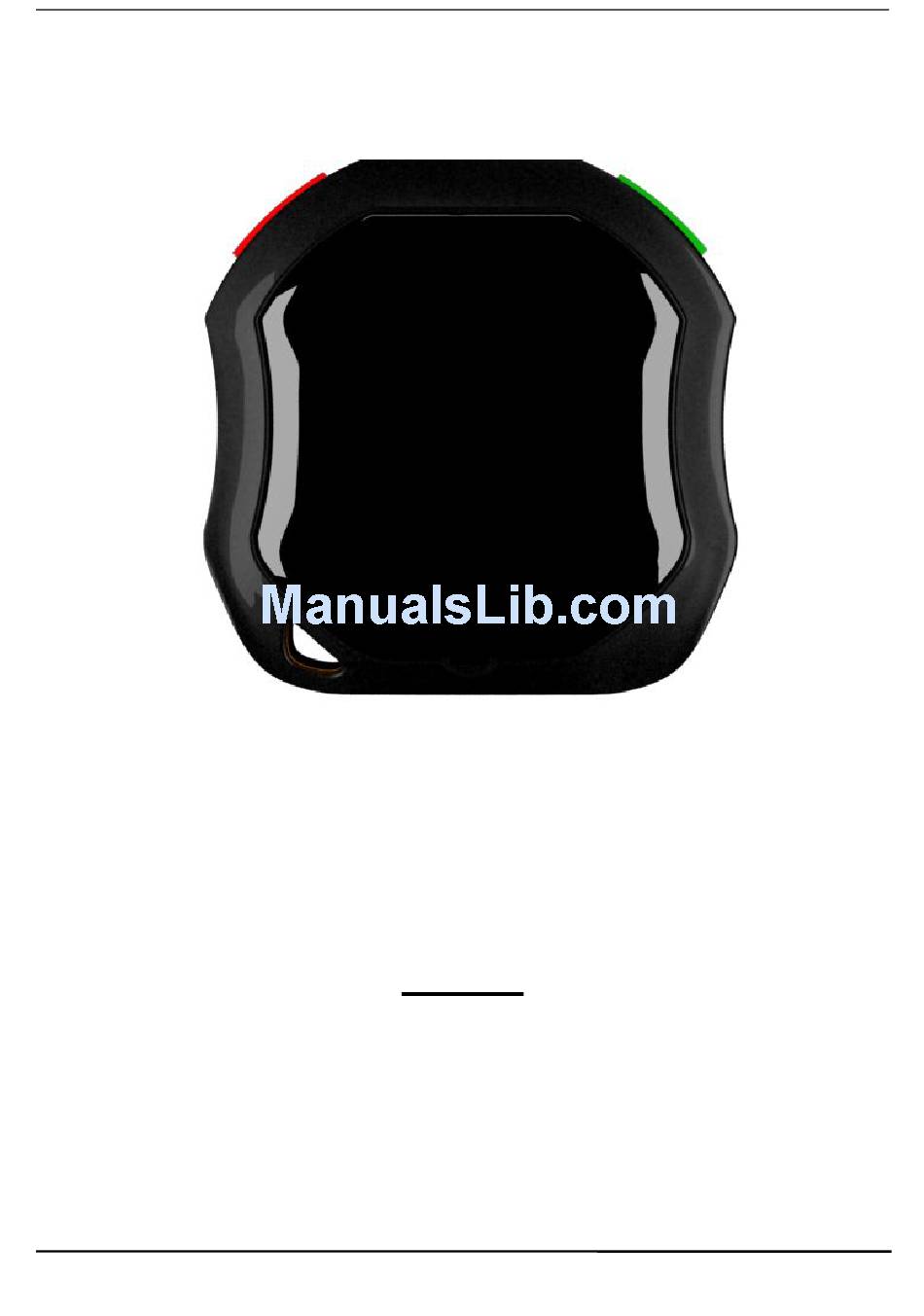

Waterproof Portable GPS Tracker

Preface

Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly.
Make sure to read this manual carefully before using this product. Please note that specification and
information are subject to changes without prior notice in this manual. Any change will be integrated in the
latest release. The manufacturer assumes no responsibility for any errors or omissions in this document.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK109 and is the answer not in the manual?

Questions and answers

Summary of Contents for TKSTAR LK109

  • Page 1 Waterproof Portable GPS Tracker Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual. Any change will be integrated in the latest release.
  • Page 2 1. Summary Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet. The most advanced technology of GPS and AGPS dual positioning. The waterproof level achieve IPX - 6. 2.
  • Page 3 4.Specs. Content Specs. 50mm x 50mm x 15mm Dim. Weight GSM/GPRS Network 850/900/1800/1900Mhz Band UBLOX GPS chip GPS sensitivity -159dBm GPS accuracy Cold status 35-80s Time To First Fix Warm status 35s Hot status 1s 110-220V input Wall charger output Battery Chargeable changeable 3.7V 1000mAh Li-ion battery Standby...
  • Page 4: Sim Card Installation

    5.Usage  Please charge 12hours at first use.  Insert SIM card in right way. Please put the unit outside and make sure the trademark side facing up.  Confirm your SIM card have calling, send SMS, GPRS function.  Confirm your SIM card have enough balance (money). ...
  • Page 5: Commands List

    5.4 commands list(pls note 123456 is the default password) Feature name Active command Reply Cancel command reply Begin(blank Begin123456 Begin ok before set) Admin number Admin123456+s Admin ok Noadmin123456 Noadmin ok pace+number +space+number Sos number Sos123456+spac Sos number ok Nosos123456+sp Nosos number ok e+number ace+number...
  • Page 6: App Download

    Shock call alarm vibcall123456 Shock call alarm Shock sms alarm vibsms123456 Shock sms alarm Move Move123456+sp Move ok Nomove123456 Nomove ok alarm(distance:1 ace+distance 00-5000m) Overspeed Speed123456+sp Speed ok Nospeed123456 Nospeed ok alarm(50-120km/ ace+largeest speed Set a geo-fence stockade+123456 stockade ok nostockade12345 Nostockade ok (stockade)
  • Page 7: Faults & The Solutions

    7. Faults & The solutions Faults Solution Startup Fail Check the battery and see if it is fully charged or correctly installed. Hang up Fail In existence of an authorized number, an unauthorized number dials up the unit. Please initialize the unit and re-set up the authorized numbers.
