Summary of Contents for TYROLIT Hydrostress WSE1217P
Page 1

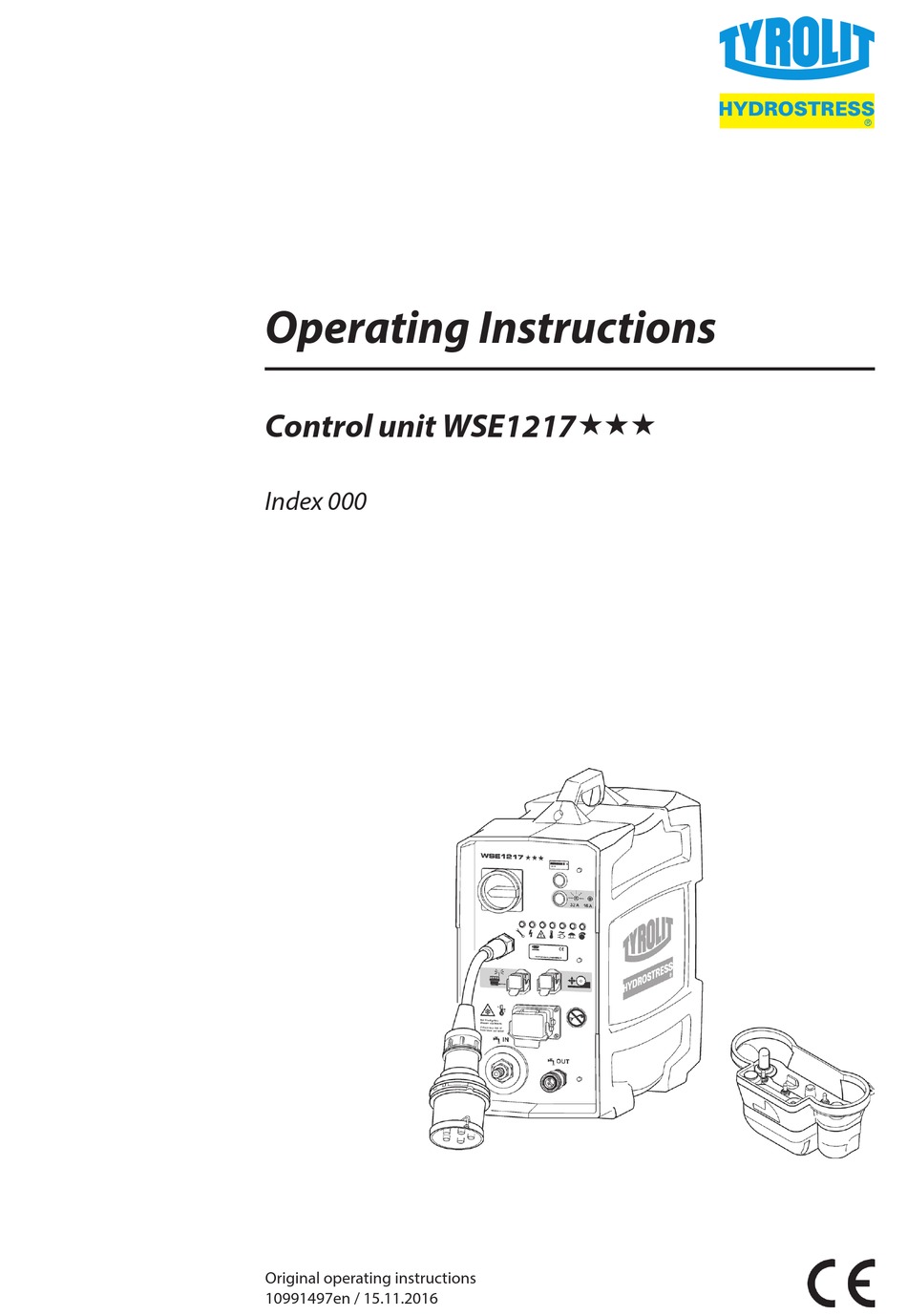

Operating Instructions Control unit WSE1217 Index 000 Original operating instructions 10991497en / 15.11.2016...
Page 2
Any repair work must be carried out by trained personnel only. Our after sales service is available to help ensure that your TYROLIT Hydrostress units remain in perfect working order.
TYROLIT Hydrostress AG Safety DANGER Failure to comply with the safety instructions in the «Safety Manuals / System Handbooks» may result in serious injuries or even death. X Make sure that the «Safety Manuals / System Descriptions» for the relevant type of saw have been fully read and understood.
Page 4

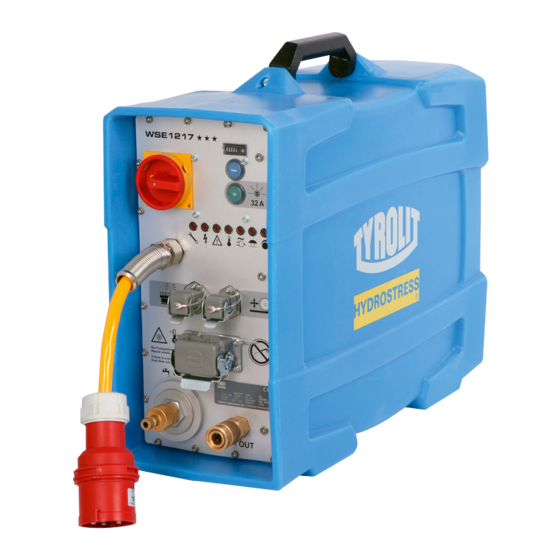

TYROLIT Hydrostress AG Description Main components control unit Main components control unit 1 Operating hours counter Water connection / water outlet 2 Main switch Main motor connection 3 Feed motor connection Name plate 4 Remote controller connection 10 Indicator lights...
TYROLIT Hydrostress AG Remote controller The remote controller can be replaced by an accumulator or a battery operated radio remote controller. Additionally the remote controller can be operated using a cable. Radio remote control The transmitter and receiver are a pair of matched units. They cannot be used with other devices.
Page 6
TYROLIT Hydrostress AG Accessories Remote control The battery charger is exclusively for recharging the interchangeable rechargeable battery. The battery holder and the cable insert must not be inserted. Accessories 1 2x Interchangeable rechargeable batteries No. 10984306 2 Rechargeable battery charger No.
Page 7
TYROLIT Hydrostress AG Connections Making remote control and motor connections 9 The control unit is isolated from the power supply 9 Connectors/plugs are clean 9 Cables are undamaged Making the mains connection and water supply 9 The power supply is earthed and fitted with a residual current operated protective device (FI Typ B;...
7 On / Off Main motor The control unit WSE1217 can also be used for wire sawing and core drilling with suitable TYROLIT Hydrostress system components. Wire sawing: To change to the control unit WSE1217 wire sawing mode the rotary switch (9) (diameter selector switch) is turned to the symbol wire sawing.
Page 9
TYROLIT Hydrostress AG Starting the control unit WSE1217 CAUTION The control unit WSE1217 can be damaged if it slips or overturns! X Make sure that the control unit WSE1217 stands horizontally (handle at top). 9 Control unit WSE1217 is connected to the mains and the water supply.
Page 10
TYROLIT Hydrostress AG 4.2.1 Remote control frequency change Remote control frequency change The remote control systems are equipped with a frequency generator for frequency selection. If the systems malfunction or the radio link is interrupted (another transmitter, range, empty battery), the systems immediately go into EMERGENCY OFF mode.
TYROLIT Hydrostress AG Select mains network The control unit WSE1217 is preset for a 32 A power supply network. (32A Button lights up). It is possible to switch over to a 16 A power supply network. The system automatically re- turns to the 32 A settings when it is restarted.
TYROLIT Hydrostress AG Power control The main motor and the feed motor power are controlled via the potentiometers. Power control Feed motor potentiometer (6) Main motor potentiometer (8) Adjusting the feed The feed movements are selected with the joystick. Adjusting the feed During the cutting process the feed speed is automatically assisted by a feed facility.
Page 13
TYROLIT Hydrostress AG 4.7.1 Manually adjusting the feed speed 9 Control unit WSE1217 has been started X Select the required feed speed via the feed potentiometer (6). 4.7.2 Feed stop So that the joystick does not have to be held in position during the travel feed motion the travel feed can be locked.
Page 14
TYROLIT Hydrostress AG 4.10 Deactivating EMERGENCY STOP If the EMERGENCY STOP is activated on the radio remote controller, the radio and battery light (8) flash. Deactivating EMERGENCY STOP The following controls must be moved the 0 position: Feed potentiometer (6).
Page 15
TYROLIT Hydrostress AG Responding to displays Symbols on the control unit / remote controller Symbols on the control unit Symbols on the remote controller 1 Service Radio and battery remote control 2 Fault within the control unit Cooling water 3 Control unit external fault...
Page 16
Symbol Response Possible cause Action Lights up red After the first 100 operating Carried out only by TYROLIT Hydrostress AG hours, then after every 200 op- or an authorised representative erating hours. Lights up red Fault: The control unit will not start.
Page 17
TYROLIT Hydrostress AG Power and error displays on the remote controller Symbol Response Possible cause Action Flashes red Rechargeable battery voltage X Recharge rechargeable battery. too low Flashes rapidly No radio connection X Switch on the control unit. green The EMERGENCY STOP has been X Defective receiver.
TYROLIT Hydrostress AG Servicing and maintenance Maintenance and servicing table Electrical system X Check the condition and cleanliness of electric cables, plugs/connectors and switches. X Check the condition and cleanliness of connections. Water supply X Check water lines for cleanliness and leaks.
Page 19
X Make sure that the control unit voltage and frequency the control unit is running Defective main motor match the mains supply specifications. X Contact TYROLIT Hydrostress AG customer service. The control unit suddenly Over or under voltage X Check the power supply. Refer to fault indicator.
Page 20
X Make sure that the water pressure is at least 2 bar. Water filter is blocked X Remove filter and clean X Contact TYROLIT Hydrostress AG customer service. Switch for the radio remote controller X Contact TYROLIT Hydrostress AG customer service.
TYROLIT Hydrostress AG Technical data Dimensions Technical data Parameter Value Type Frequency converter Weight 22 kg Control unit WSE1217 incl. remote controller Remote controller separate 2 kg Protection class IP 65 Connection values 380 to 420 VAC / 50 Hz / 60 Hz...
TYROLIT Hydrostress AG EU Declaration of Conformity Description Control unit Type designation WSE1217 We declare under our sole responsibility that this product complies with the following direc- tives and standards: Applied directives 2006/42/EG 2014/30/EU 2012/19/EU 1999/5/EG Applied standards EN 15027 : 2007 + A1 : 2009...
