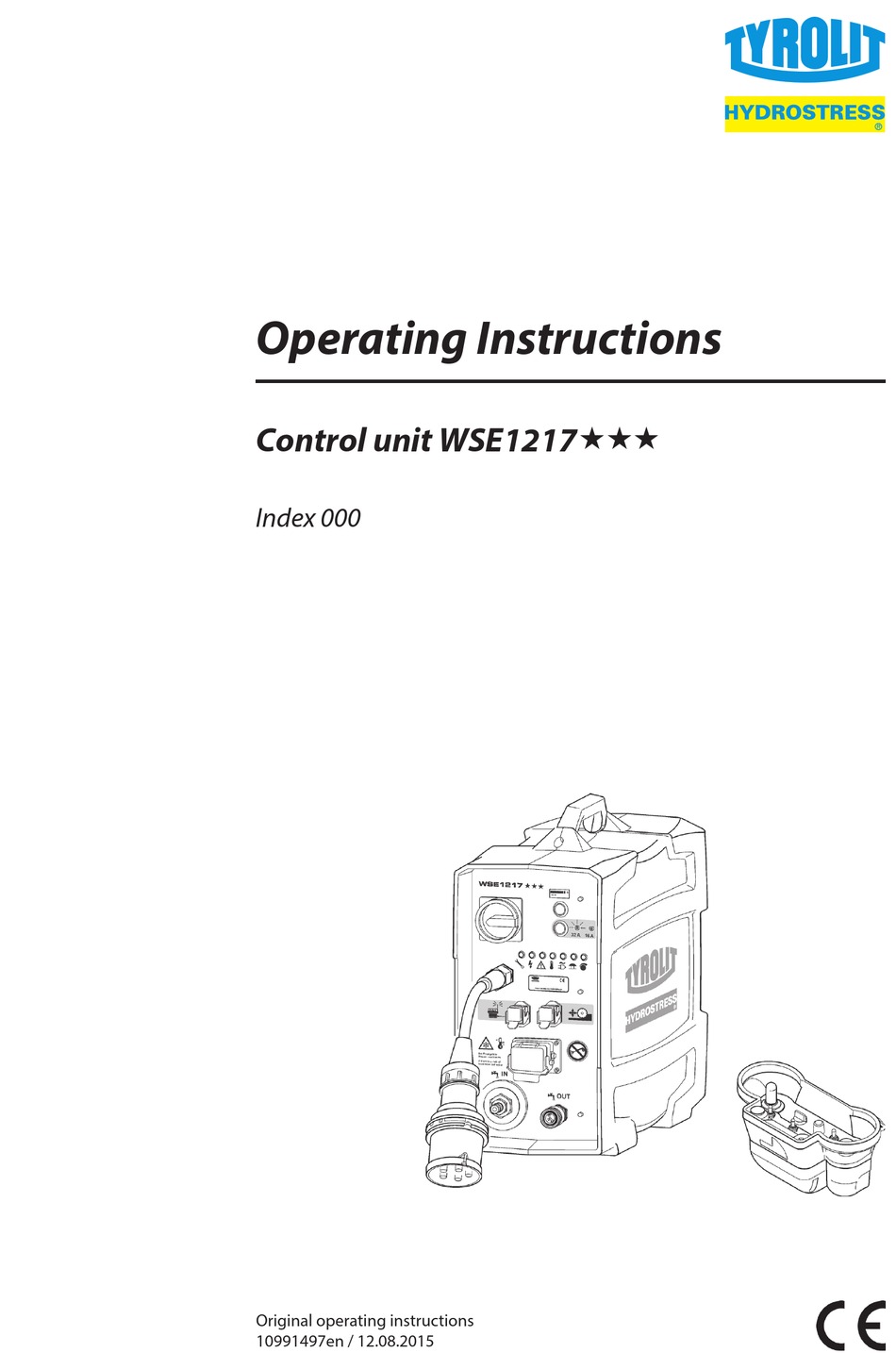

- Page 1 Operating Instructions Control unit WSE1217 Index 000 Original operating instructions 10991497en / 12.08.2015...
- Page 2 Any repair work must be carried out by trained personnel only. Our after sales service is available to help ensure that your TYROLIT Hydrostress units remain in perfect working order.
-
Page 3: In Case Of Emergency

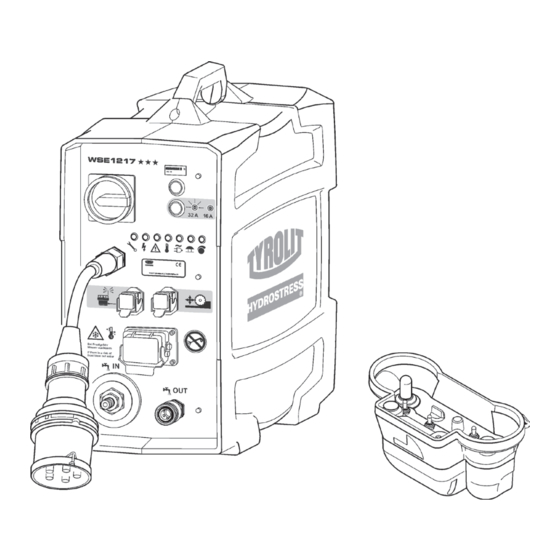

X Ensure that the EMERGENCY STOP button can be reached quickly. Electric shock from live cables and connectors. X Switch off the control unit WSE1217 before connecting or disconnecting cables. X Ensure that the power supply is earthed and fitted with a residual current operated protec- tive device (FI Typ B) with a maximum residual current of 30mA. - Page 4 TYROLIT Hydrostress AG Description Main components control unit Main components control unit 1 Operating hours counter Water connection / water outlet 2 Main switch Main motor connection 3 Feed motor connection Name plate 4 Remote controller connection 10 Indicator lights...
-
Page 5: Remote Controller
The cable insert included in the scope of supply allows connection of the remote controller to the control unit WSE1217. The cable length is 10 m. Cable operation makes it possible to work in areas where radio operation is not allowed (e.g. hospitals).. - Page 6 TYROLIT Hydrostress AG Accessories Remote control The battery charger is exclusively for recharging the interchangeable rechargeable battery. The battery holder and the cable insert must not be inserted. Accessories 1 2x Interchangeable rechargeable batteries No. 10984306 2 Rechargeable battery charger No.
- Page 7 TYROLIT Hydrostress AG Connections Making remote control and motor connections 9 The control unit is isolated from the power supply 9 Connectors/plugs are clean 9 Cables are undamaged Making the mains connection and water supply 9 The power supply is earthed and fitted with a residual current operated protective device (FI Typ B;...
-
Page 8: Operation
6 Feed potentiometer 13 Mains system selection button 7 On / Off Main motor The control unit WSE1217 can also be used for wire sawing and core drilling with suitable TYROLIT Hydrostress system components. Wire sawing: To change to the control unit WSE1217 wire sawing mode the rotary switch (9) (diameter selector switch) is turned to the symbol wire sawing. - Page 9 CAUTION The control unit WSE1217 can be damaged if it slips or overturns! X Make sure that the control unit WSE1217 stands horizontally (handle at top). 9 Control unit WSE1217 is connected to the mains and the water supply. 9 The sawing machine is connected to the control unit WSE1217.
- Page 10 TYROLIT Hydrostress AG 4.2.1 Remote control frequency change Remote control frequency change The remote control systems are equipped with a frequency generator for frequency selection. If the systems malfunction or the radio link is interrupted (another transmitter, range, empty battery), the systems immediately go into EMERGENCY OFF mode.
-
Page 11: Tool Soft Start
Resetting must take place directly after switching on the control unit WSE1217. Tool soft start The control unit WSE1217 offers the possibility for a tool soft start. The soft start is particu- larly applicable in the case of diamond wire saws. -
Page 12: Power Control
TYROLIT Hydrostress AG Power control The main motor and the feed motor power are controlled via the potentiometers. Power control Feed motor potentiometer (6) Main motor potentiometer (8) Adjusting the feed The feed movements are selected with the joystick. Adjusting the feed During the cutting process the feed speed is automatically assisted by a feed facility. - Page 13 Frost damage to control unit WSE1217! X Blow out any water if there is a risk of frost (see chapter 4.9, Blowing out water). Stop the wall saw WSE1217 only in an emergency using the EMERGENCY STOP function. Blowing out the water 9 Main switch is set to OFF X Disconnect the mains plug.
- Page 14 X Blow out the water from all the lines (blow out pump). X Disconnect electric cable. X Clean the control unit WSE1217, the remote controller and the cable with a damp cloth. Cleaning using high pressure cleaning equipment is not permitted.
- Page 15 TYROLIT Hydrostress AG Responding to displays Symbols on the control unit / remote controller Symbols on the control unit Symbols on the remote controller 1 Service Radio and battery remote control 2 Fault within the control unit Cooling water 3 Control unit external fault...
- Page 16 Symbol Response Possible cause Action Lights up red After the first 100 operating Carried out only by TYROLIT Hydrostress AG hours, then after every 200 op- or an authorised representative erating hours. Lights up red Fault: The control unit will not start.
- Page 17 TYROLIT Hydrostress AG Power and error displays on the remote controller Symbol Response Possible cause Action Flashes red Rechargeable battery voltage X Recharge rechargeable battery. too low Flashes rapidly No radio connection X Switch on the control unit. green The EMERGENCY STOP has been X Defective receiver.
-
Page 18: Servicing And Maintenance
Cleaning using high pressure cleaning equipment is not permitted. Cleaning using high pressure cleaning equipment can damage the control unit and the remote controller. Products containing cleaning agent can damage parts of the control unit WSE1217, the radio remote controller and the cable. Clean water filter... - Page 19 X Make sure that the control unit voltage and frequency the control unit is running Defective main motor match the mains supply specifications. X Contact TYROLIT Hydrostress AG customer service. The control unit suddenly Over or under voltage X Check the power supply. Refer to fault indicator.
- Page 20 X Make sure that the water pressure is at least 2 bar. Water filter is blocked X Remove filter and clean X Contact TYROLIT Hydrostress AG customer service. Switch for the radio remote controller X Contact TYROLIT Hydrostress AG customer service.
-
Page 21: Technical Data
Dimensions Technical data Parameter Value Type Frequency converter Weight 22 kg Control unit WSE1217 incl. remote controller Remote controller separate 2 kg Protection class IP 65 Connection values 380 to 420 VAC / 50 Hz / 60 Hz Type... -
Page 22: Eu Declaration Of Conformity
TYROLIT Hydrostress AG EU Declaration of Conformity Description Control unit Type designation WSE1217 Year of construction 2011 We declare under our sole responsibility that this product complies with the following direc- tives and standards: Applied directives 2006/42/EU of 17th May 2006... -
Page 23: Spare Parts
TYROLIT Hydrostress AG Spare parts Page 23...
