Weights And Dimensions Of Inverter - Epcom EPIG7K Manual

No. Description
①
LED display panel
②
DC input terminals
③
DC switch
④
Communication terminals
Meter communication and
⑤
digital input
⑥
DRM communication
⑦
Ventilation valve
⑧
AC output terminals
⑨
Mounting bracket

2.4 Weights and Dimensions of Inverter

Inverters
2 kW / 2.5 kW / 3 kW
3 kW-D / 3.68 kW / 4 kW / 4.6 kW / 5
kW / 6 kW / 7kW

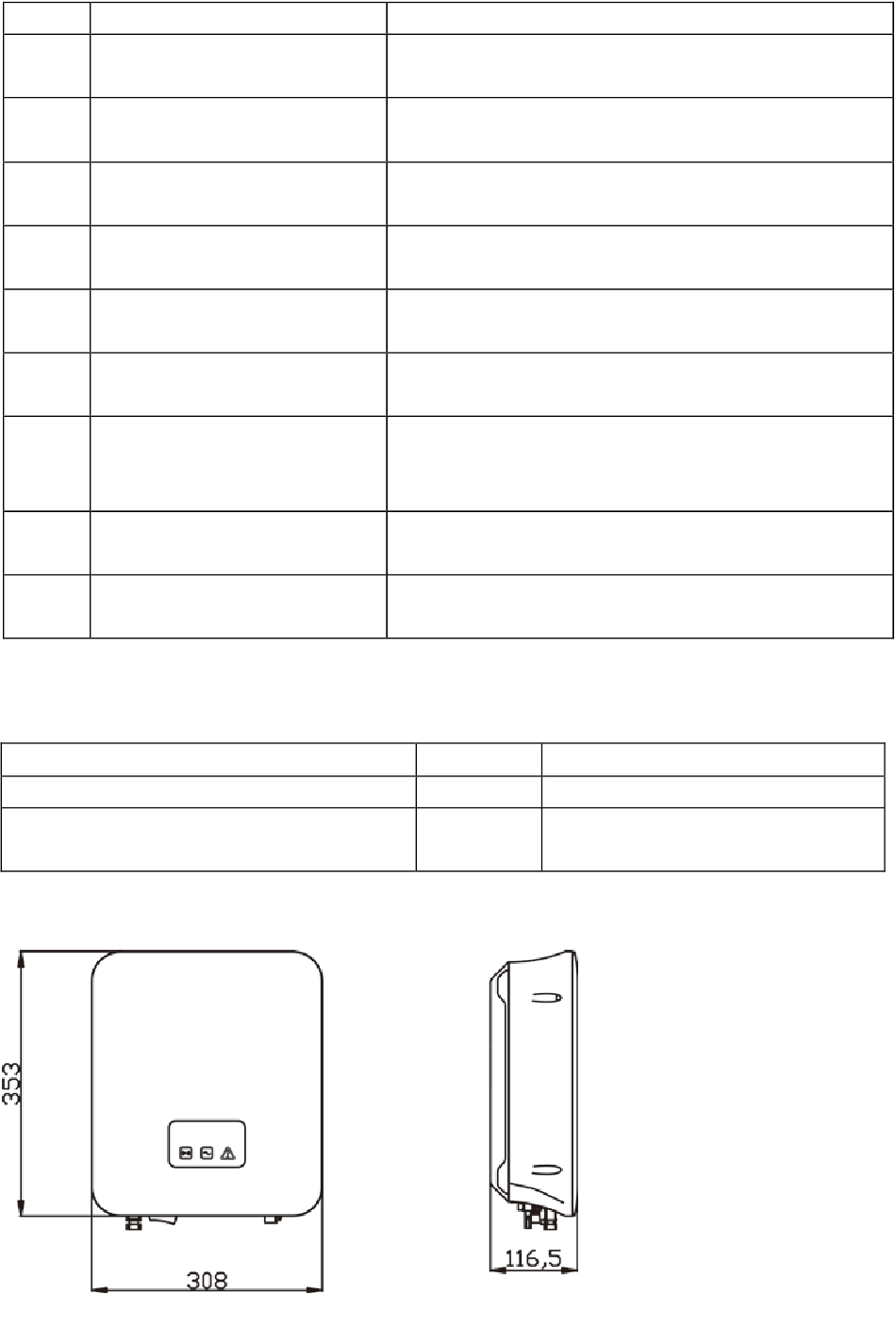

Dimensions of 2 kW / 2.5 kW / 3 kW inverter:
Explanation
To display the inverter running state /
communication status
To connect inverter to PV modules
To directly control DC input On / Off
To connect Wi-Fi or other communication
module
Input interface for electric meter communication
and external digital input
Interface of demand response modes for
Australia grid dispatching
To prevent from condensing and fogging, and
balance differential pressure between inside
and outside the cabinet
To feed the inverter output energy into the grid
To fix the inverter on the wall mounting bracket
Weight Dimensions (W×D×H)
< 9 kg 308 mm × 116.5 mm × 353 mm
< 11.5 kg 370 mm ×126.5 mm × 420 mm
