5.2 Electrical Connection Diagram

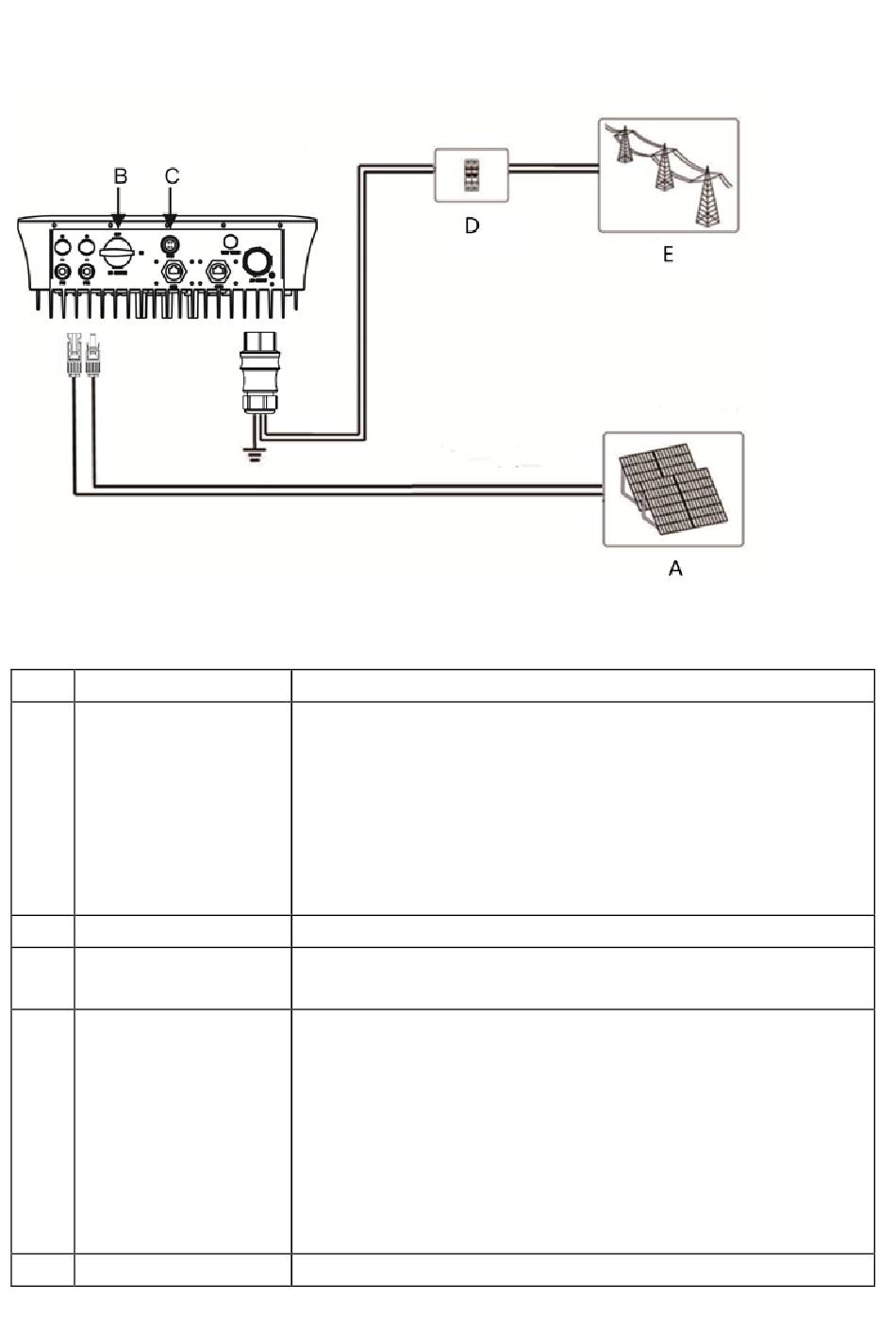

Electrical connection of the inverter includes connection on the DC side, connection on
the AC side, communication modules connection, second protective earth connection
and connection of anti-backflow meter.
No. Item
A PV arrays
B DC switch
Communication
C
modules
D AC circuit breaker
E Utility grid
Description
2 kW / 2.5 kW / 3 kW inverters are featured with single
MPPT and single string input. 3kW-D / 3.68 kW / 4 kW /
4.6 kW / 5 kW / 6 kW / 7 kW inverters are double MPPT
and two strings input. The maximum allowable
open-circuit voltage of each PV string is 600V, and the
maximum allowable working current of the each string
input terminal is 11 A.
Users can directly control DC input On / Off.
It is used to connect Wi-Fi or other communication
module.
It is used as a protective device during electrical
connection. PE protection cable must be reliably
grounded. It is recommended that 2 kW / 2.5 kW / 3 kW /
3kW-D inverters use AC circuit breakers of 25 A, 3.68
kW / 4 kW / 4.6 kW / 5 kW / 6 kW / 7 kW inverters use
AC circuit breakers of 32 A. Each inverter requires a
separate circuit breaker, and multiple inverters cannot
share the same circuit breaker.
The rated voltage of the power grid is 230 V.
