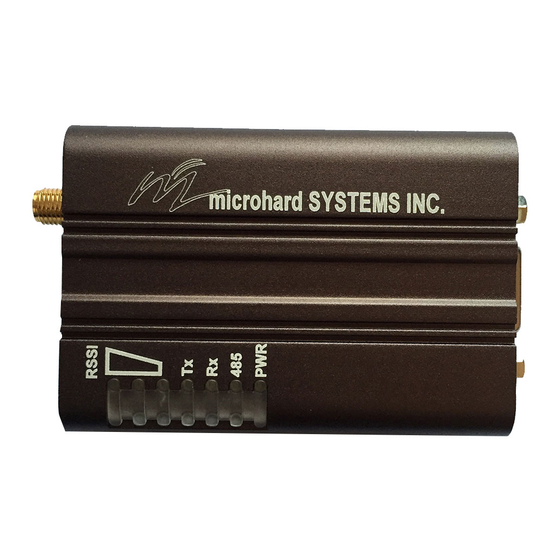

900 mhz spread spectrum oem transceiver
Hide thumbs Also See for P900:

Advertisement

Operating Manual
p900
900 MHz Spread Spectrum OEM Transceiver
,
Revision 0.20
November 14, 2016
Microhard Systems Inc.
www.microhardcorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P900 and is the answer not in the manual?

Questions and answers

Summary of Contents for Microhard Systems P900

  • Page 1 Operating Manual p900 900 MHz Spread Spectrum OEM Transceiver Revision 0.20 November 14, 2016 Microhard Systems Inc. www.microhardcorp.com...
  • Page 2: Warranty

    Warranty Microhard Systems Inc. warrants that each product will be free of defects in material and workmanship for a period of one (1) year for its products. The warranty commences on the date the product is shipped by Microhard Systems Inc. Microhard Systems Inc.’s sole liability and responsibility under this warranty is to repair or replace any product which is returned to it by the Buyer...
  • Page 3: P900 Regulatory Requirements

    WARNING: Changes or modifications not expressly approved by Microhard Systems Inc. could void the user’s authority to operate the equipment. This device has been tested with MCX and Reverse Polarity SMA connectors with the antennas listed in Appendix A When integrated in OEM products, fixed antennas require installation preventing end-users from replacing them with non-approved antennas.
  • Page 4: Table Of Contents

    Contents Warranty ..................................ii Warranty Diclaims ................................ ii Indemnification ................................ii Proprietary Rights ................................. ii p900 Regulatory Requirements ........................... iii CONTENTS ................................IV GENERAL ................................1 ................................ 1 RODUCT VERVIEW ..............................2 UTPUT OWER EVEL INSTALLATION ..............................3 ..................................3 VERVIEW ............................
  • Page 5: General

     ease of installation and use – the p900 module uses a subset of standard AT style commands, very similar to those used by traditional telephone line modems.
  • Page 6: Output Power Level

    While the typical application for the p900 is to provide a short- to mid- range wireless communications link between DTEs, it can be adapted to almost any situation where an asynchronous serial interface is used and data intercommunication is required.
  • Page 7: Installation

    3. Installation 3.0 Overview The p900 complies with FCC part 15 at the modular level for operation in the license-free 902-928 MHz ISM band. This chapter provides guidelines for installing and deploying equipment which incorporates the p900 module. 3.1 Estimating the Gain Margin...
  • Page 8 Figure 1 Gain Calculation The power level has been set to 30dBm (1W) on the transmitter, and the receiver sensitivity for the p900 is -108dBm. System gain would be calculated to be: 30 - 2 + 6 + 3 - 2 + 108 = 143 dB.
  • Page 9: Antennas And Cabling

    -95dBm. 3.2 Antennas and Cabling This section describes the recommended procedure for installing cabling and antennas for use with the p900 module. 3.2.1 Internal Cabling The most common method for installing the module is to run a cable from the module’s MCX connector to a reverse TNC bulkhead connector on the...
  • Page 10: Installing External Cables, Antennas And Lightning Arrestors

    Direct human contact with the antenna is potentially unhealthy when the requirements for mobile p900 is generating RF energy. Always ensure that the p900 equipment is transmitting devices, a separation powered down during installation. At all times a distance of 35 cm must be...
  • Page 11 See appendix A for a list of approved antennas that can be used with Be careful with dBi vs dBd gains the p900 radio modem. If you require another type of antenna please on antenna specifications. contact Microhard Systems Inc. The p900 CANNOT be used with any Antenna manufactures may not antenna that does not appear in Appendix A.
  • Page 12 36dBm with respect to the isotropic radiator. Example 1) What is the maximum power the p900 can be set to comply with FCC and IC given the following equipment given a Rubber Ducky Ant Gain 2dBi and no cable or connectors in the system? Max EIRP 36dBm Max TX power = EIRP –...
  • Page 13 6dBd, 900 MHz Omni Directional Antenna Bluewave, RPTNC Pigtail WARNING: Changes or modifications not expressly approved by Microhard Systems Inc. could void the user’s authority to operate the equipment. This device has been tested with MMCX connectors with the antennas listed in Appendix A When integrated in OEM products, fixed antennas require installation preventing end-users from replacing them with non- approved antennas.
