Selecting the aspect ratio
The 'aspect ratio' is the ratio of the image width to the image height.
With the advent of digital signal processing, digital display devices like this projector can
dynamically stretch and scale the image output to a different aspect than that of the image
input signal.
To change the projected image ratio (no matter what aspect the source is):
1.
Open the OSD menu and go to the
2.
Press Enter.
3.
Press
/
display requirements.
About the aspect ratio
1.
Auto: Scales an image proportionally to fit the projector's native resolution in its
horizontal width. This is suitable for the incoming image which is neither in 4:3 nor
16:9 and you want to make most use of the screen without altering the image's aspect
ratio.
2.
4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect
ratio. This is most suitable for 4:3 images like computer monitors, standard definition
TV and 4:3 aspect DVD movies, as it displays them without aspect alteration.
3.
16:9: Scales an image so that it is displayed in the center of the screen with a 16:9
aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like
high definition TV, as it displays them without aspect alteration.
4.
16:10: Scales an image so that it is displayed in the center of the screen with a 16:10
aspect ratio. This is most suitable for images which are already in a 16:10 aspect, as it
displays them without aspect alteration.
5.
Panorama: Scales a 4:3 image vertically and horizontally in a non-linear manner so
that it fills the screen.
6.
2.35:1: Scales an image so that it is displayed in the center of the screen with a 2.35:1
aspect ratio without aspect alteration.
7.
Anamorphic: Scales a 2.35:1 aspect image so that it fills the screen.

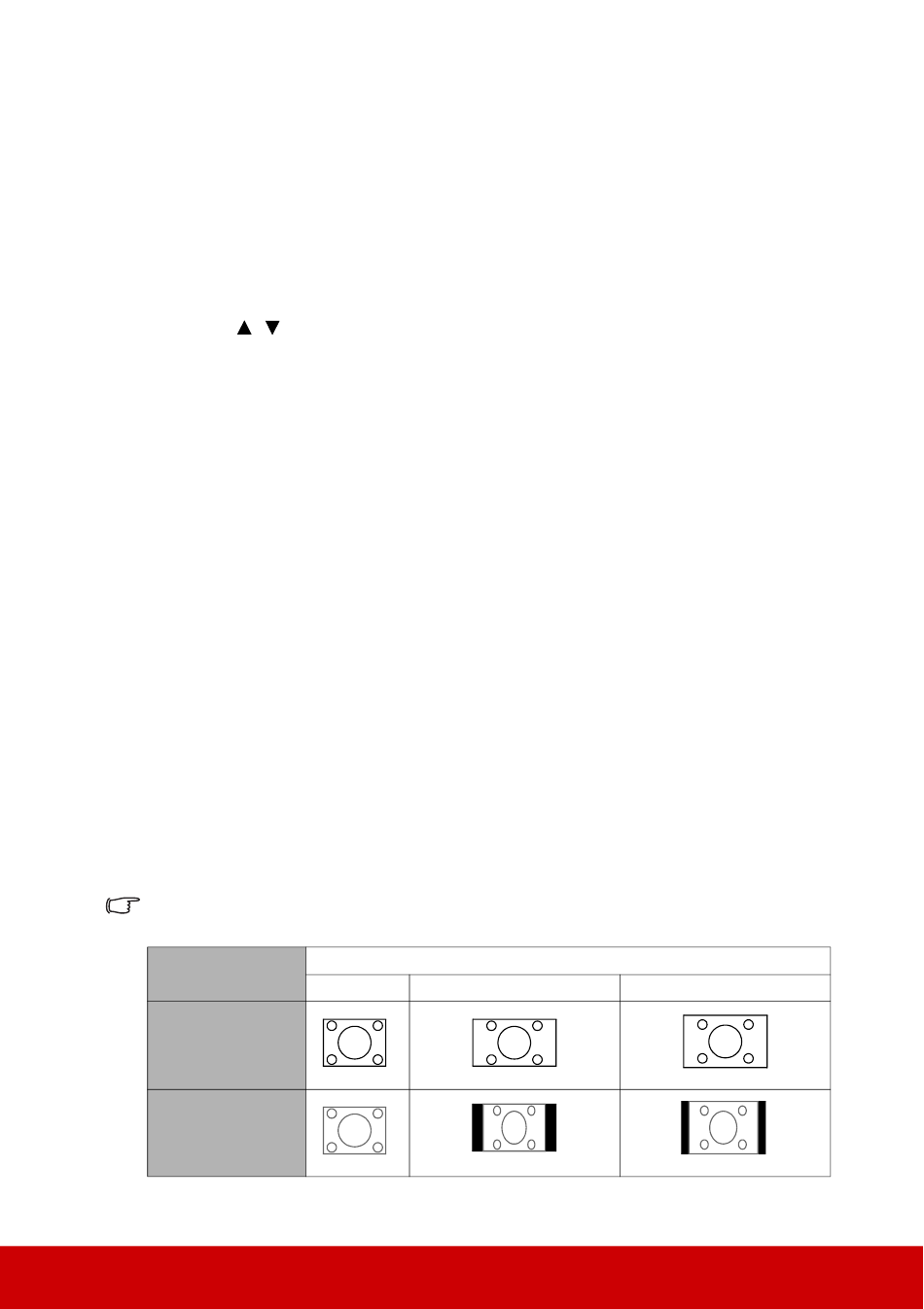

The table below demonstrates the effects of the aspect ratio settings on projectors with
different native resolutions. Please see
display resolution of your projector.
In the pictures below, the black portions are inactive areas and the white portions are active
areas. OSD menus can be displayed on those unused black areas.
Aspect ratio setting
Auto
4:3
DISPLAY >
to select an aspect ratio to suit the format of the video signal and your
"Projector specifications" on page 81
When the native aspect ratio of your projector is...
4:3
32
Aspect Ratio menu.
16:9
for the native
16:10
