Connection
When connecting a signal source to the projector, be sure to:
1.
Turn all equipment off before making any connections.
2.
Use the correct signal cables for each source.
3.
Ensure the cables are firmly inserted.
In the connections shown below, some cables may not be included with the projector (see
"Shipping contents" on page
The connection illustrations below are for reference only. The connecting jacks available on
the projector vary with each projector model.
For detailed connection methods, see pages 19-21.

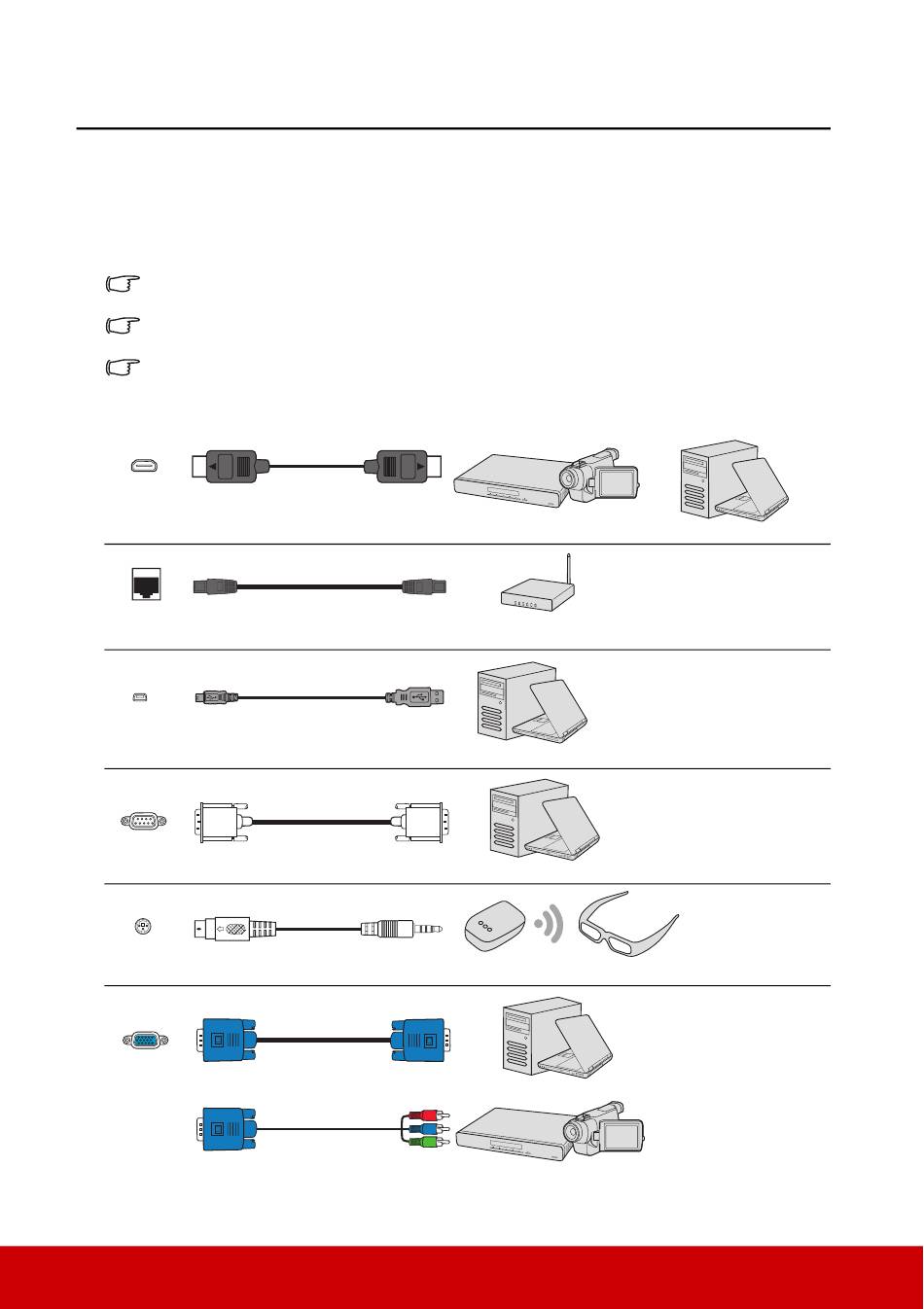

Below is the connection method for each connector that you may find on your projector.
HDMI
connector
LAN
connector
Mini USB
socket
RS232
3D
VESA
Computer
In
Component Video to VGA
(D-Sub) adapter cable
4). They are commercially available from electronics stores.
HDMI cable
RJ45 cable
USB cable
RS232 cable
3D emitter cable
VGA cable
or
A/V device
Internet
Computer
Computer
3D glasses
Computer
A/V device
17
or
Computer
