Summary of Contents for Dickson PW470

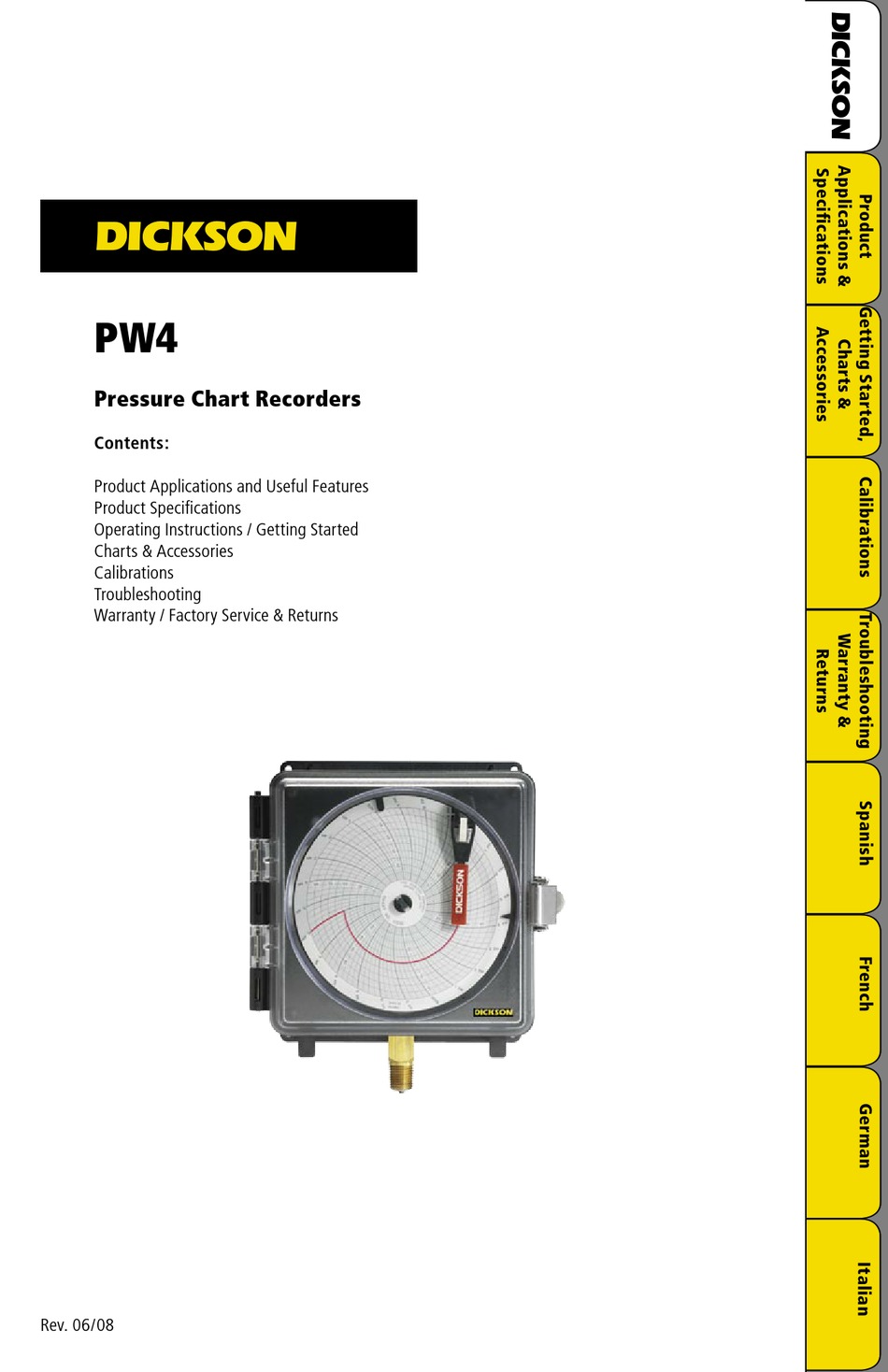

- Page 1 DICKSON Pressure Chart Recorders Contents: Product Applications and Useful Features Product Specifications Operating Instructions / Getting Started Charts & Accessories Calibrations Troubleshooting Warranty / Factory Service & Returns Rev. 06/08...
- Page 2 Place these portable pressure recorders anywhere a written record of pressure is needed. You don’t even need to be present to monitor the results. Please keep in mind that Dickson pressure recorders are NOT suit- able for monitoring ammonia, acids, salt water or other corrosive substances.
- Page 3 When installing recorders (1/4” male NPT pressure connection) always tighten the fitting instead of twisting the instrument case. Use a 5/8” wrench. We recommend wrapping the pressure fitting with pipe tape before installing to prevent leaks. Dickson does not recommend using pipe dope as it may clog the capillary.
- Page 4 (a high, medium, and low) on new units only. The Importance and Benefits of Regular Calibrations Once you begin to use your precision Dickson instrumentation, regular calibrations are necessary to ensure accurate readings. The following Calibration Services are available: •...
- Page 5 Dickson shall not be liable for consequential or incidental damages resulting from failure or malfunction of its products. Dickson makes no warranty for products not manufactured by it or for any products modified by buyer, or subject to misuse or neglect.
- Page 6 (El modelo PR4-10 NO incluye interruptor de conexión/desconexión). La garantía Dickson Garantía: Dickson garantiza que el PW4 no presentará defectos de material y de mano de obra en el uso y servicio normales durante un periodo de doce meses posteriores a la entrega.
- Page 7 (Le modèle PR4-10 ne comprend pas de commutateur On/Off.) La garantie Dickson Garantie: Dickson garantit que la ligne PW4 d’instruments sera sans défauts en matériel et en fabrication sous un usage normal et sera sous service pour une période de douze mois après la livraison.
- Page 8 Türinnenseite auf der Wählscheibe. (Modell PR4-10 verfügt über KEINEN Ein/Aus- (On/Off) Schalter.) Die Dickson Gewährleistung Gewährleistung: Dickson gewährleistet für die Dauer von 12 Monaten nach der Auslieferung Dienstleistun- gen und dass der/die/das PW4 bei normaler Benutzung frei von Material- und Verarbeitungsmängeln ist.
- Page 9 (Il Modello PR4-10 NON è dotato di interruttore On/Off.) La garanzia Dickson Garanzia: Dickson garantisce che PW4 sarà privo di difetti di materiale e manodopera nelle condizioni normali d’uso e di servizio per il periodo di dodici mesi dalla consegna.
