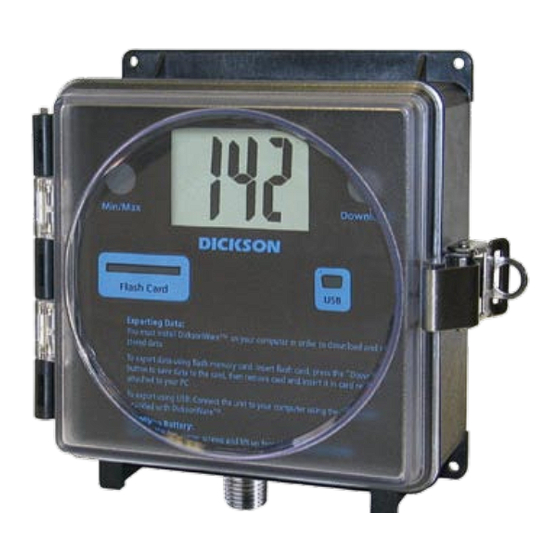

DICKSON
PL100/300/500
Pressure Loggers Operation
Contents:
Product Applications and Useful Features
Operating Instructions / Getting Started
Product Accessories
Warranty / Factory Service & Returns
DICKSON
930 South Westwood Avenue • Addison, Illinois 60101
Phone: (630) 543-3747 • E-mail: DicksonCSR@dicksondata.com
Rev. 10/07
Advertisement
Table of Contents
Related Manuals for Dickson PL100
Summary of Contents for Dickson PL100
-
Page 1: Table Of Contents
DICKSON PL100/300/500 Pressure Loggers Operation Contents: Product Applications and Useful Features Product Specifications Operating Instructions / Getting Started DicksonWare Software Specifications Product Accessories Frequently Asked Questions Calibrations Troubleshooting Warranty / Factory Service & Returns DICKSON 930 South Westwood Avenue • Addison, Illinois 60101 Phone: (630) 543-3747 •... -
Page 2: Product Specifications
Product Applications Dickson’s series of Pressure Data Loggers with Jumbo Display offer all of the key features you’ve been looking for including: Min/Max Display, Super high-speed USB 2.0 Connectivity, One Step Data Transfer using removable SD FLASH memory cards, 1 second sample rate, and much more! All of these features are available in three pressure ranges: 0-100, 0-300 or 0-500 PSI and come in a NEMA 4x water resistant enclosure. - Page 3 Button Functions: Download • Note: This feature is only for use with the Dickson Memory Cards. • Pressing this button will download any data stored in the logger to the removeable memory card. STORE will appear on the display momentarily and the counter will start counting down from 100. DO NOT remove the memory card until STORE is no longer in the display and the unit is displaying current readings.
-
Page 4: Dicksonware Software Specifications
Microsoft Windows® compatible • Allows for simple viewing and zooming of logged data • Easy set-up of Dickson Data Loggers including: • User selectable sample intervals from 10 seconds to 24 hours • Display pressure in PSI, Atm, Bar, Milli bar, in H 2 O, ft. H 2 O, mm H 2 O, mm HG, in Hg, Pascal, Kilo Pascal •... - Page 5 • Fast downloading of logged data - 30 seconds (typical) from full logger • Even shows battery power status for battery operated loggers Specifications: • Compatible With: Microsoft Windows® 98 or better • PC Requirements: PC with 486 MHz or faster microprocessor, 16 MB RAM, 1 USB root hub, CD drive, VGA monitor or better •...
-
Page 6: Frequently Asked Questions
Wrap mode, the Logger will begin to overwrite the oldest data in its memory. Where can I put them? Depending on the Dickson model, just about anywhere. We have waterproof units, stainless steel models, units with probes, and units that handle extreme temperatures. Our wide selection of instruments should fit about any application. - Page 7 (a high, medium, and low) on new units only. N400 - Deluxe A2LA Accredited NIST Traceable Calibration 3-Point: ISO Guide 25/A2LA Documentation of 3 pre-selected points of as found data before and after calibration for Dickson temperature and/or humidity instrumentation on new units only.
-
Page 8: Troubleshooting
Dickson shall not be liable for consequential or incidental damages resulting from failure or malfunction of its products. Dickson makes no warranty for products not manufactured by it or for any products modified by buyer, or subject to misuse or neglect.
