Dickson SC367 Getting Started

Phone: 1-800-757-3747 or 1-630-543-3747 | Fax: 1-630-543-0498 | Email: support@dicksondata.com | Website:DicksonDate.com

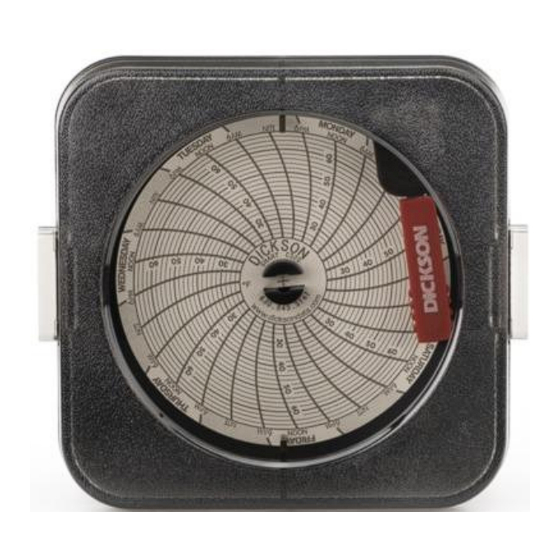

3" (78mm) Temperature Chart Recorder

Product Applications

This manual applies to: SC367/377/386/387/397
The SC3 sets a new standard for compact recorders while providing the accuracy and resolution required for regulatory
compliance and quality control. The reusable SC3 is rugged enough to withstand the rigors of transportation and storage
applications. Best of all, its unbeatable low price makes temperature recording affordable for virtually any application.

Useful Features


Rugged case ideal for transportation and storage applications

F/C Switchable, 24 hour/7 day Switchable

Security slots for recorder security

Special ranges for refrigerators, freezers, incubators and ambient conditions

Optional tamper seals can be used to insure the integrity of the chart

Compact (less than 4" tall/wide) and durable

Operates for up to 2 years on a single "AA" battery

Direct sensing, no remote probe, compact enough to be placed almost anywhere
Getting Started

Place chart on recorder

Set time by inserting a coin into chart hub and turning clockwise until the current hour is referenced to the time index
clip. (Time index clip is directly to the right and below the pen tip).

Remove protective pen cap. The chart movement is self-starting and runs continuously.

Allow unit to stabilize in environment for 15 minutes.

Pen Replacement

Slide the used pen cartridge off and slide the new one on. Typical pen life is one year.
SC3
