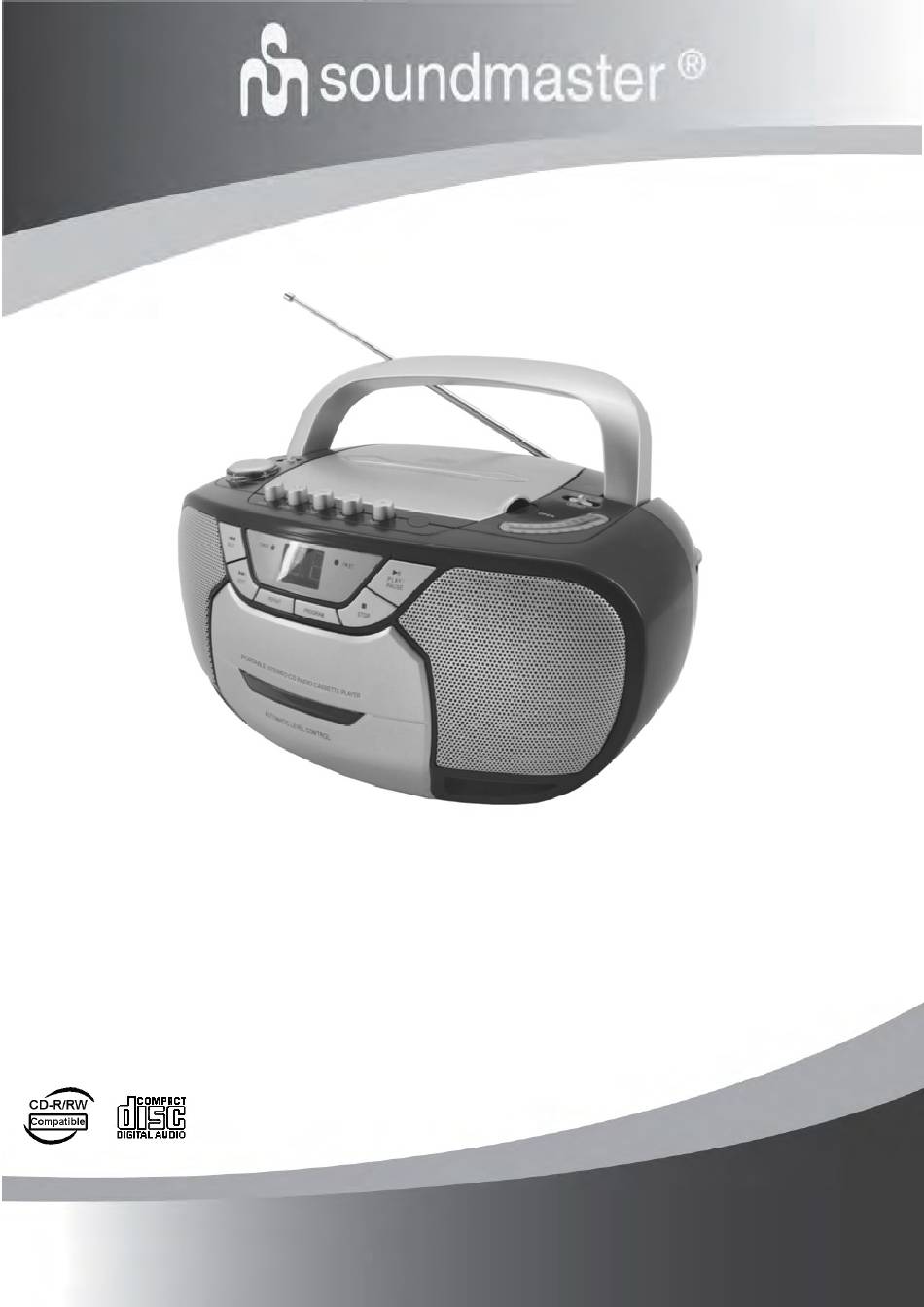

- Page 1 DEUTSCH NEDERLANDS ENGLISH ESPAÑOL FRANÇAIS PORTUGUÊS SCD5701...
- Page 2 WARNING TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING : SHOCK HAZARD-DO NOT OPEN LIGHTNING FLASH WITH ARROWHEAD SYMBOL - EXCLAMATION POINT - within an equilateral triangle, within an equilateral triangle, is intended to alert the is used to indicate that a specific component shall be user to the presence of uninsulated dangerous...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS 1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated. 2. RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference. 3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to. 4. -
Page 4: Power Sources
POWER SOURCES to AC IN to a wall outlet Insert 6 x “C” size batteries into the battery compartment AC POWER You can power your portable system by plugging the detachable AC power cord into the AC inlet at the back of the unit and into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage. -
Page 5: Location Of Control

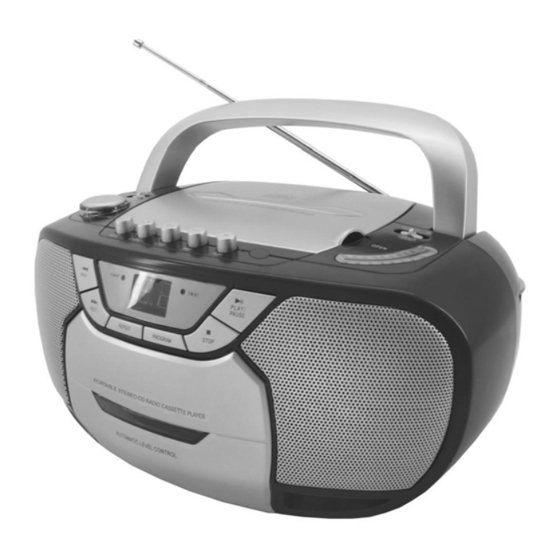

LOCATION OF CONTROL FM ANTENNA TUNING CONTROL CD DOOR FUNCTION BAND SELECTOR SELECTOR VOLUME OPEN / CLOSE CONTROL DIAL POINTER TAPE BUTTONS - PAUSE, STOP / EJECT, FAST FORWARD, REWIND, PLAY LED DISPLAY POWER INDICATOR FM STEREO INDICATOR BACK PLAY / PAUSE NEXT STOP REPEAT... -
Page 6: Radio Operation
RADIO OPERATION GENERAL OPERATION 1. Set the “FUNCTION” selector to “RADIO” mode. 2. Select desired band by using the “BAND” selector. 3. Adjust radio frequency to your desired station by using the “TUNING” control. 4. Adjust the “VOLUME” control to the desired level. FM / FM-STEREO RECEPTION - Set the “BAND”... -
Page 7: Tape Operation
TAPE OPERATION GENERAL OPERATION PAUSE Press to stop playing tape operation temporarily. Press again to resume tape operation. STOP / EJECT Press to stop tape operations. Press again to open the cassette door after the tape spools stop turning. FAST FORWARD &... - Page 8 CD OPERATION GENERAL OPERATION PLAY / PAUSE Press to start playing CD disc. Press again to stop playing CD operation temporarily. Press again to resume playback. NEXT & Press to go to the next track or back to the previous track. BACK Press and hold while playing until you find the point of the sound.
- Page 9 CD OPERATION PROGRAM Up to 20 tracks can be programmed for disc play in any order. Be sure to press the “STOP” button before use. 1. Press the “PROGRAM” button, the display will show “01” and flash. 2. Select desired track by using the “NEXT” or “BACK” button. 3.
