WARNING
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
APPAREIL Á LASER DE CLASSE 1
PRODUCTO LASER DE CLASE 1
This product contains a low power laser device.
Warning: Do not touch the lens.
DO NOT THROW BATTERIES IN FIRE !
PRECAUTIONS
Follow the advice below for safe and appropriate operations.
ON PLACEMENT
Do not use the unit in places which are extremely hot, cold, dusty, or humid.
Place the unit on a flat and even surface.
Do not restrict the air flow of the unit by placing it in a place with poor air flow, by covering it with a cloth,
or by placing it on a carpet.
ON SAFETY
When connecting and disconnecting the AC cord, grip the plug and not the cord itself. Pulling the cord may damage it
and create hazard.
When you are not going to use the unit for a long period of time, disconnect the AC power cord.
ON AC VOLTAGE
Before use, check that the rated voltage of your unit matches your local voltage.
ON CONDENSATION
When left in a heated room where it is warm and damp, water droplets or condensation may form inside the
CD player.
When there is condensation inside the unit, the unit may not function normally.
Let it stand for 1 to 2 hours before turning the power on, or gradually heat the room up and dry the unit before use.
*
Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation.
*
Ensure that the ventilation is not impeded by covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc..
*
Do not place naked flame sources, such as lighted candles on the apparatus.
*
Take attention to the environmental aspects of battery disposal.
*
Use the apparatus only in moderate climates (not in tropical climates).
*
Do not expose the apparatus to dripping or splashing.
*
Do not place objects filled with liquids, such as vases, on the apparatus.
Should any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel.
T h e l i g h t e n i n g f l a s h
with arrowhead symbol
within the triangle is a
warning sign alerting
the user of "dangerous
voltage" inside the unit.
In case of misfunction due to electrostatic discharge the apparatus has to be reset by disconnecting it from mains supply.
THE MARKING PLATE IS LOCATED AT THE BACK OF ENCLOSURE OF THE APPARATUS.
INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCKS
DEFEATED.
AVOID EXPOSURE TO BEAM
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION : To reduce the risk
of electric shock, do not remove the
cover. There are no user serviceable
parts inside the unit. Refer all servicing
to qualified personnel.
CAUTION
The exclamation point within
the triangle is a warning sign
alerting the user of important
instructions accompanying
the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCD5405 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

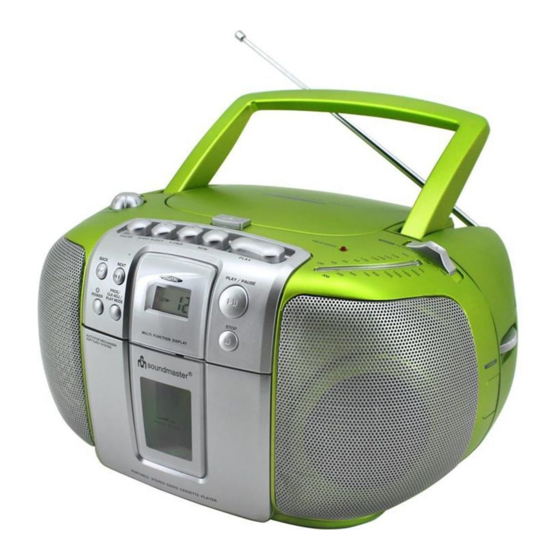

Summary of Contents for SOUNDMASTER SCD5405

  • Page 1 WARNING CLASS 1 LASER PRODUCT CAUTION CLASS 1 LASER PRODUCT INVISIBLE LASER RADIATION APPAREIL Á LASER DE CLASSE 1 WHEN OPEN AND INTERLOCKS PRODUCTO LASER DE CLASE 1 DEFEATED. AVOID EXPOSURE TO BEAM This product contains a low power laser device. Warning: Do not touch the lens. DO NOT THROW BATTERIES IN FIRE ! PRECAUTIONS Follow the advice below for safe and appropriate operations.
  • Page 2: Location Of Controls

    LOCATION OF CONTROLS 1. VOLUME CONTROL TUNING CONTROL 2. FUNCTION SWITCH SPEAKER 3. CARRYING HANDLE CD PLAY / PAUSE BUTTON 4. CASSETTE PAUSE CD STOP BUTTON 5. CASSETTE STOP/EJECT CASSETTE DOOR 6. CASSETTE F.FWD CD NEXT BUTTON 7. CD OPEN BUTTON CD PROG/CLOCK-ADJ/ 8.
  • Page 3: Power Supply

    POWER SUPPLY USING HOUSE CURRENT Before use, check that the rated voltage of your unit matches your local voltage. Note: Plug is used as the disconnect device. To AC socket The disconnect device shall remain readily operable. To AC outlet USING BATTERIES Disconnect the AC power cord from the AC inlet of the When the volume decrease, or the sound distorts, replace unit. Battery power is cut automatically by the cord while all of the batteries with new ones.
  • Page 4: Compact Disc Playback

    LISTENING TO THE RADIO Tune in to a station. Turn on the unit by TUNING pressing the POWER button. POWER Set to RADIO FUNCTION RADIO Adjust the sound. LCD display Select a BAND. BAND MIN. MAX. FM ST. VOLUME FOR BETTER RECEPTION NOTE : 1. FM stereo LED indicator lights if receive FM stereo broardcast and the BAND switch set on "FM STEREO". 2. When too much noise is heard during FM STEREO reception, set BAND switch to FM mono. AFTER LISTENING Turn off the unit by pressing the POWER button.
  • Page 5: Programmed Playback

    TO STOP PLAYBACK TO INTERRUPT PLAYBACK Press the STOP button and the display shows the total Press the Play/Pause button and the symbol tracks of the disc. " " will be flashed. Press the button again to resume playback. CD display TO SKIP TO THE BEGINNING OF A TRACK • Press either one of the skip buttons according to the desired skip direction. • Play/back resumes from the selected track. • When the button is pressed once during play, the previous track starts again. • When the button is pressed once during play, the next track plays.
  • Page 6: Tape Playback

    TAPE PLAYBACK Set to TAPE Press the PLAY button. PLAY FUNCTION TAPE Insert the cassette. TO STOP PLAYBACK Press the STOP / EJECT button. TO INTERRUPT PLAYBACK Press the PAUSE button. To resume play, press the PAUSE button again. TO FAST WIND Press the REWIND or F.FWD button. Press the STOP/ EJECT button to stop winding at the desired position. MAINTENANCE CLEANING THE UNIT CLEANING CD Do not use volatile chemicals on this unit. Clean by lightly If the CD skips or will not play , the disc may need cleaning...
  • Page 7: Cassette Section

    CASSETTE SECTION Track format: 2 track stereo Tape speed: 4.75 cm / sec. F.F. & REW time: 170 sec. (F-60 tapes) Frequency response: 125 Hz - 8000 Hz (Normal tape) CD SECTION Channels: 2 channels S / N ratio: 60 dB Wow & Flutter: undetectable Sampling frequency: 44.1 kHz 8 x over sampling Quantization: 1 bit DA converter Pick up light source: Semi - conductor laser Pick up wave length...
