DC-to-AC Inverter/Chargers
APsX Models Input
Invert:
12 VDC
Charge:
230V, 50 Hz. AC
Quiet Mobile Power
Congratulations! You've purchased the most advanced, feature-rich Inverter/Charger designed as an alternative energy source for residential,
commercial or recreational vehicle applications. Tripp Lite Inverter/Chargers are the quiet alternative to gas generators—with no fumes, fuel or
noise to deal with! You get AC electricity anywhere and anytime you need it: utility power disruptions, rolling down the highway, dry camping
in majestic back country or parked overnight at a money-saving non-electric site. Inverter/Chargers provide your equipment with utility- or
generator-supplied AC electricity (filtered through premium ISOBAR® surge protection) whenever available. In addition, your Inverter/Charger
automatically recharges your connected battery bank. Whenever blackouts, brownouts or high voltages occur, your Inverter/Charger immedi-
ately and automatically switches to battery power.
Better for Your Equipment
Better for Your Batteries
Better for You
Safety
Feature Identification
Operation
Configuration
Battery Selection
Mounting
Battery Connection
Owner's Manual
PowerVerter
Output
APs Models
Invert:
230V, 50 Hz. AC
12 VDC
Charge:
2
3
4-5
5-6
7
8
9
* Inverter/Chargers are moisture-resistant, not waterproof.
Copyright © 2008. All rights reserved. PowerVerter
®
Input
Output
12 VDC
120V, 60 Hz. AC
120V, 60 Hz. AC
12 VDC
Premium Protection Levels
• Built-In ISOBAR
• Automatic Overload Protection
Ideal Output for All Loads
• Frequency-Controlled Output
• Automatic Load Switching
• Balanced Load Sharing
Faster Battery Recharge
• High-Amp, 3-Stage Battery Charger
Critical Battery Protection
• High-Efficiency DC-to-AC Inversion
Quiet, Simple, Maintenance-Free Operation
• Multi-Function Lights & Switches
• Moisture-Resistant Construction*
Contents
AC Input/Output Connection
Service/Maintenance
Troubleshooting
Warranty
Español
Français
Py
ññêèé
is a registered trademark of Tripp Lite.
®
1111 W. 35th Street, Chicago, IL 60609 USA
Customer Support: (773) 869-1234
Surge Protection
®
www.tripplite.com
10
10
11
11
12
23
34

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerVerter 200812163 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tripp Lite PowerVerter 200812163

Summary of Contents for Tripp Lite PowerVerter 200812163

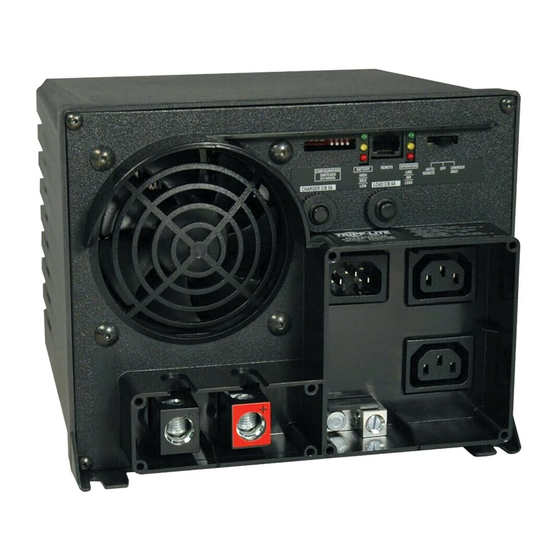

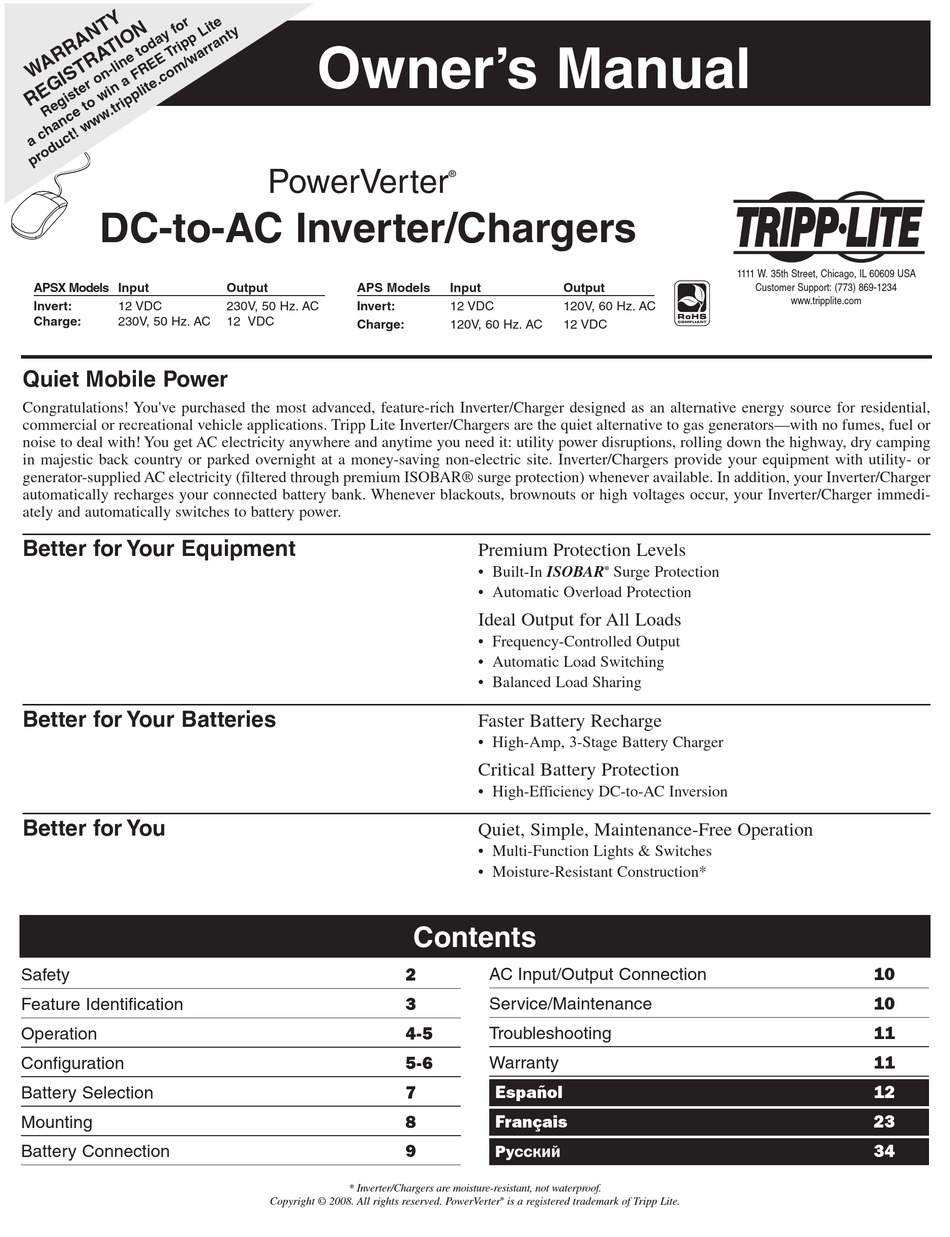

  • Page 1 Congratulations! You've purchased the most advanced, feature-rich Inverter/Charger designed as an alternative energy source for residential, commercial or recreational vehicle applications. Tripp Lite Inverter/Chargers are the quiet alternative to gas generators—with no fumes, fuel or noise to deal with! You get AC electricity anywhere and anytime you need it: utility power disruptions, rolling down the highway, dry camping in majestic back country or parked overnight at a money-saving non-electric site.

  • Page 2: Safety

    Important safety Instructions sAVE tHEsE InstrUCtIOns! This manual contains important instructions and warnings that should be followed during the installation, operation and storage of this product. Location Warnings • Although your Inverter/Charger is moisture resistant, it is NOT waterproof. Flooding the unit with water will cause it to short circuit and could cause personal injury due to electric shock.

  • Page 3: Feature Identification

    See Operation sec- tion for resetting instructions. Remote Control Module Connector: allows remote monitoring and control with an optional module (Tripp Lite model APSRM4, sold separately). See remote module owner’s manual for con- nection instructions.

  • Page 4: Operation

    “AUTO/REMOTE” also enables an option- al remote control module (Tripp Lite model APSRM4, sold sepa- rately) to function when connected to the unit. “CHARGE ONLY”: Switch to this mode when you...

  • Page 5: Configuration

    Operation (continued) resetting Your Inverter/Charger to restore AC Power Your Inverter/Charger may cease supplying AC power or DC charging power in order to protect itself from overload or to protect your electrical system. To restore normal functioning: Overload Reset: Switch operating mode switch to “DC OFF” and remove some of the connected electrical load (i.e., turn off some of the AC devices drawing power which may have caused the overload of the unit).

  • Page 6: Configuration

    Connect Remote Control—OPTIONAL All models feature an 8-conductor telephone style receptacle on the front panel for use with an optional remote control module (Tripp Lite model APSRM, sold separately). The remote module allows the Inverter/Charger to be mounted in a compartment or cabinet out of sight, while operated conveniently from the remote control module.

  • Page 7: Battery Selection

    NOTE! For Tripp Lite Inverter/Chargers providing 1250 watts or less of continuous AC power, a full-size battery will normally allow sufficient power for many applications before recharging is necessary. For mobile applications, if a single battery is continuously fed by an alternator at high idle or faster, then recharging from utility or generator power may not be necessary. For Tripp Lite Inverter/ Chargers over 1250 watts used in mobile applications, Tripp Lite recommends you use at least two batteries, if possible fed by a heavy-duty alternator anytime the vehicle is running.

  • Page 8: Mounting

    Inverter/Charger and connected systems. Tripp Lite manufactures a variety of different Inverter/Chargers with a variety of different mounting options for use in vehicular or non-vehicular applications. Tripp Lite recommends permanent mounting of your Inverter/Charger in any of the configurations illustrated below. User must supply mounting hardware and is responsible for determining if the hardware and mounting surface are suitable to support the weight of the Inverter/Charger.

  • Page 9: Battery Connection

    Battery Connection Connect your Inverter/Charger to your batteries using the following procedures: • Connect DC Wiring: Though your Inverter/Charger is a high-efficiency converter of electricity, its rated output capacity is limited by the length and gauge of the cabling running from the battery to the unit. Use the shortest length and largest diameter cabling (maximum 2/0 gauge) to fit your Inverter/Charger’s DC Input terminals.

  • Page 10: Ac Input/Output Connection

    Also, check that the circuit breaker(s) are not tripped.* 2.) If the problem continues, do not contact or return the Inverter/Charger to the dealer. Instead, call Tripp Lite at (773) 869-1234. A service technician will ask for the Inverter/Charger’s model number, serial number and purchase date and will attempt to correct the problem over...

  • Page 11: Troubleshooting

    EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, Tripp Lite is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equip- ment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
  • Page 12 1111 W. 35th Street, Chicago, IL 60609 USA 773.869.1234 (USA) • 773.869.1212 (International) www.tripplite.com 200812163 93-2803_EN...
